Trunking cover, sheet steel, 100 mm

Item no. 6286930 | EAN 4012195381341

6286930 / GS-OTRW 100
100 mm
Pure white; RAL 9010
Product description
Product description

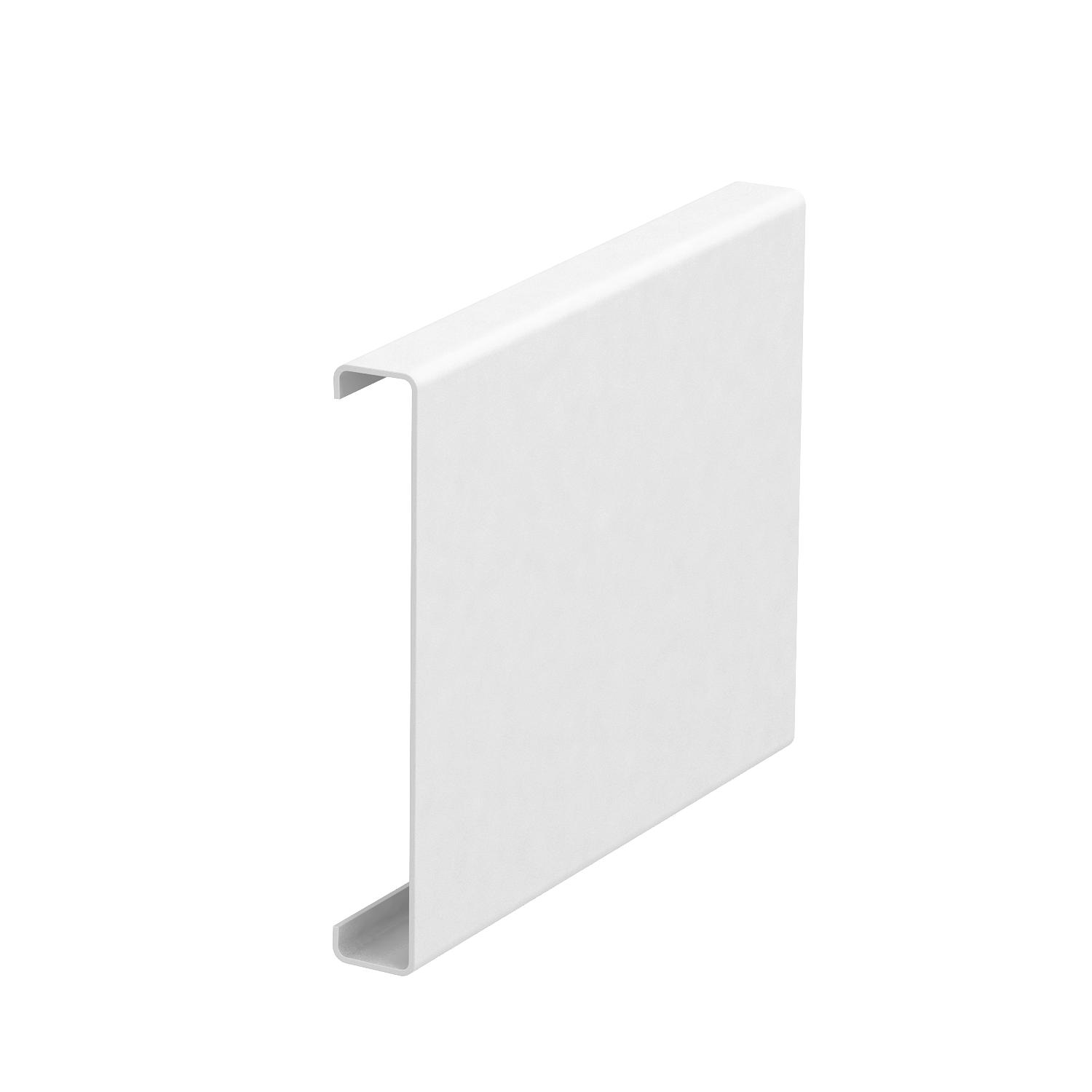

Sheet steel cover for closing the GS device installation trunking.
Sheet steel version.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)
Technical data

Technical data

Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,263 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Cover mounting type Internal

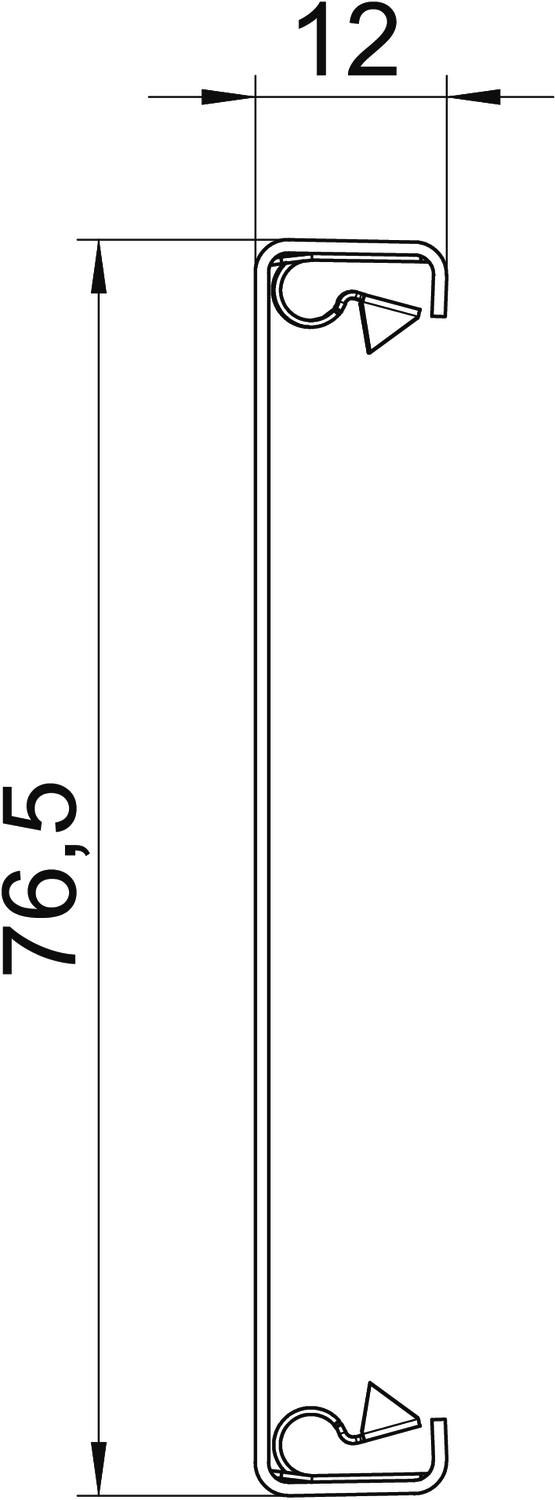

Dimension 12x76,5x100
Halogen-free yes
Height 12 mm
Length 100 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Version for Smooth
Width 76,5 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GS-OTRW 100 100 mm Pure white; RAL 9010 6286930
1 piece
Downloads

Download

Download

EU declaration of conformity GS-OTRW 100 / 6286930 , 0.10MB , pdf
Download
UK Declaration of Conformity GS-OTRW 100 / 6286930 , 0.09MB , pdf
Download
REACH Declaration of conformity GS-OTRW 100 / 6286930 , 0.12MB , pdf
Download
RoHS Declaration of conformity GS-OTRW 100 / 6286930 , 0.12MB , pdf
Download

Download

Download
Mounting instructions Pultkanal GEK-S , 2.99MB , pdf
Download

No invitation to tender text is available for this product.
