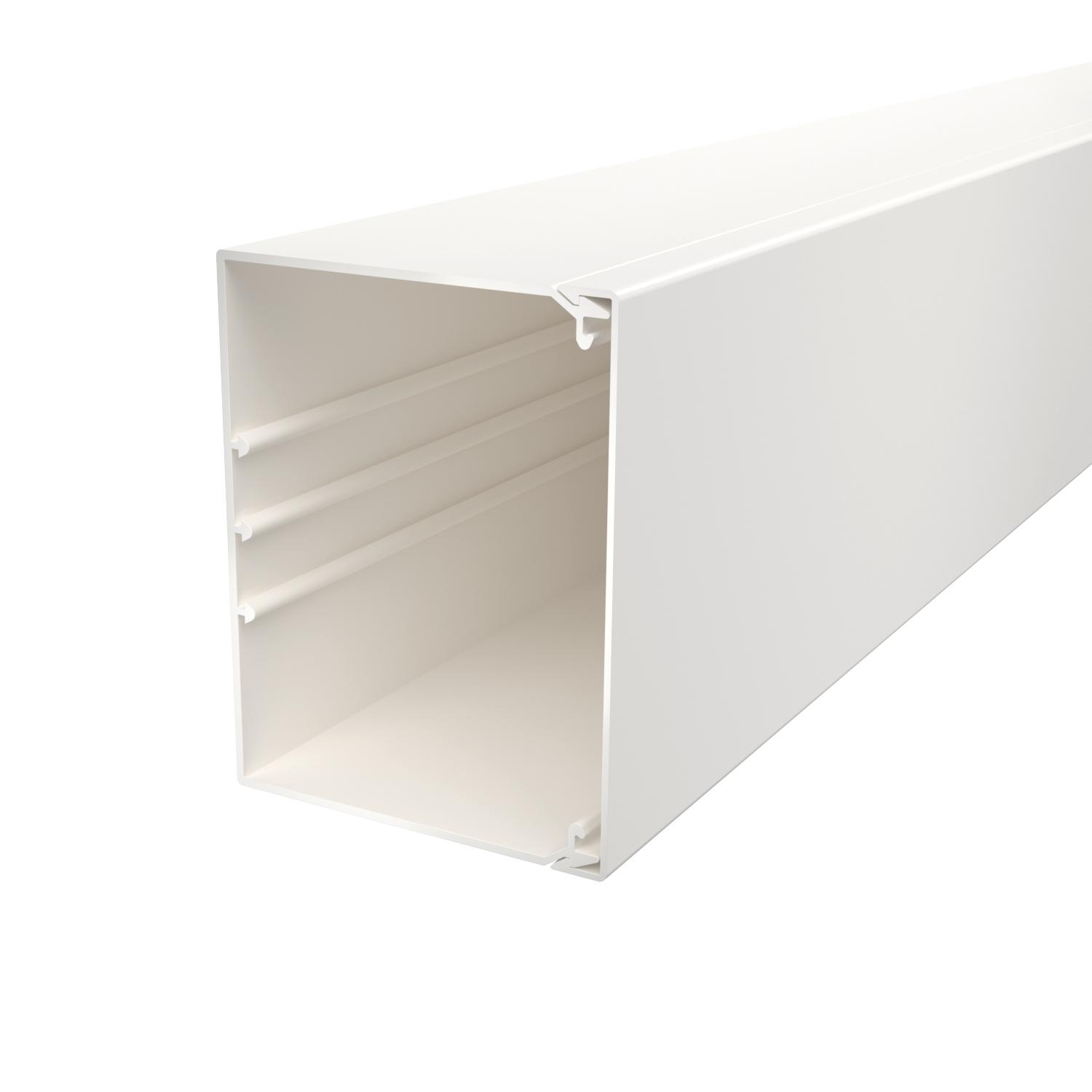

Trunking, type WDK 100130 2000 | 130 | 100 | Pure white; RAL 9010

Trunking, type WDK 100130

Item no. 6191347 | EAN 4012195042297

Item no. / Types

Length	2000 mm

Width	130 mm

Height	100 mm

Colour

Product description

Product description

Wall installation trunking as trunking base with base perforation and matching trunking cover.

Four cover fixing devices included.
The lid clamp can be moved along the entire length of the trunking.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	4,5638 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

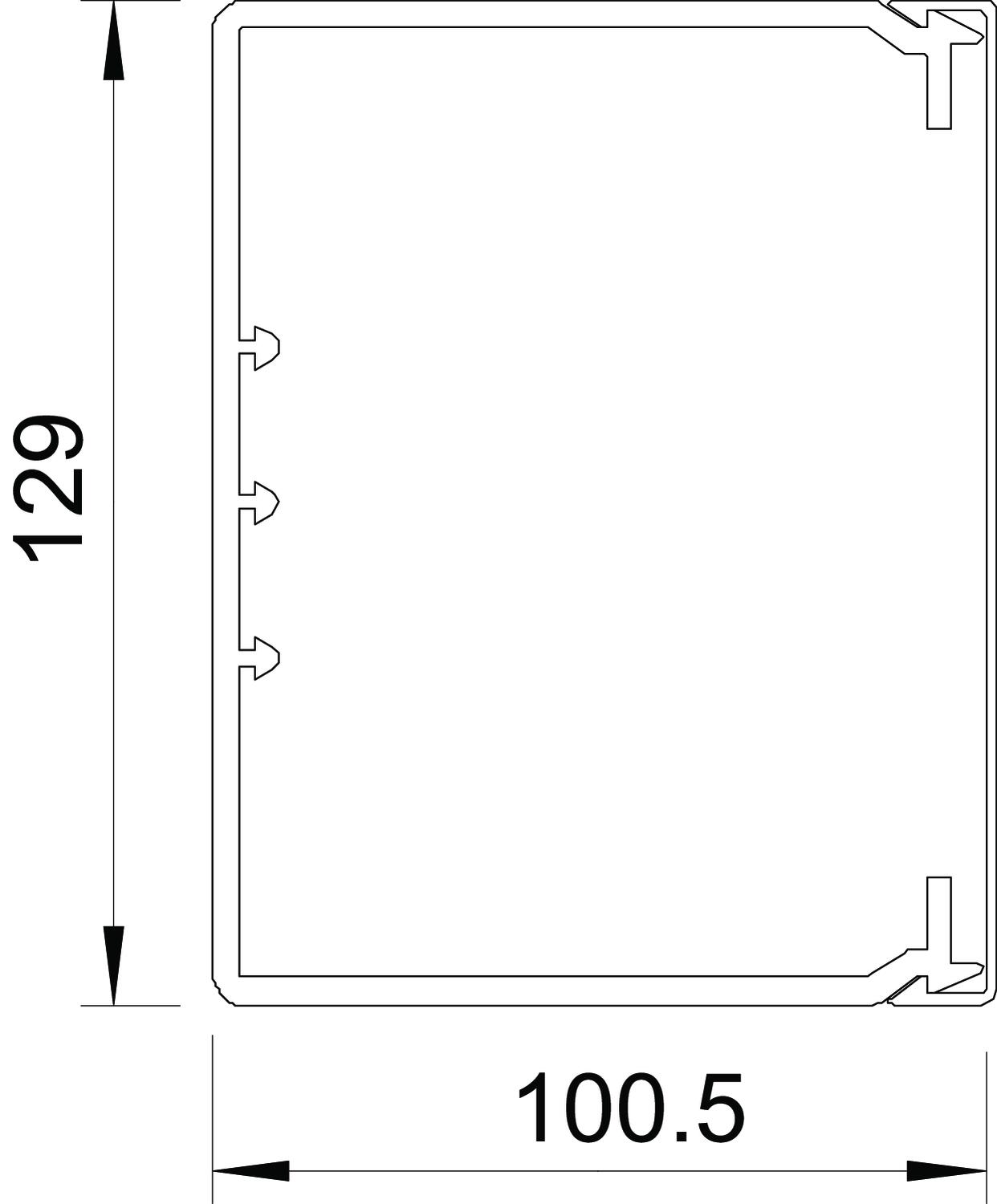

Dimension	100x130x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	100 mm
Length	2000 mm
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	61
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	51
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	47
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	10717 mm²
Version, cable trunking cover	Loose
Width	130 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK100130RW	2000 mm	130 mm	100 mm	Pure white; RAL 9010	6191347	m	8 m
WDK100130CW	2000 mm	130 mm	100 mm	Cream; RAL 9001	6026273	m	8 m
WDK100130GR	2000 mm	130 mm	100 mm	Stone grey; RAL 7030	6026281	m	8 m
WDK100130LGR	2000 mm	130 mm	100 mm	Light grey; RAL 7035	6027245	m	8 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

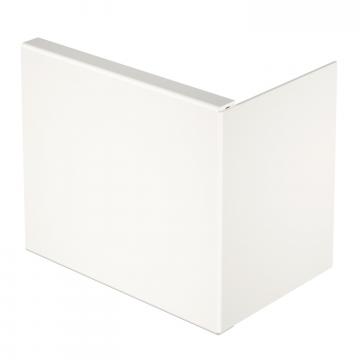

End piece, trunking type WDK 100130	WDK HE100130RW	6193395	piece	10 piece
Internal corner cover, trunking type WDK 100130	WDK I100130RW	6192429	piece	2 piece
External corner, trunking type WDK 100130	WDK A100130RW	6024506	piece	1 piece

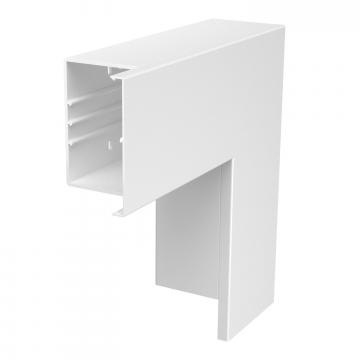

Flat angle, trunking type WDK 100130	WDK F100130RW	6161775	piece	1 piece
Partition for WDK trunking, trunking height 100 mm	2371 100	6026990	m	2 m
Cover clip for WDK trunking, trunking width 130 mm	2370 130	6023525	piece	20 piece
