Trunking, type WDK 10020 with adhesive film 2000 | 20 | 10 | Pure white; RAL 9010
morepic-1 morepic-2

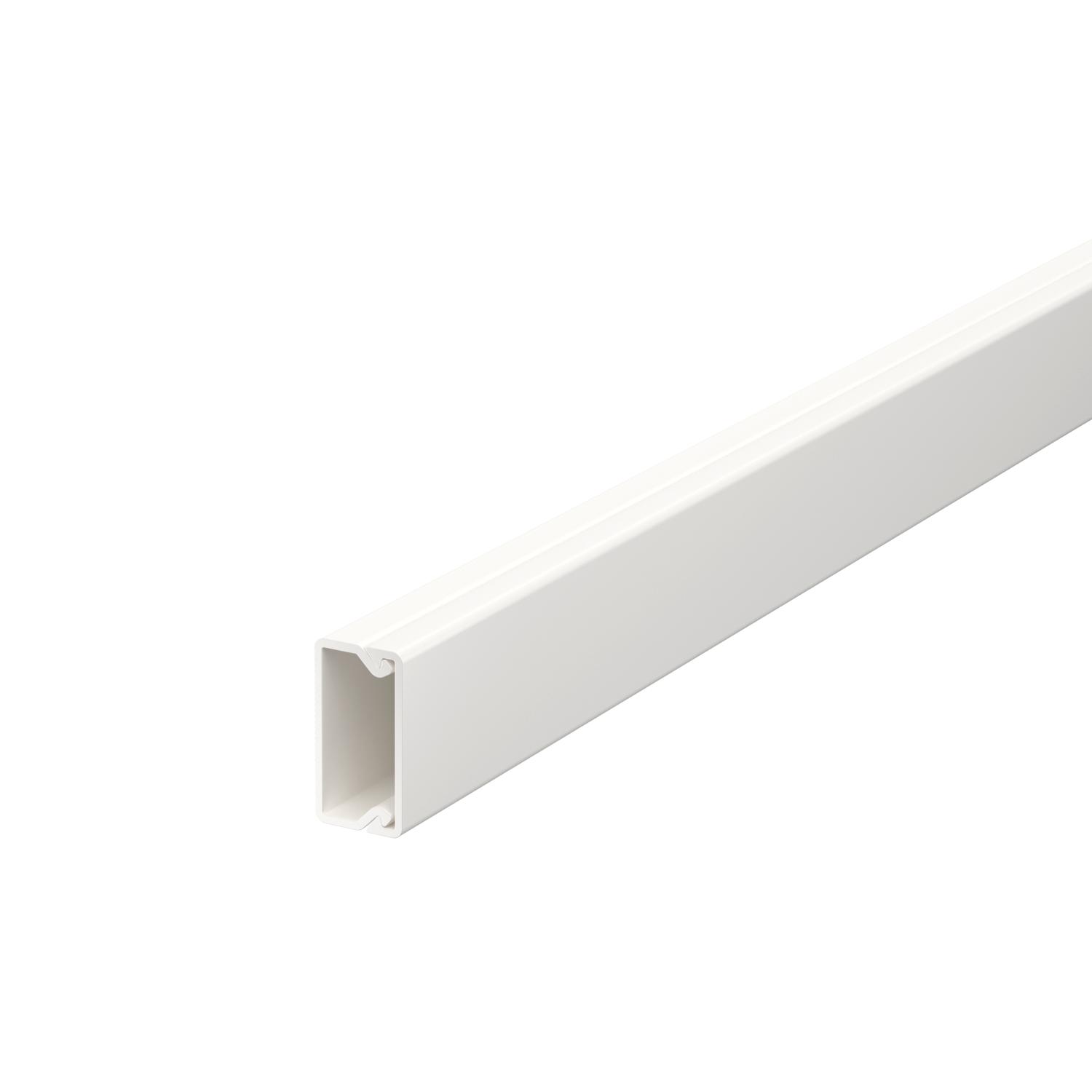

Trunking, type WDK 10020 with adhesive film

Item no. 6027318 | EAN 4012195396703

2000 mm
20 mm
10 mm
Product description
Product description
Trunking cover and base with base perforation and adhesive film.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • WDK trunking, trunking depth 10 mm
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip yes
CO2 Footprint (GWP) Cradle-to-Gate 0,4989 kg CO2e / 1 Meter
Colour Pure white; RAL 9010
Delivery on a roll no

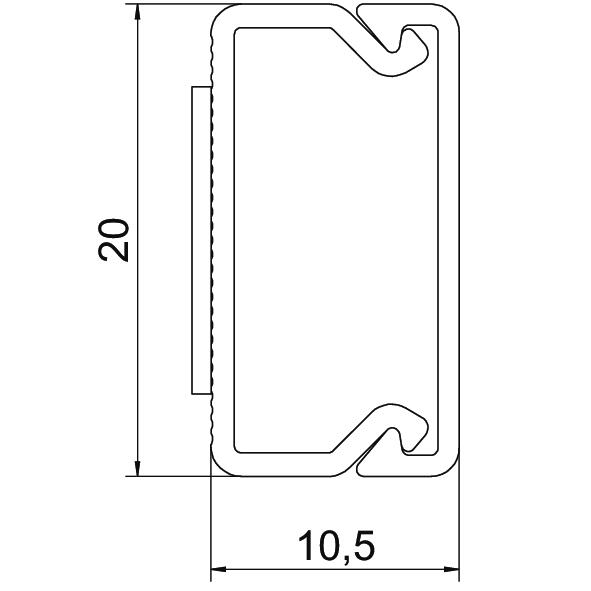

Dimension 10x20x2000
Duct connector no
Fastening type Self-adhesive
Halogen-free no
Height 10 mm
Length 2000 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Usable cross-section 135 mm²
Version, cable trunking cover Loose
Width 20 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
WDK10020SRW 2000 mm 20 mm 10 mm Pure white; RAL 9010 6027318
84 m
WDK10020SSW 2000 mm 20 mm 10 mm Jet black; RAL 9005 6027374
84 m
