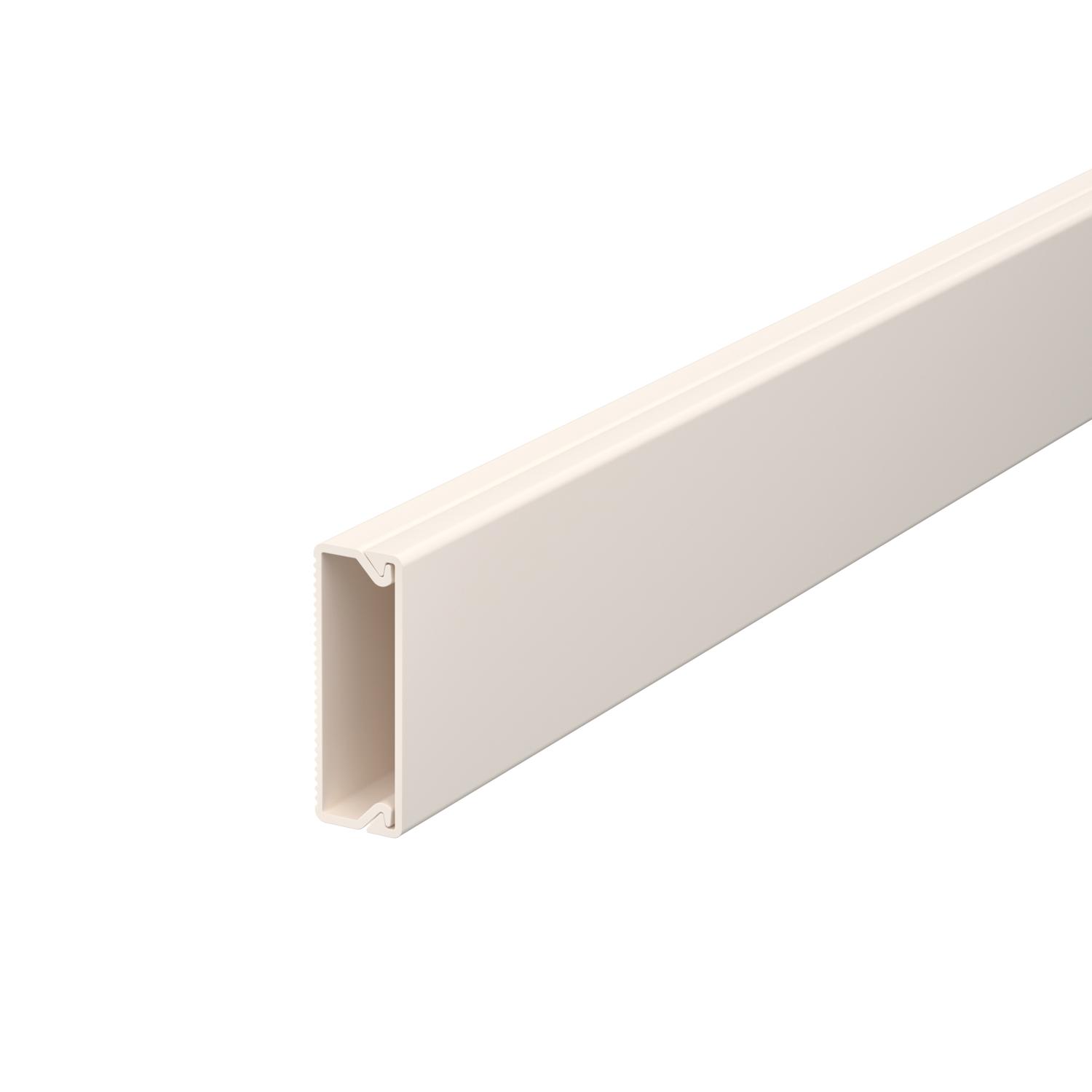

Trunking, type WDK 10030
Item no. 6150772 | EAN 4012196508037
- Product description
-
Product descriptionTrunking cover and base with base perforation.
-
- Technical data
-
Technical data

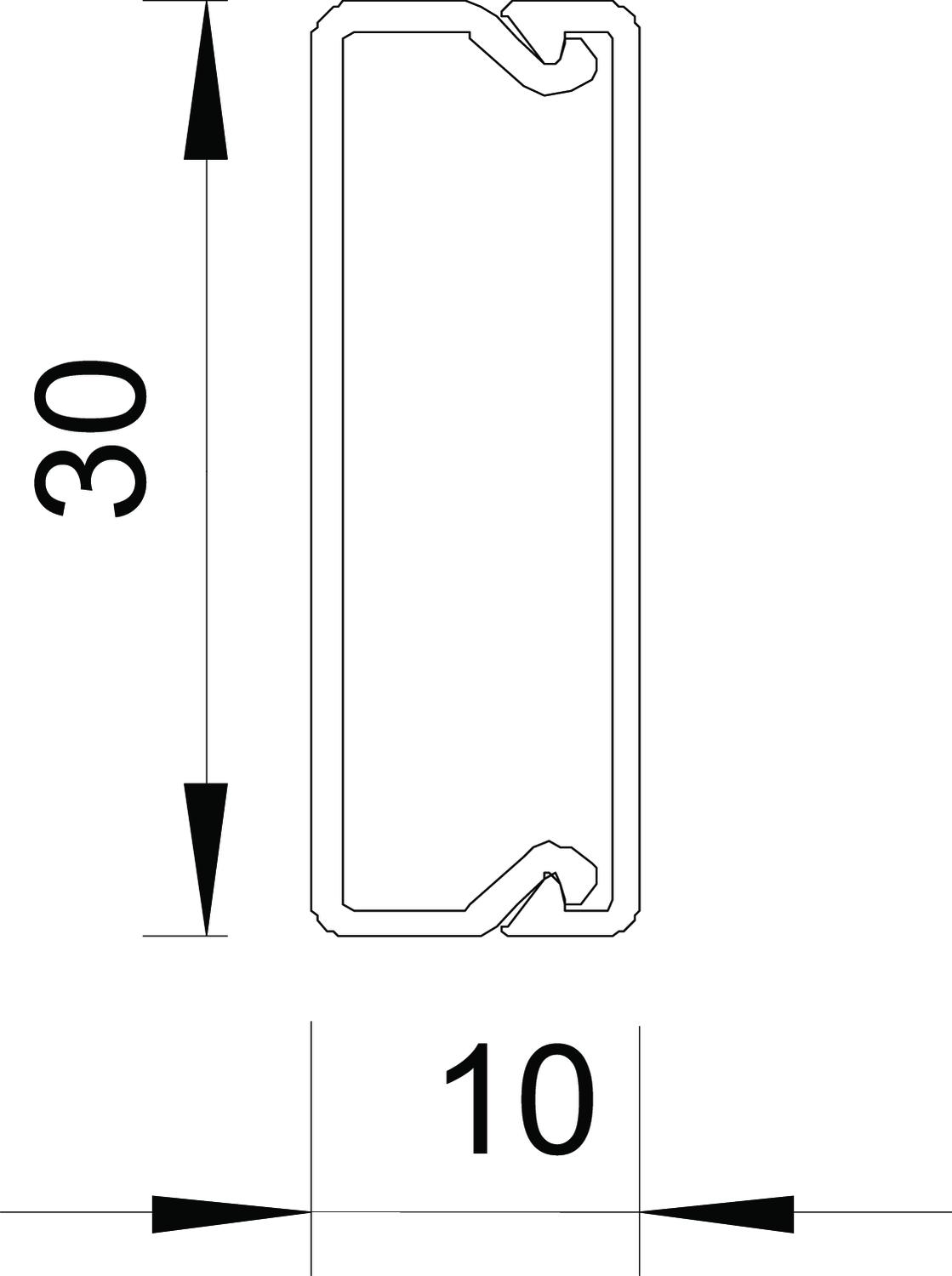

Antibacterial treatment no Cable retaining clip yes CO2 Footprint (GWP) Cradle-to-Gate 0,2583 kg CO2e / 1 Meter Colour Cream; RAL 9001 Delivery on a roll no Dimension 10x30x2000 Duct connector no Fastening type Base perforation Halogen-free no Height 10 mm Length 2000 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Usable cross-section 218 mm² Version, cable trunking cover Loose Width 30 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

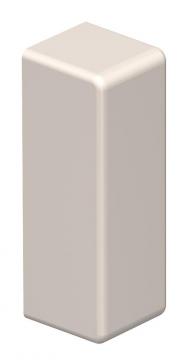

End piece, Trunking type WDK 10030
WDK HE10030CW 6153607 10 piece

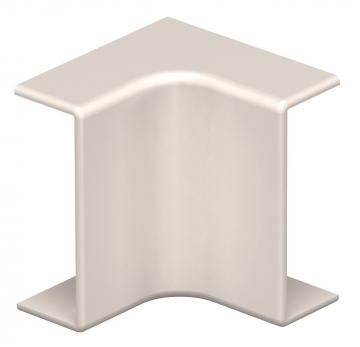

Internal corner cover, trunking type WDK 10030
WDK HI10030CW 6153011 4 piece

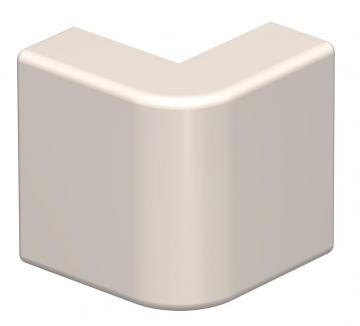

External corner cover, trunking type WDK 10030
WDK HA10030CW 6153305 4 piece

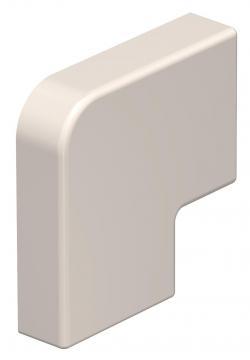

Flat angle cover, trunking type WDK 10030
WDK HF10030CW 6152619 4 piece - Downloads
-
