Trunking, type WDK 13025
Item no. 6187704 | EAN 4012195438939
- Product description
-

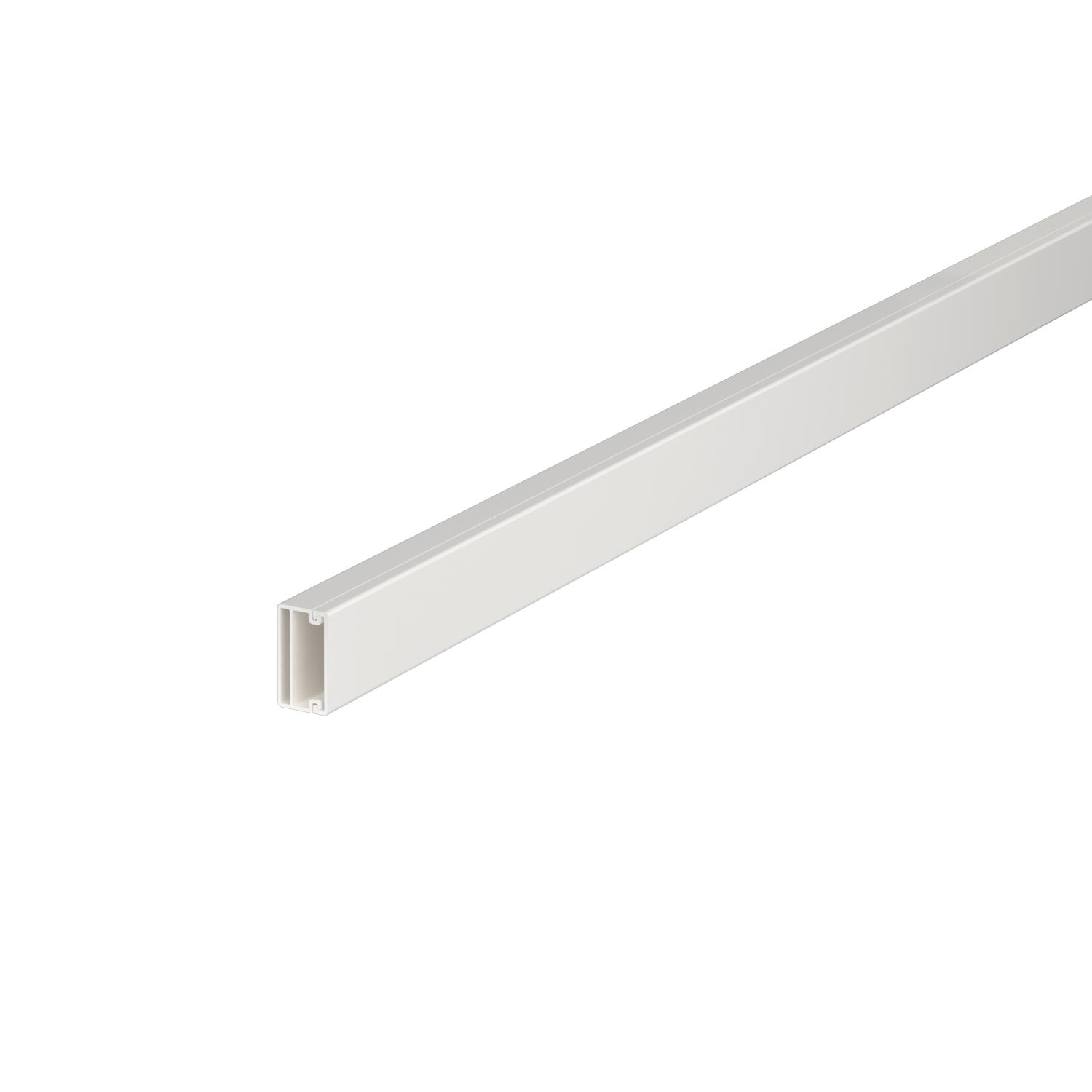

Product descriptionTrunking cover and base with base perforation. The heads of the fastening screws are hidden in the raised floor of the trunking. Assignment with cables with basic isolation is permitted. Please note the delivery lengths of 2 m and 4 m. Pure white = similar to RAL 9010, pearl white = similar to RAL 1013.
-
- Technical data
-
Technical data

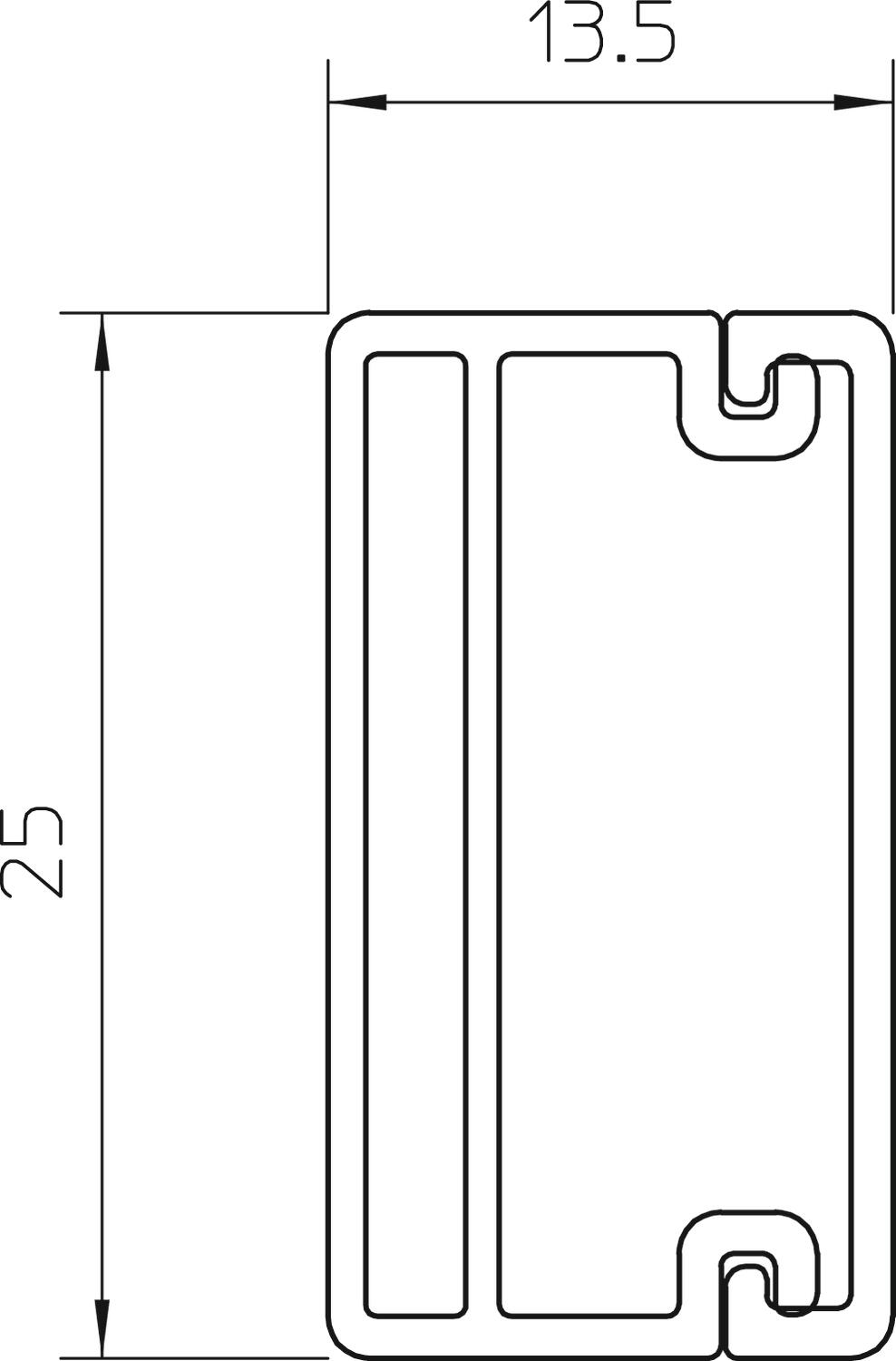

Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 0,3453 kg CO2e / 1 Meter Colour Pure white; RAL 9010 Delivery on a roll no Dimension 13x25x2000 Duct connector no Fastening type Base perforation Halogen-free no Height 13,5 mm Length 2000 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version, cable trunking cover Loose Width 25 mm - All types
- Downloads
-
Data sheet WDK13025 / 6187704 , 0.19MB , pdfSafety data sheet WDK13025 / 6187704 , 0.02MB , pdfCatalogue cable routing systems , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK13025 / 6187704 , 0.10MB , pdfUK Declaration of Conformity WDK13025 / 6187704 , 0.09MB , pdfLabel approval VDE symbol approval, WDK , 0.64MB , pdfLabel approval VDE symbol approval, WDK , 0.11MB , pdfMounting instructions Cable trunking WDK , 6.19MB , pdfNo invitation to tender text is available for this product.
