Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,5209 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

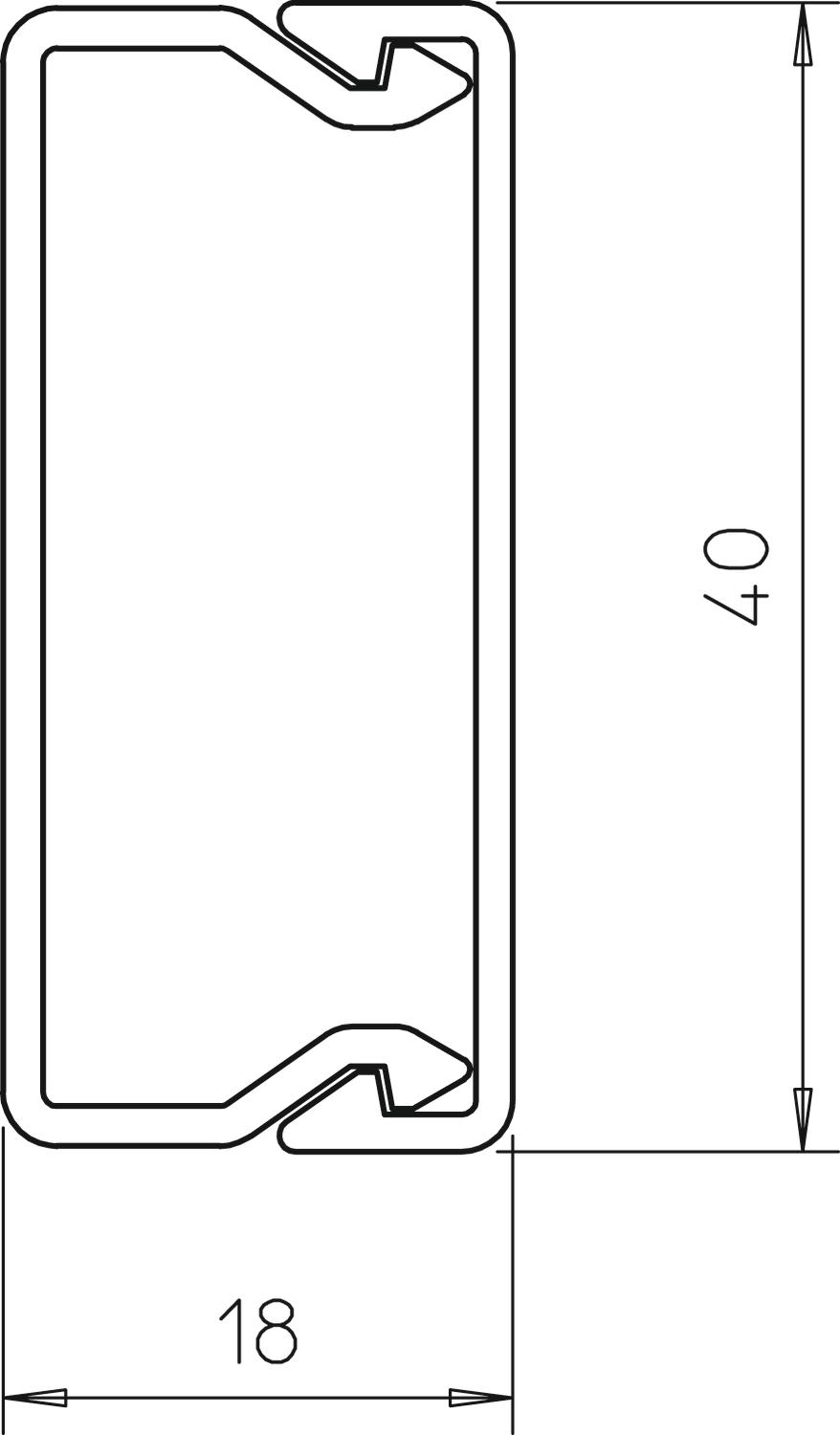

Dimension	15x40x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	17,5 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	3
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	2
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	523 mm²
Version, cable trunking cover	Loose
Width	40 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK15040RW	2000 mm	40 mm	17.5 mm	Pure white; RAL 9010	6191029	m	36 m
WDK15040GR	2000 mm	40 mm	17.5 mm	Stone grey; RAL 7030	6025137	m	36 m
WDK15040CW	2000 mm	40 mm	17.5 mm	Cream; RAL 9001	6025161	m	36 m
WDK15040SRW	2000 mm	40 mm	17.5 mm	Pure white; RAL 9010	6027335	m	36 m

Products	Types	Item no.	Quantity	SSU

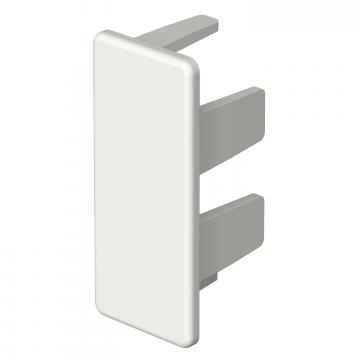

End piece, trunking type WDK 15040	WDK HE15040RW	6193110	piece	10 piece

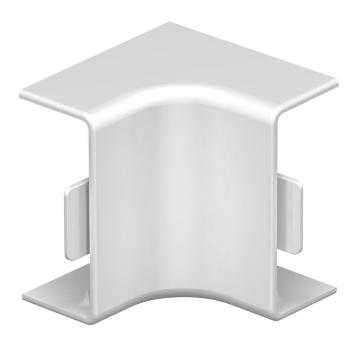

Internal corner hood, for trunking type WDK 15040	WDK HI15040RW	6191851	piece	4 piece

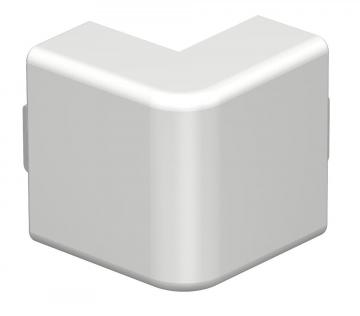

External corner cover, for trunking type WDK 15040	WDK HA15040RW	6192157	piece	4 piece

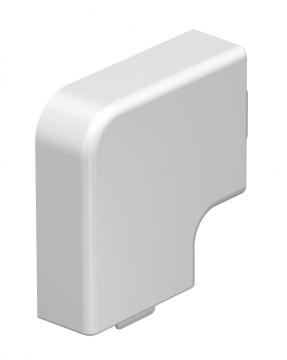

Flat angle cover, for trunking type WDK 15040	WDK HF15040RW	6192769	piece	4 piece

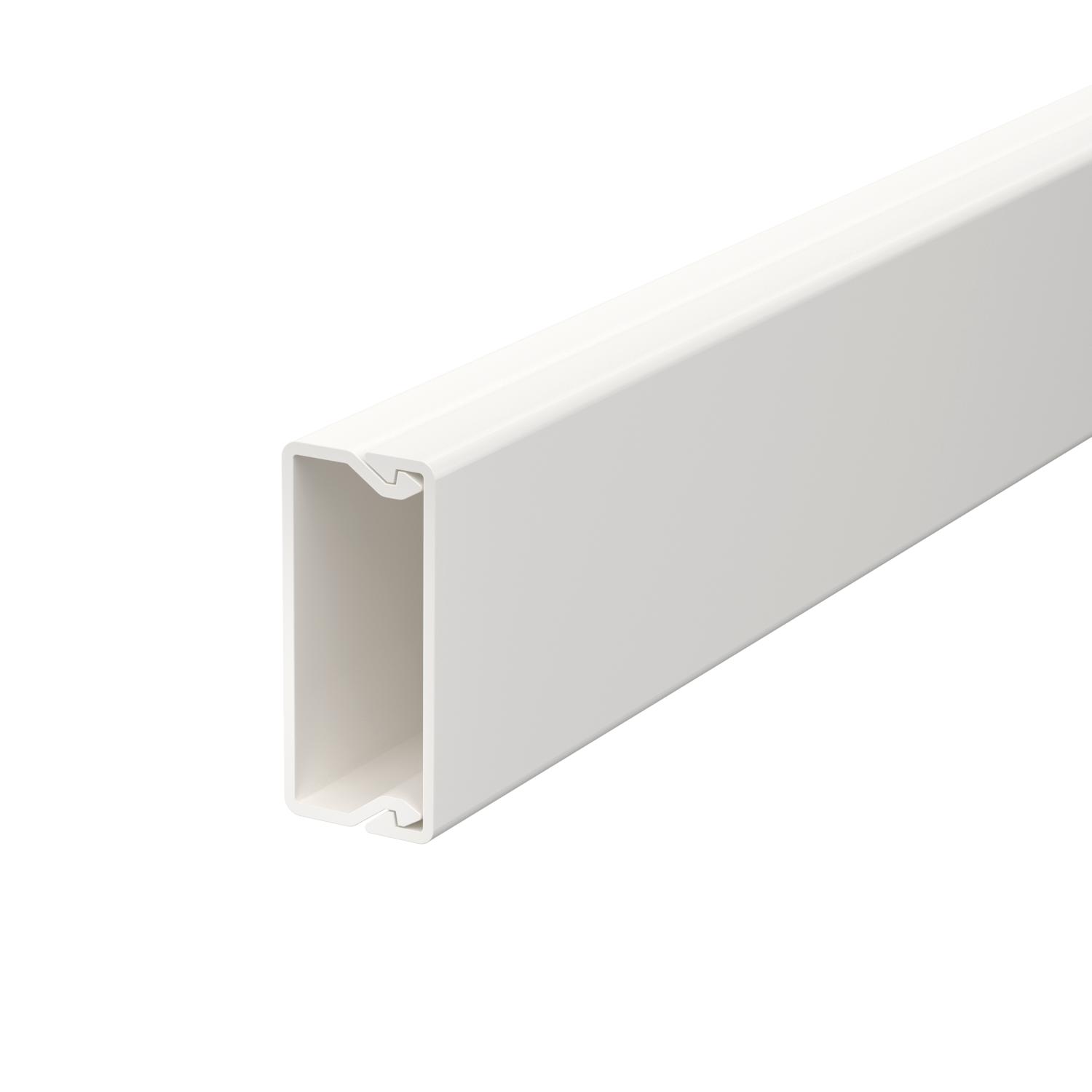

Trunking, type WDK 15040

All types
