Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,5166 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no
Dimension	20x20x2000
Duct connector	no
Fastening type	Self-adhesive and base perforation
Halogen-free	no
Height	17,5 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	1
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	1
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	220 mm²
Version, cable trunking cover	Loose
Width	17,5 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK20020RW	2000 mm	17.5 mm	17.5 mm	Pure white; RAL 9010	6191037	m	48 m
WDK20020LGR	2000 mm	17.5 mm	17.5 mm	Light grey; RAL 7035	6025102	m	48 m
WDK20020GR	2000 mm	17.5 mm	17.5 mm	Stone grey; RAL 7030	6025110	m	48 m
WDK20020BR	2000 mm	17.5 mm	17.5 mm	Sepia brown; RAL 8014	6025129	m	48 m
WDK20020CW	2000 mm	17.5 mm	17.5 mm	Cream; RAL 9001	6025153	m	48 m
WDK20020SW	2000 mm	17.5 mm	17.5 mm	Jet black; RAL 9005	6025155	m	48 m
WDK20020SRW	2000 mm	17.5 mm	17.5 mm	Pure white; RAL 9010	6027360	m	48 m

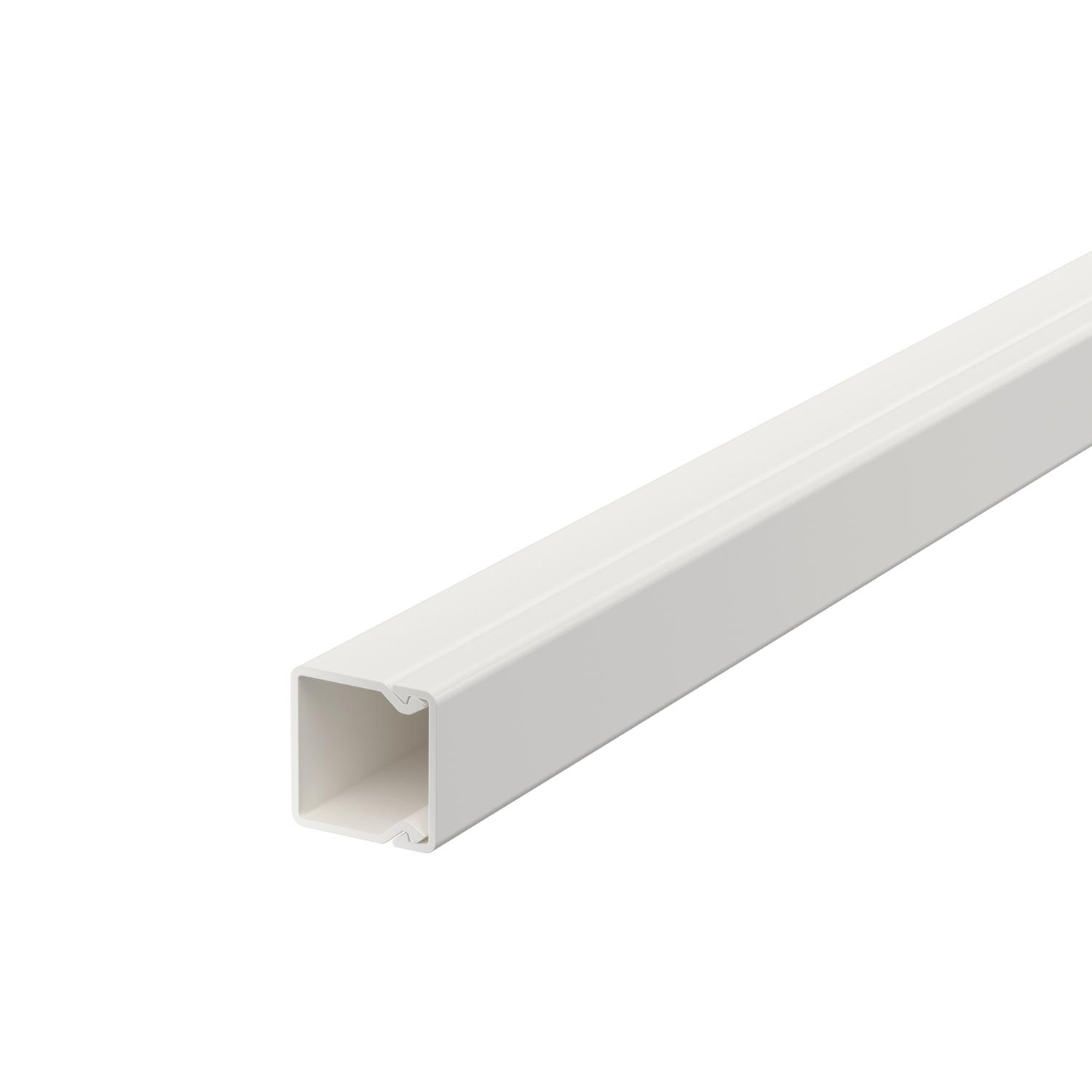

Trunking, type WDK 20020S with adhesive film

All types
