Trunking, type WDK 20035
Item no. 6191045 | EAN 4012196496938
- Product description
-

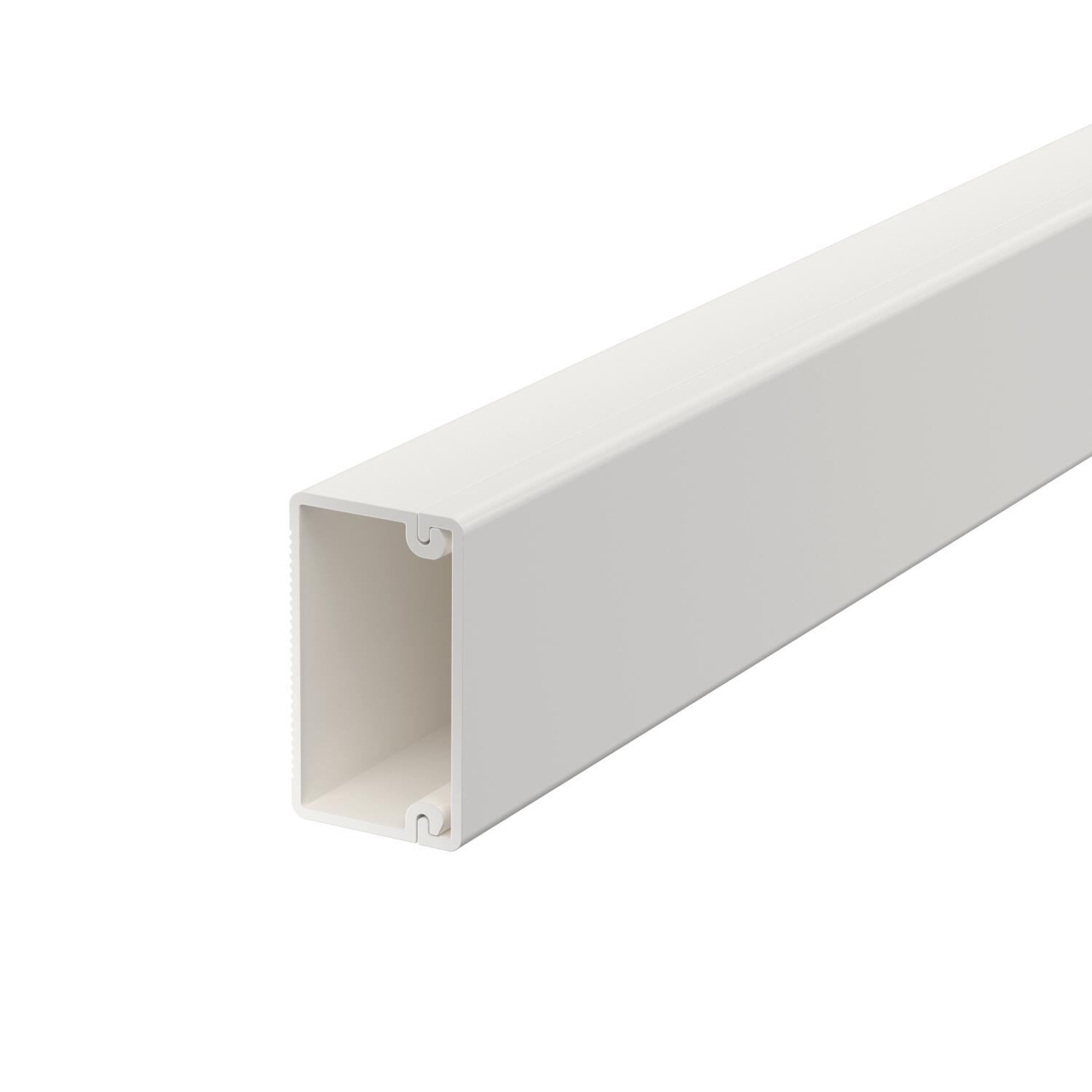

Product descriptionTrunking cover and base with base perforation.
-
- Technical data
-
Technical data

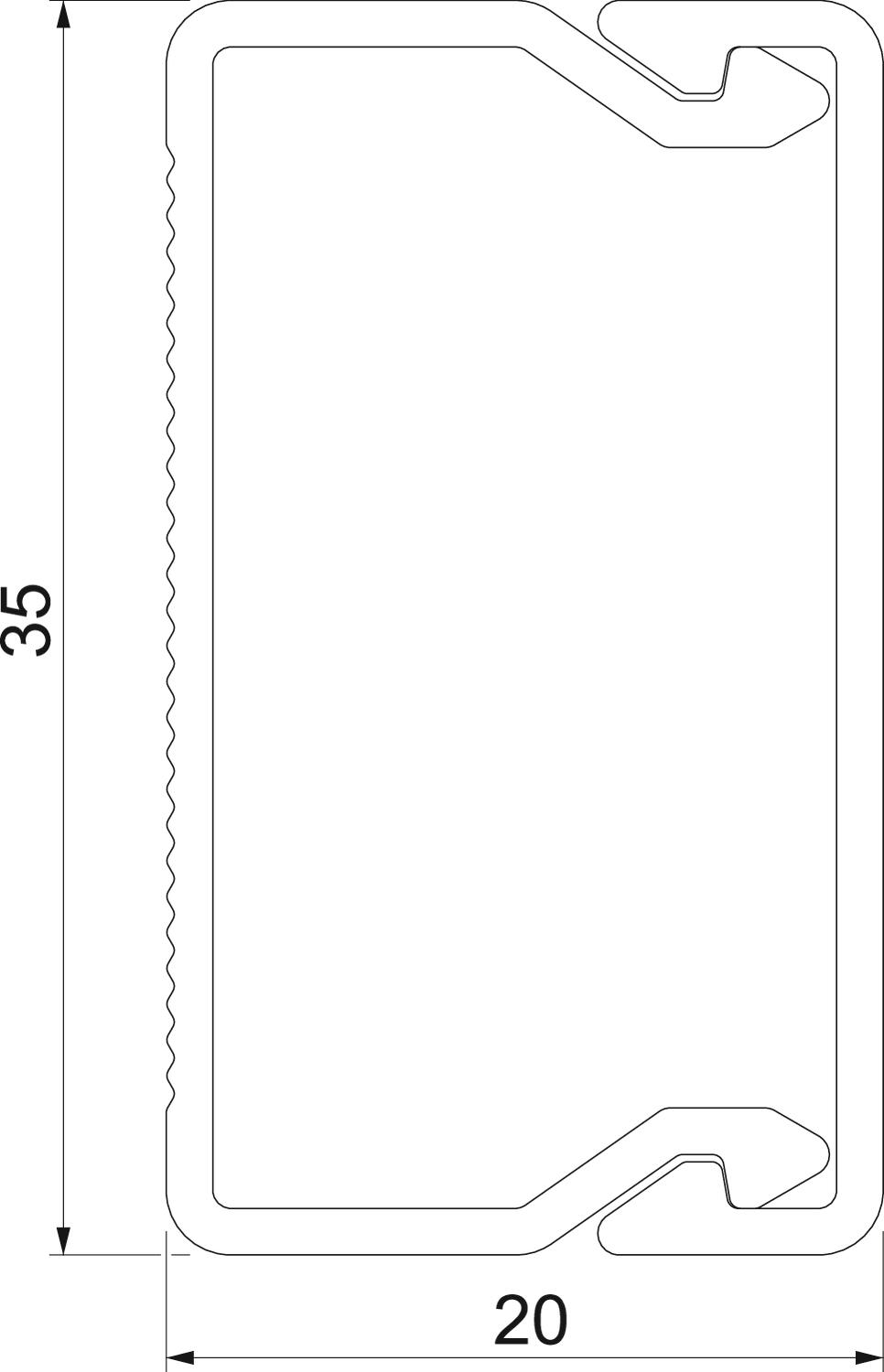

Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 0,472 kg CO2e / 1 Meter Colour Pure white; RAL 9010 Delivery on a roll no Dimension 20x35x2000 Duct connector no Fastening type Base perforation Halogen-free no Height 20 mm Length 2000 mm Maintain electrical functions no Material Polyvinylchloride Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) 3 Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) 2 Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) 2 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Usable cross-section 521 mm² Version, cable trunking cover Loose Width 35 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
End piece, trunking type WDK 20035
WDK HE20035RW 6193137 10 piece - Downloads
-
