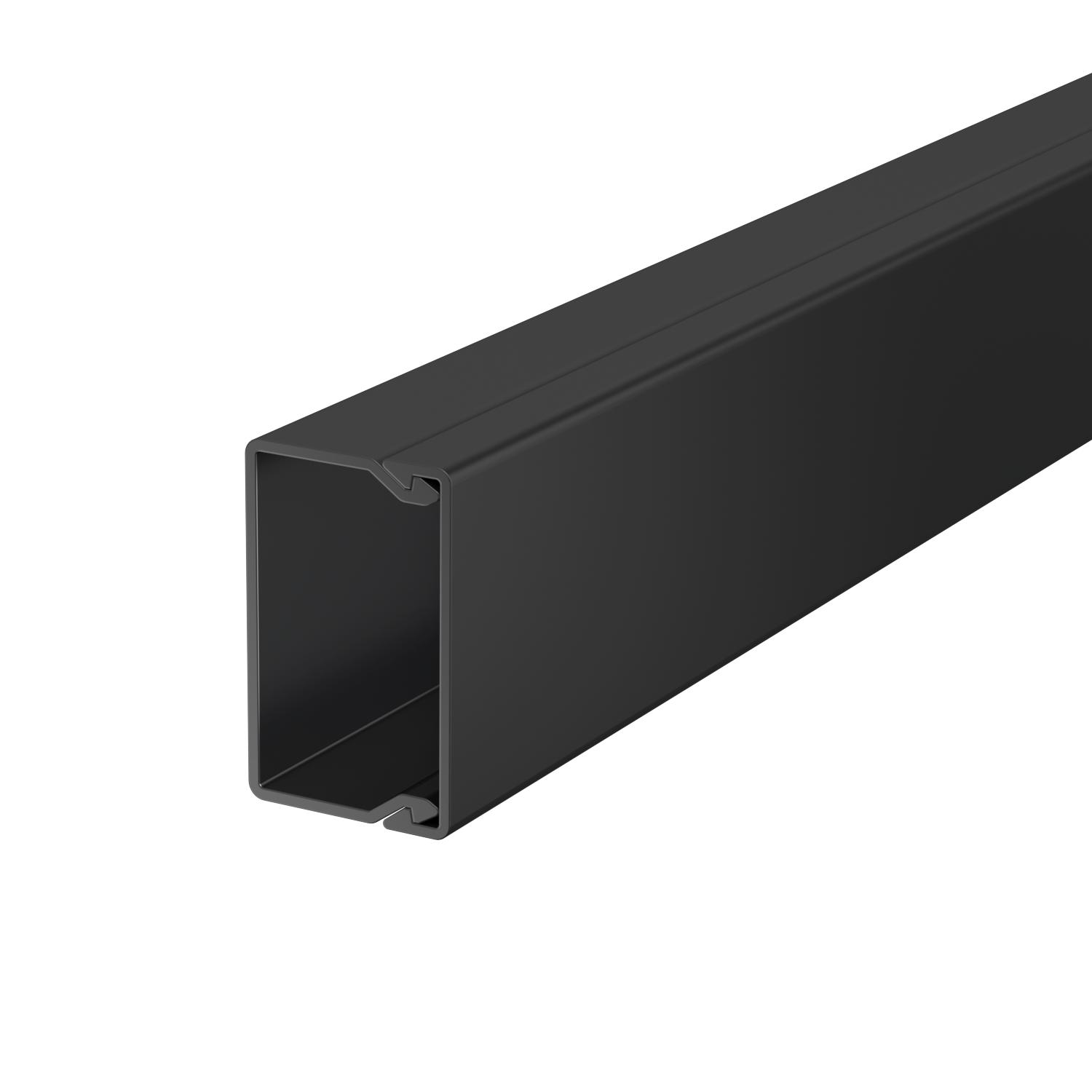

Trunking, type WDK 25040

Item no. / Types

Length	2000 mm

Width	40 mm

Height	25 mm

Colour

Product description

Product description

Wall and ceiling trunking, halogen-free, consisting of cover and base for mounting directly on the wall.

During installation, ensure that only halogen-free accessories and fastening materials are used.

Technical data

Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,5892 kg CO2e / 1 Meter
Colour	Jet black; RAL 9005
Delivery on a roll	no

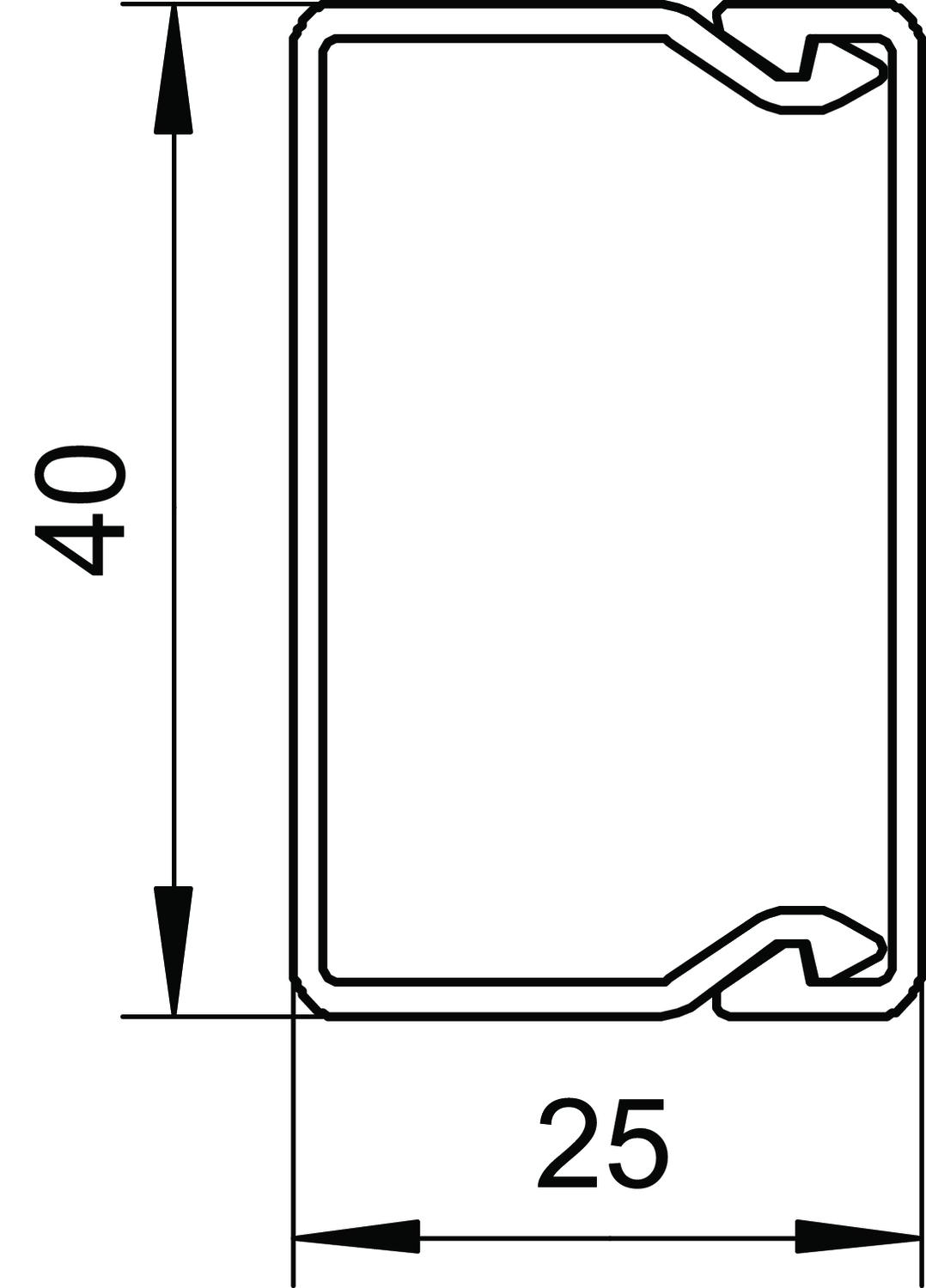

Dimension	2000x40x25
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	25 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	5
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	3
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	3
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	792 mm²
Version, cable trunking cover	Loose
Width	40 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK25040RW	2000 mm	40 mm	25 mm	Pure white; RAL 9010	6191061	m	24 m
WDK25040GR	2000 mm	40 mm	25 mm	Stone grey; RAL 7030	6026443	m	24 m
WDK25040CW	2000 mm	40 mm	25 mm	Cream; RAL 9001	6026451	m	24 m
WDK25040LGR	2000 mm	40 mm	25 mm	Light grey; RAL 7035	6026486	m	24 m
WDK25040SW	2000 mm	40 mm	25 mm	Jet black; RAL 9005	6026488	m	24 m

Accessories

Products	Types	Item no.	Quantity	SSU

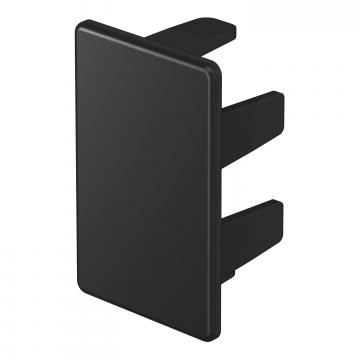

End piece, trunking type WDK 25040	WDK HE25040SW	6191808	piece	10 piece

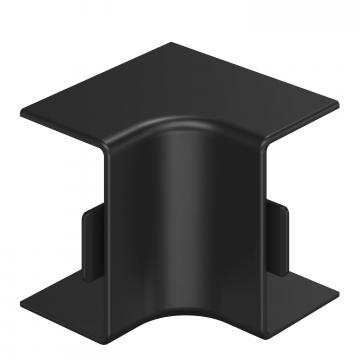

Internal corner cover, trunking type WDK 25040	WDK HI25040SW	6191760	piece	4 piece

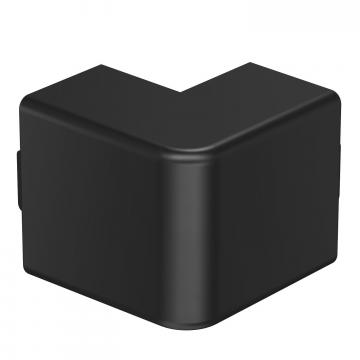

External corner cover, for trunking type WDK 25040	WDK HA25040SW	6191774	piece	4 piece

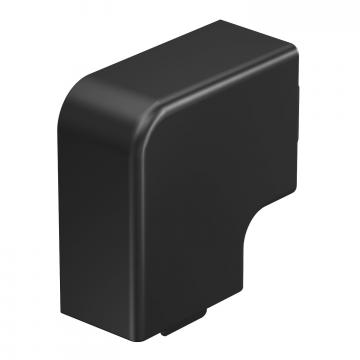

Flat angle cover, trunking type WDK 25040	WDK HF25040SW	6191790	piece	4 piece
