Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,4937 kg CO2e / 1 Meter
Colour	Sepia brown; RAL 8014
Delivery on a roll	no

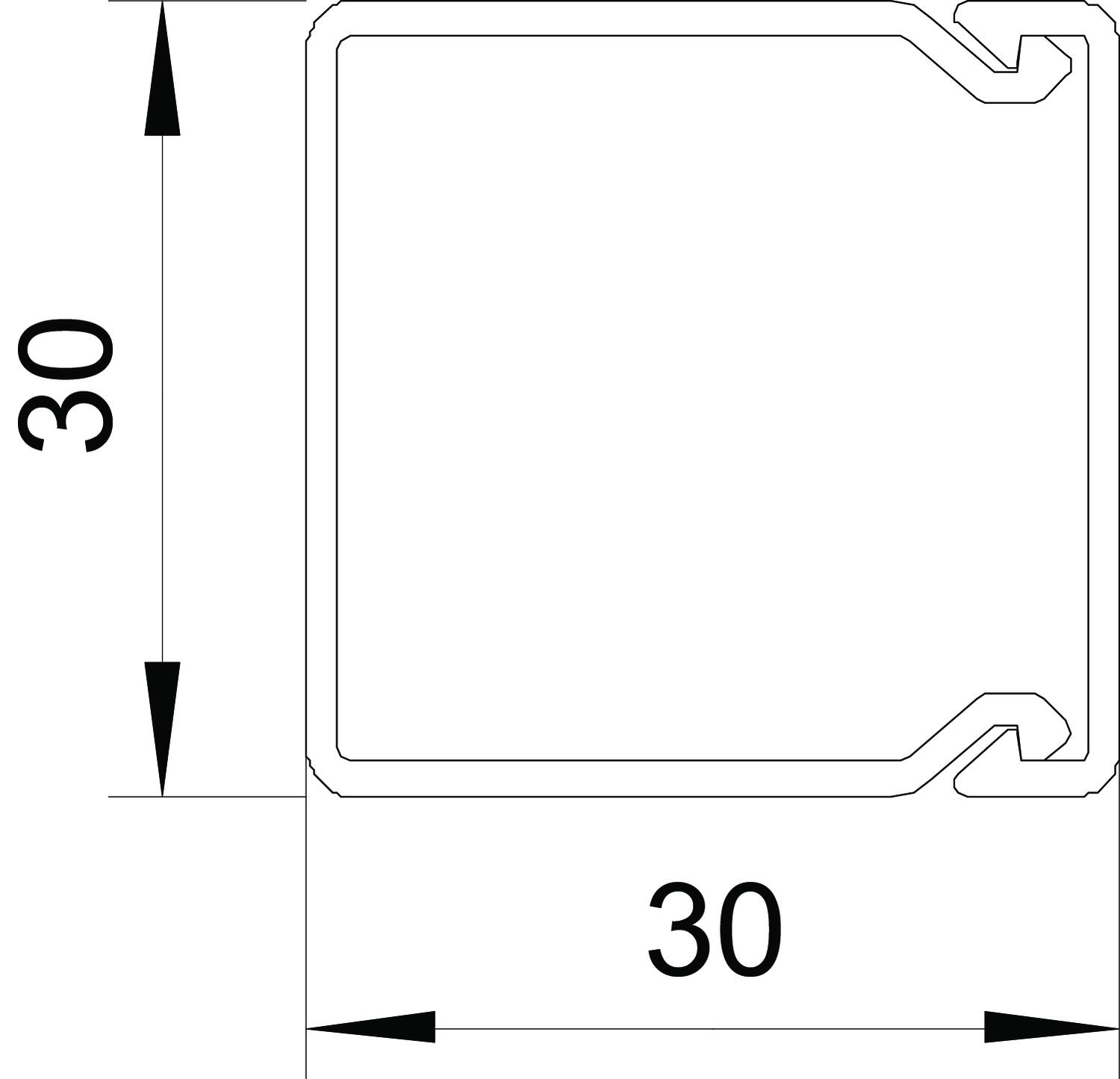

Dimension	30x30x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	30 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	4
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	4
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	4
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	731 mm²
Version, cable trunking cover	Loose
Width	30 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK30030RW	2000 mm	30 mm	30 mm	Pure white; RAL 9010	6191096	m	40 m
WDK30030LGR	2000 mm	30 mm	30 mm	Light grey; RAL 7035	6026796	m	40 m
WDK30030GR	2000 mm	30 mm	30 mm	Stone grey; RAL 7030	6026818	m	40 m
WDK30030CW	2000 mm	30 mm	30 mm	Cream; RAL 9001	6026826	m	40 m
WDK30030BR	2000 mm	30 mm	30 mm	Sepia brown; RAL 8014	6026834	m	40 m

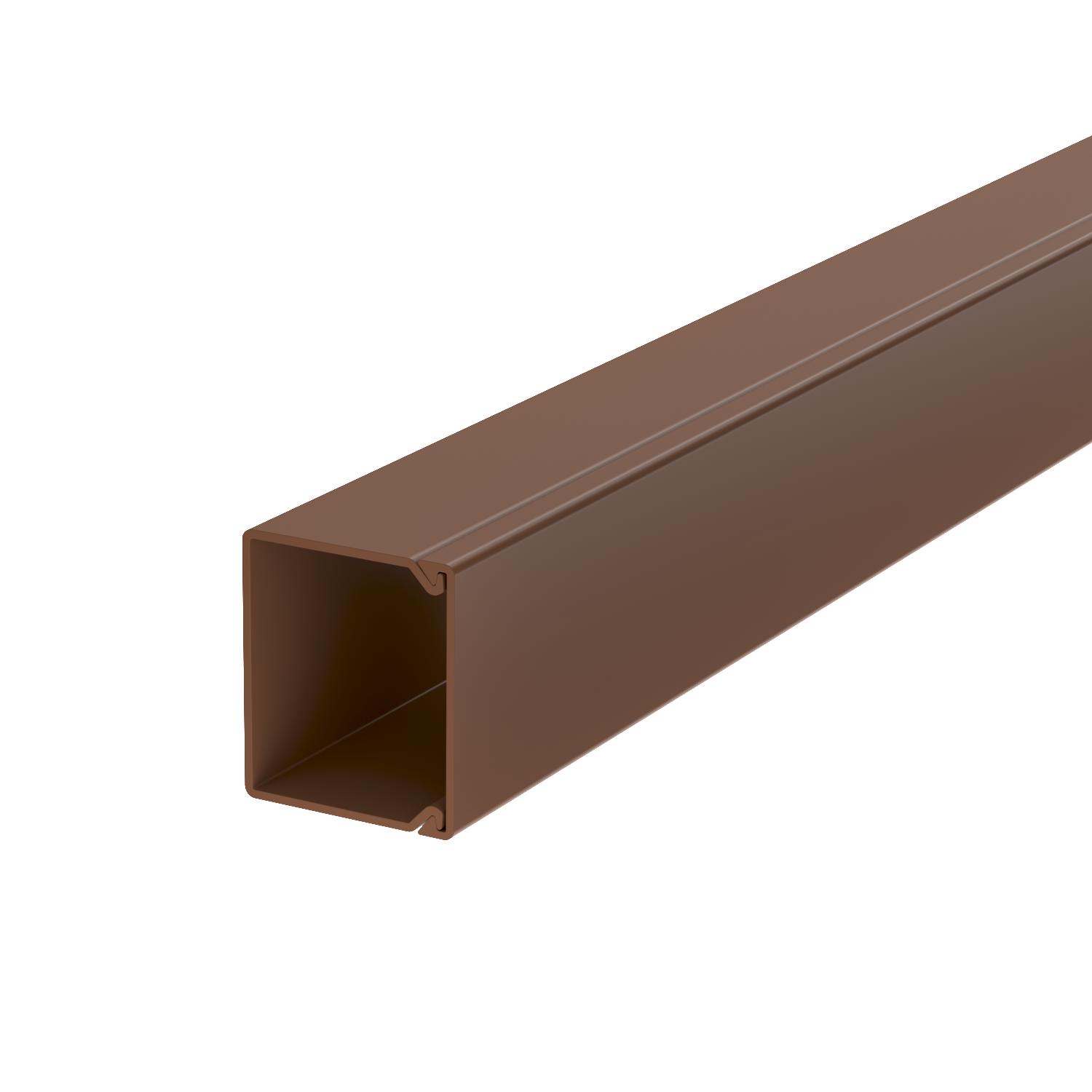

Trunking, type WDK 30030

All types
