Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,6668 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

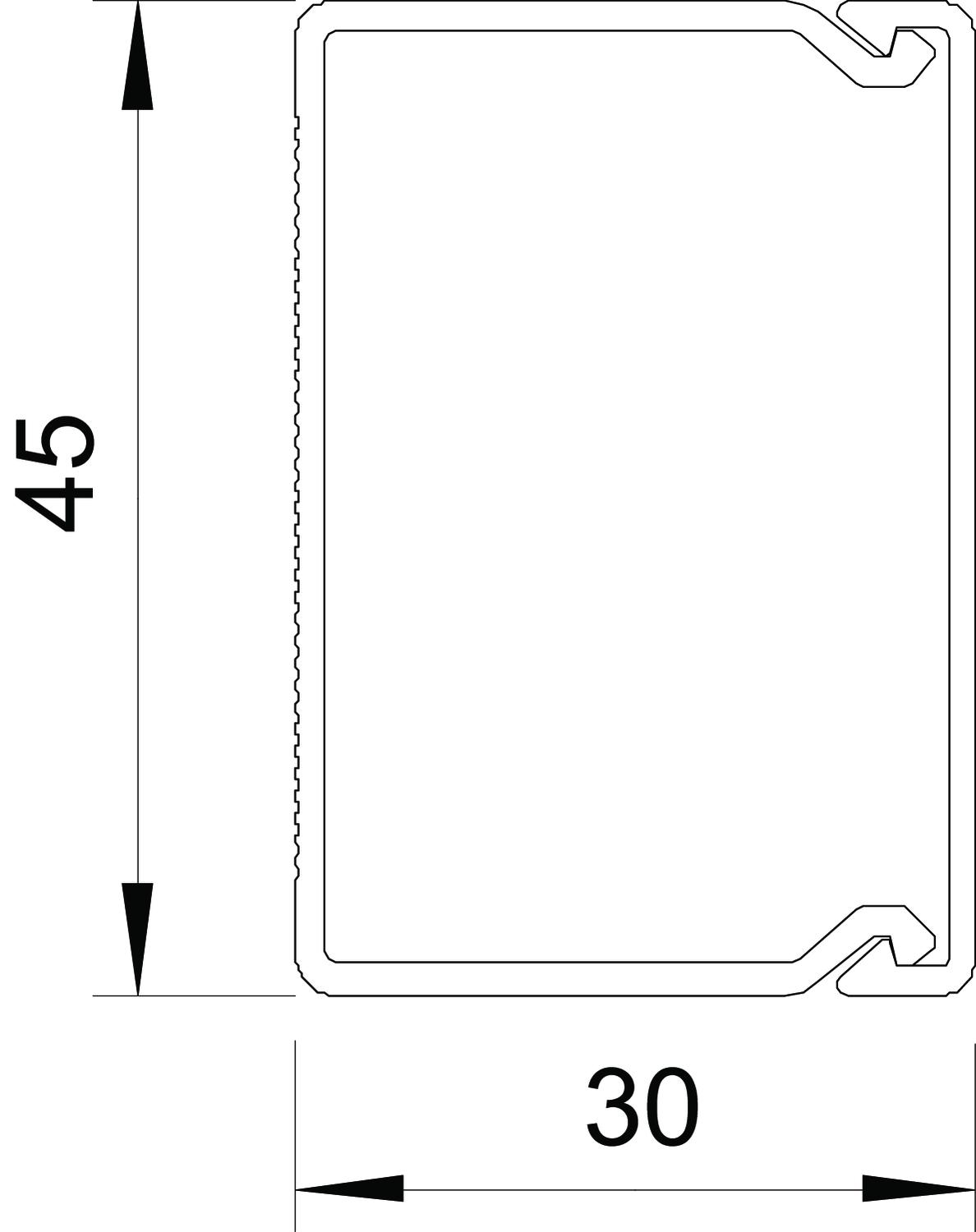

Dimension	30x45x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	30 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	8
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	6
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	6
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	1145 mm²
Version, cable trunking cover	Loose
Width	45 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK30045RW	2000 mm	45 mm	30 mm	Pure white; RAL 9010	6191118	m	48 m
WDK30045LGR	2000 mm	45 mm	30 mm	Light grey; RAL 7035	6026842	m	48 m
WDK30045GR	2000 mm	45 mm	30 mm	Stone grey; RAL 7030	6026850	m	48 m
WDK30045CW	2000 mm	45 mm	30 mm	Cream; RAL 9001	6026869	m	48 m

Products	Types	Item no.	Quantity	SSU

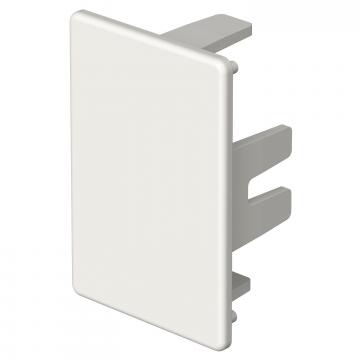

End piece, trunking type WDK 30045	WDK HE30045RW	6193196	piece	10 piece

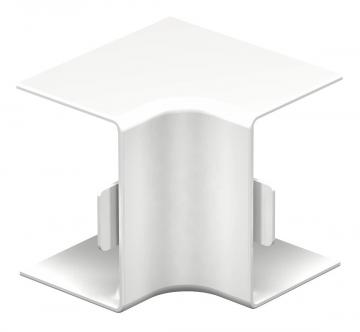

Internal corner cover, trunking type WDK 30045	WDK HI30045RW	6191932	piece	4 piece

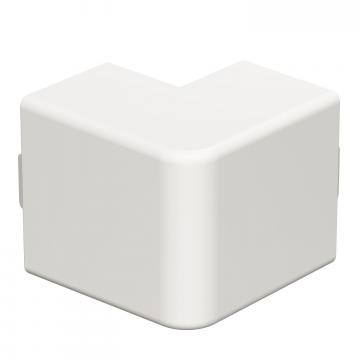

External corner cover, trunking type WDK 30045	WDK HA30045RW	6192238	piece	4 piece

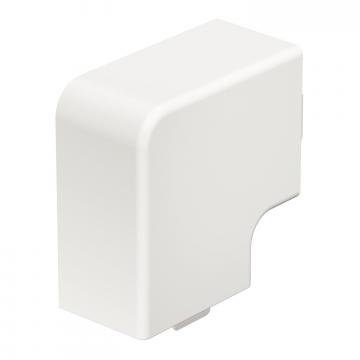

Flat angle cover, trunking type WDK 30045	WDK HF30045RW	6192823	piece	4 piece

Trunking, type WDK 30045

All types
