Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,8264 kg CO2e / 1 Meter
Colour	Sepia brown; RAL 8014
Delivery on a roll	no

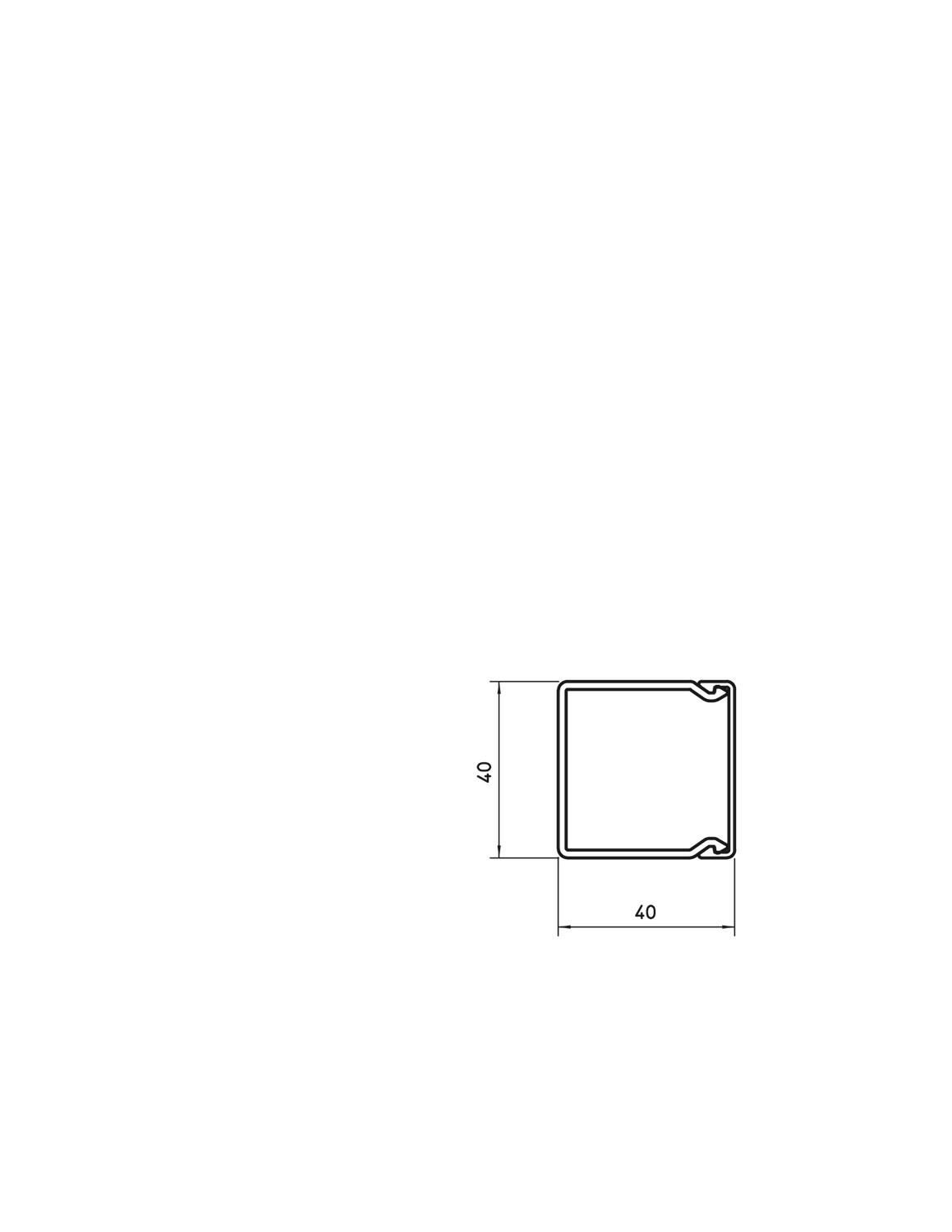

Dimension	40x40x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	40 mm
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	7
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	6
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	5
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	1314 mm²
Version, cable trunking cover	Loose
Width	40 mm

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK40040RW	2000 mm	40 mm	40 mm	Pure white; RAL 9010	6191126	m	36 m
WDK40040CW	2000 mm	40 mm	40 mm	Cream; RAL 9001	6025412	m	36 m
WDK40040BR	2000 mm	40 mm	40 mm	Sepia brown; RAL 8014	6025420	m	36 m
WDK40040GR	2000 mm	40 mm	40 mm	Stone grey; RAL 7030	6025447	m	36 m
WDK40040LGR	2000 mm	40 mm	40 mm	Light grey; RAL 7035	6027016	m	36 m

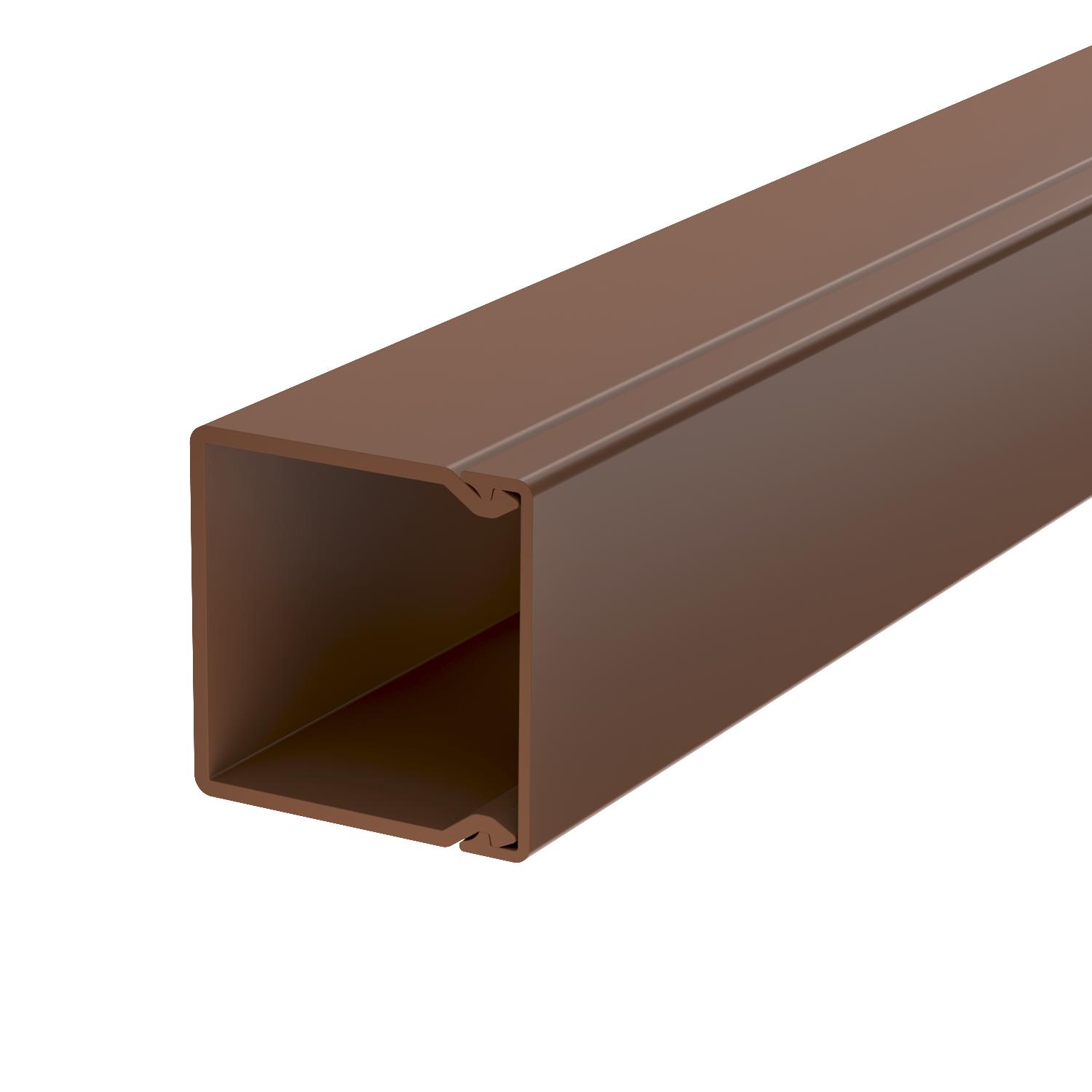

Trunking, type WDK 40040

All types
