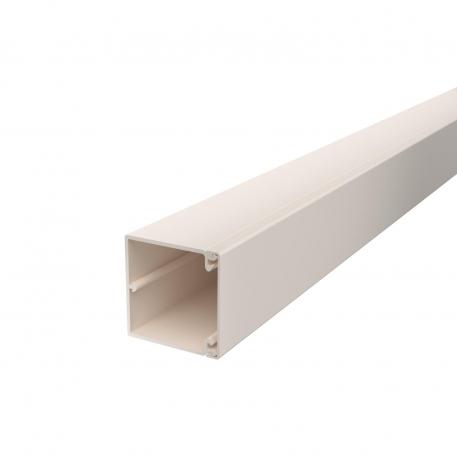

Trunking, type WDK 60060

Item no. / Types

Length	2000 mm

Width	60 mm

Height	60 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover clips included
Lid clamp can be moved along the entire length of the trunking.

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	1,6092 kg CO2e / 1 Meter
Colour	Cream; RAL 9001
Delivery on a roll	no

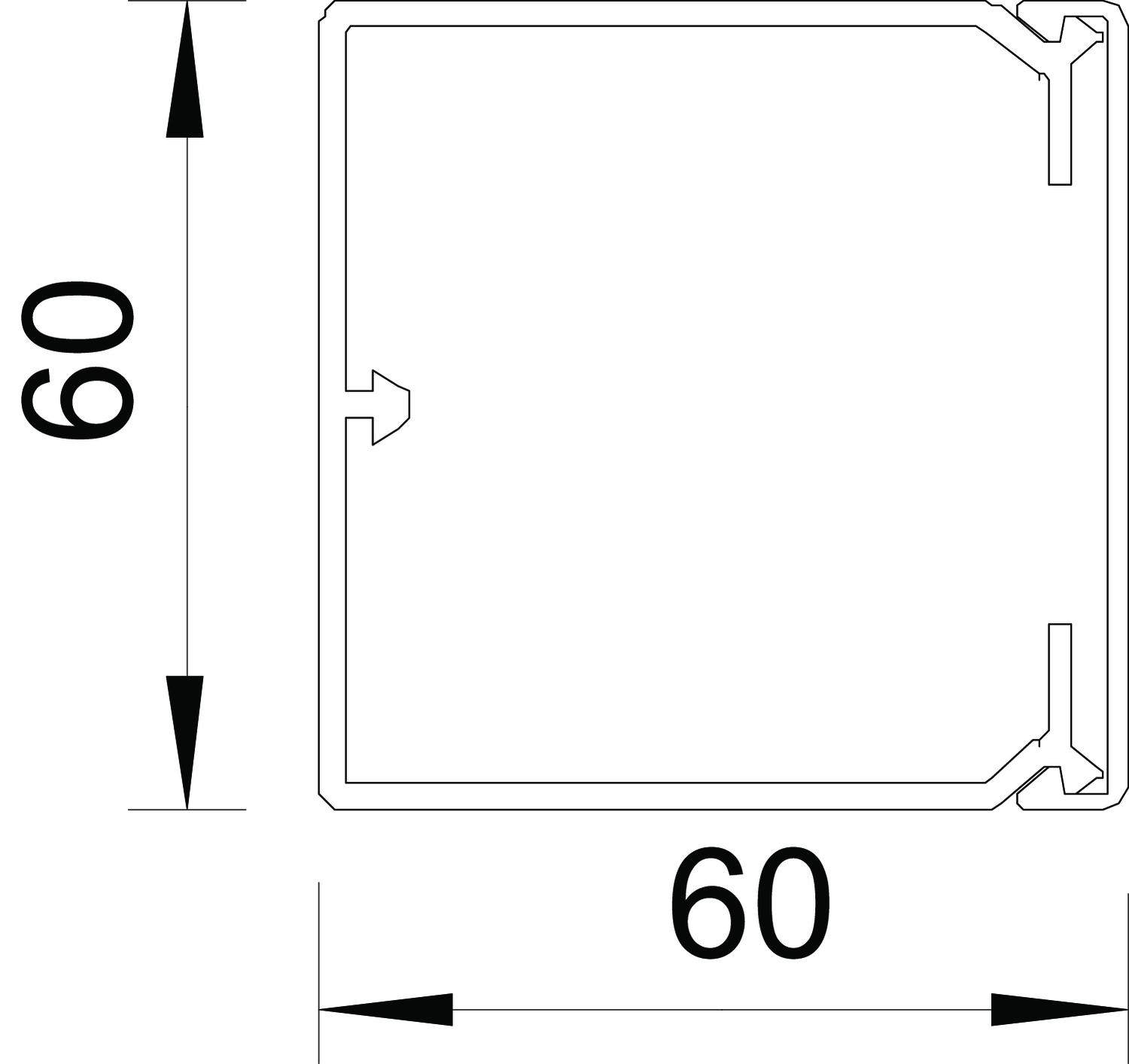

Dimension	60x60x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	60 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	16
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	13
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	12
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	2863 mm²
Version, cable trunking cover	Loose
Width	60 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK60060RW	2000 mm	60 mm	60 mm	Pure white; RAL 9010	6191193	m	32 m
WDK60060CW	2000 mm	60 mm	60 mm	Cream; RAL 9001	6021948	m	32 m
WDK60060GR	2000 mm	60 mm	60 mm	Stone grey; RAL 7030	6025668	m	32 m
WDK60060LGR	2000 mm	60 mm	60 mm	Light grey; RAL 7035	6027105	m	32 m

Accessories

Products	Types	Item no.	Quantity	SSU
End piece, trunking type WDK 60060	WDK HE60060CW	6162800	piece	10 piece

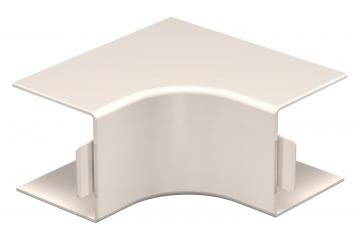

Internal corner cover, trunking type WDK 60060	WDK HI60060CW	6160301	piece	2 piece
External corner cover, trunking type WDK 60060	WDK HA60060CW	6160905	piece	2 piece

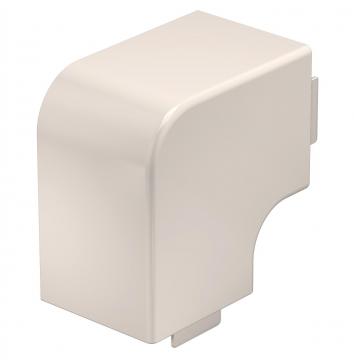

Flat angle cover, trunking type WDK 60060	WDK HF60060CW	6161502	piece	2 piece
Partition for WDK trunking, trunking height 60 mm	2371 60	6023118	m	2 m
Cover clip for WDK trunking, trunking width 60 mm	2370 60	6022995	piece	20 piece
