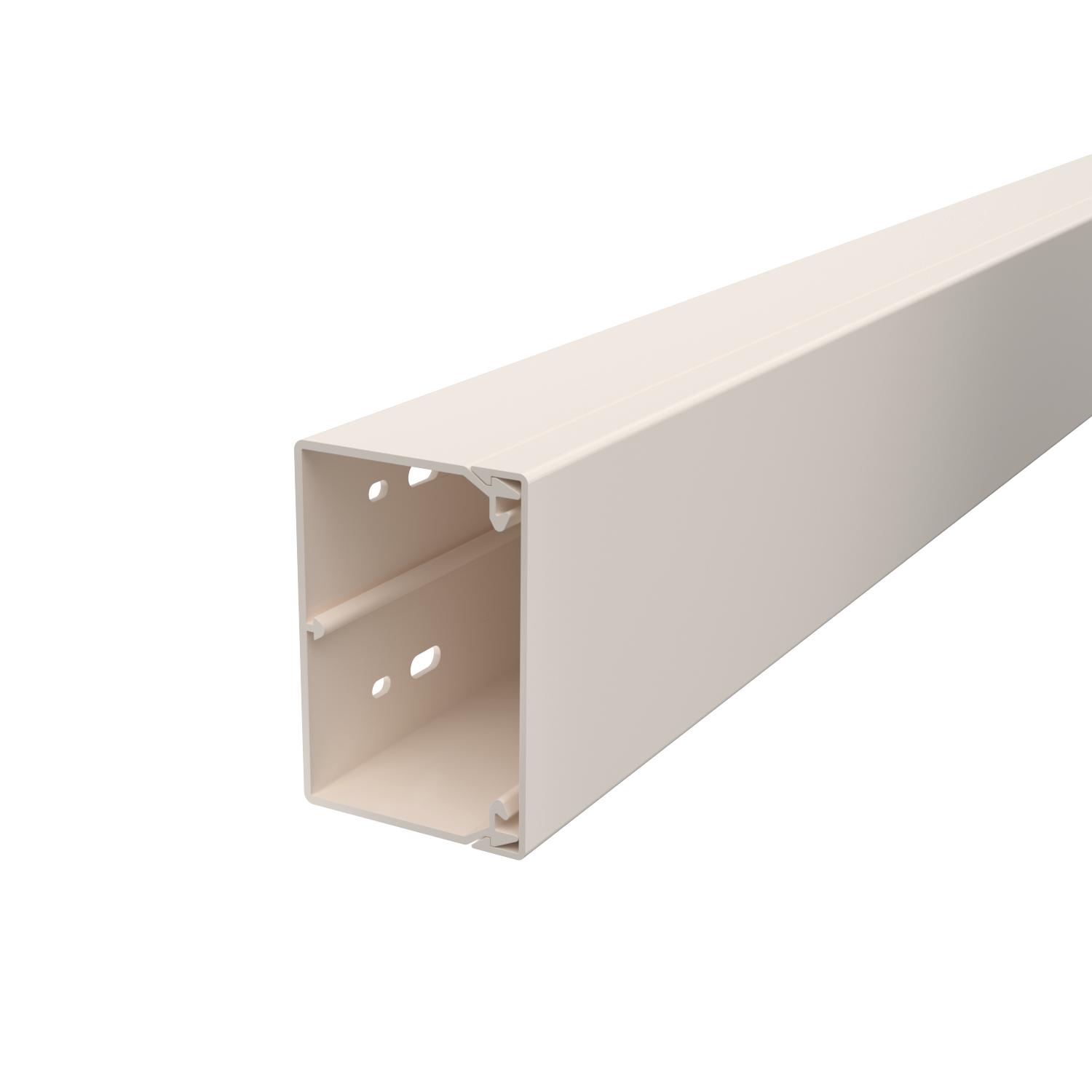

Trunking, type WDK 60090

Item no. / Types

Length	2000 mm

Width	90 mm

Height	60 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	1,9675 kg CO2e / 1 Meter
Colour	Cream; RAL 9001
Delivery on a roll	no

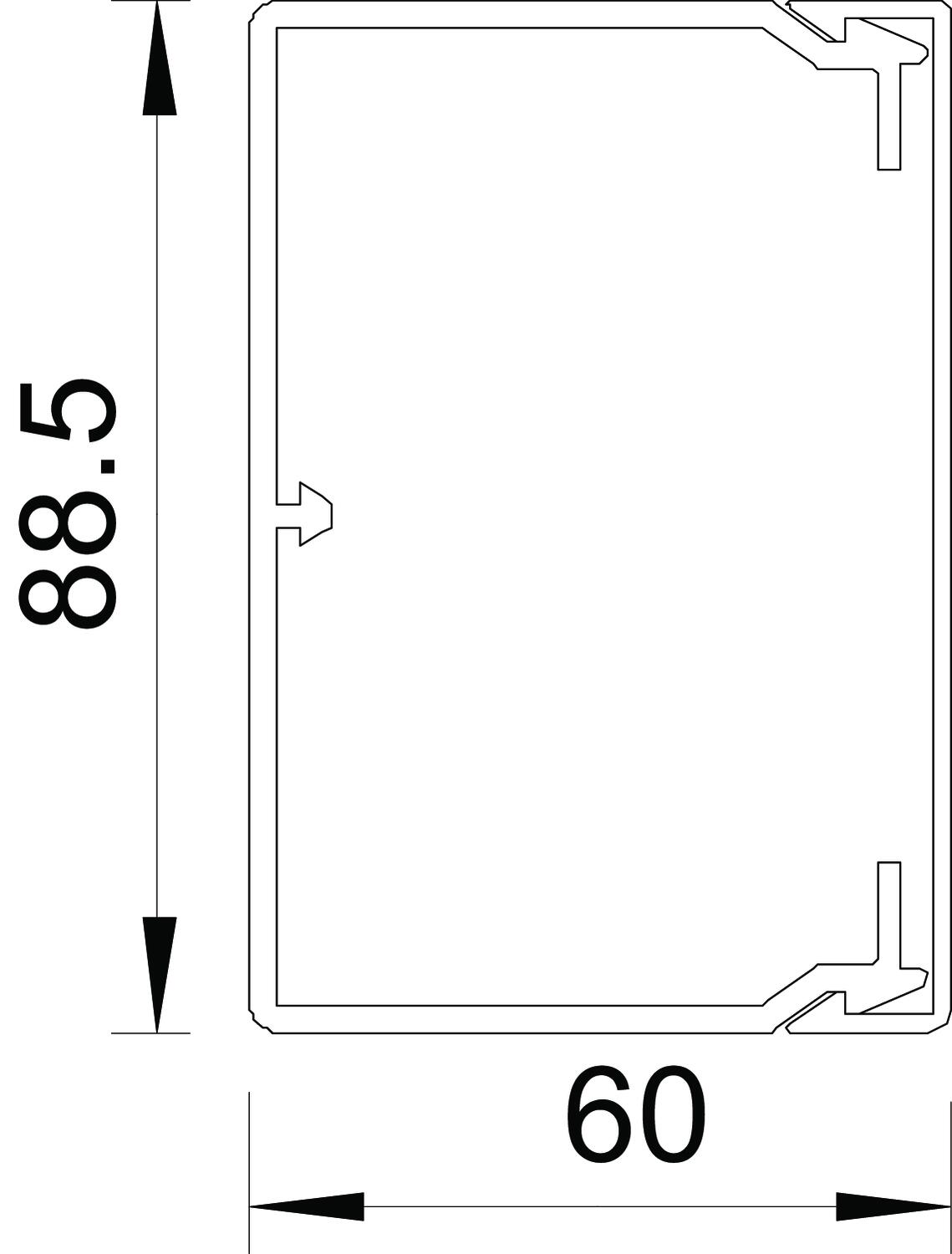

Dimension	60x90x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	60 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	24
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	20
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	18
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	4236 mm²
Version, cable trunking cover	Loose
Width	90 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK60090RW	2000 mm	90 mm	60 mm	Pure white; RAL 9010	6191207	m	24 m
WDK60090CW	2000 mm	90 mm	60 mm	Cream; RAL 9001	6021913	m	24 m
WDK60090GR	2000 mm	90 mm	60 mm	Stone grey; RAL 7030	6022006	m	24 m
WDK60090LGR	2000 mm	90 mm	60 mm	Light grey; RAL 7035	6027113	m	24 m

Accessories

Products	Types	Item no.	Quantity	SSU

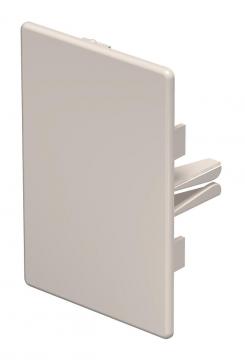

End piece, trunking type WDK 60090	WDK HE60090CW	6162819	piece	10 piece

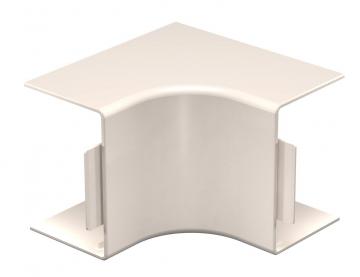

Internal corner cover, trunking type WDK 60090	WDK HI60090CW	6160328	piece	2 piece

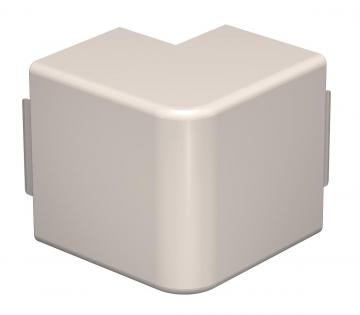

External corner cover, trunking type WDK 60090	WDK HA60090CW	6160913	piece	2 piece

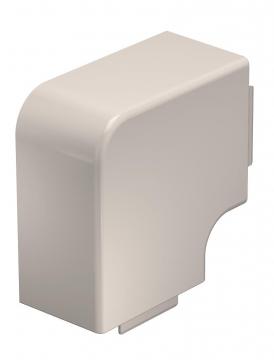

Flat angle cover, trunking type WDK 60090	WDK HF60090CW	6161510	piece	2 piece
Partition for WDK trunking, trunking height 60 mm	2371 60	6023118	m	2 m
Cover clip for WDK trunking, trunking width 90 mm	2370 90	6023509	piece	20 piece
