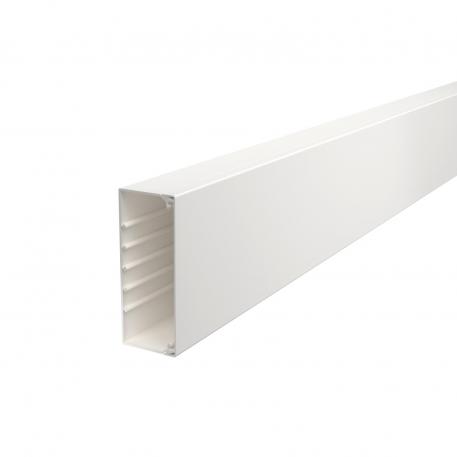

Trunking, type WDK 60150 2000 | 150 | 60 | Pure white; RAL 9010

Trunking, type WDK 60150

Item no. 6191231 | EAN 4012196491230

Item no. / Types

Length	2000 mm

Width	150 mm

Height	60 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation is possible with the accessory mounting box, type 2390.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	3,866 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

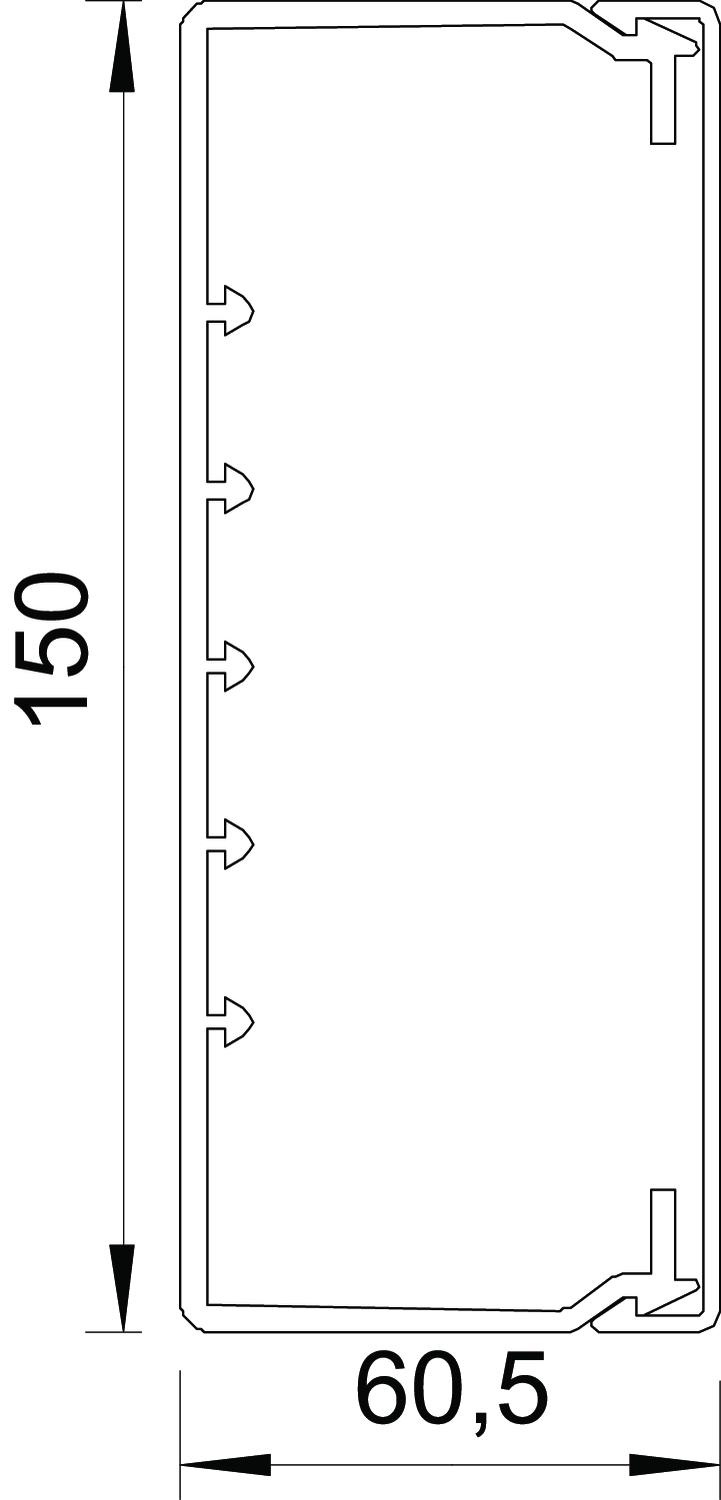

Dimension	60x150x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	60 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	40
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	33
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	31
Number of insertable partitions	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	7002 mm²
Version, cable trunking cover	Loose
Width	150 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK60150RW	2000 mm	150 mm	60 mm	Pure white; RAL 9010	6191231	m	8 m
WDK60150CW	2000 mm	150 mm	60 mm	Cream; RAL 9001	6021883	m	8 m
WDK60150GR	2000 mm	150 mm	60 mm	Stone grey; RAL 7030	6022030	m	8 m
WDK60150LGR	2000 mm	150 mm	60 mm	Light grey; RAL 7035	6027156	m	8 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

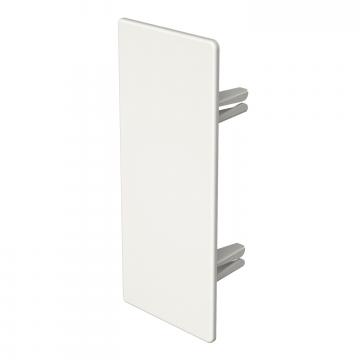

End piece, trunking type WDK 60150	WDK HE60150RW	6193323	piece	10 piece

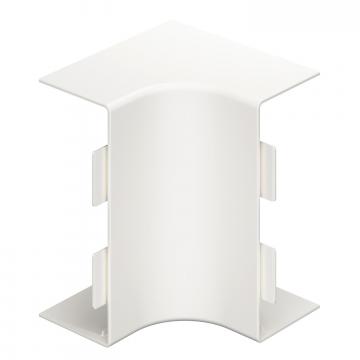

Internal corner cover, trunking type WDK 60150	WDK HI60150RW	6192068	piece	2 piece

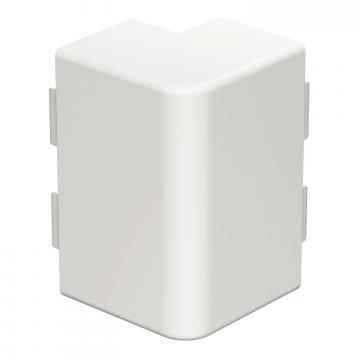

External corner cover, trunking type WDK 60150	WDK HA60150RW	6192351	piece	2 piece

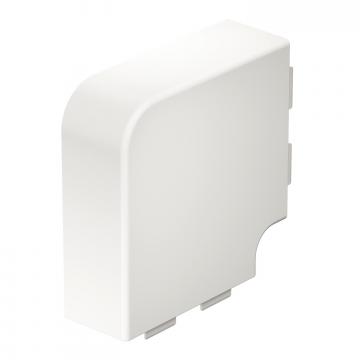

Flat angle cover, trunking type WDK 60150	WDK HF60150RW	6192955	piece	2 piece
Partition for WDK trunking, trunking height 60 mm	2371 60	6023118	m	2 m
WDK device socket, type 2390	2390	6023207	piece	5 piece
WDK CEE device socket	2392	6024009	piece	5 piece
WDK CEE adapter flange 16 A	2393 16	6024025	piece	5 piece
WDK CEE adapter flange 32 A	2393 32	6024033	piece	5 piece

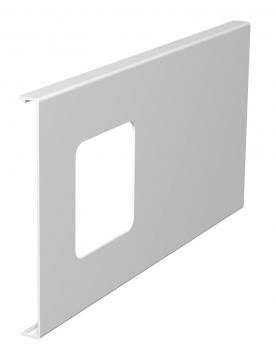

Cover for single accessory mounting box for WDK trunking, trunking height 150 mm	D2-1 150RW	6194052	piece	1 piece

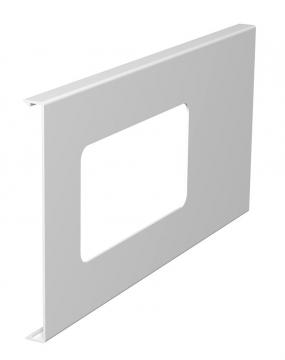

Cover for double accessory mounting box for WDK trunking, trunking height 150 mm	D2-2 150RW	6194125	piece	1 piece
Cover for triple accessory mounting box for WDK trunking, trunking height 150 mm	D2-3 150RW	6194206	piece	10 piece

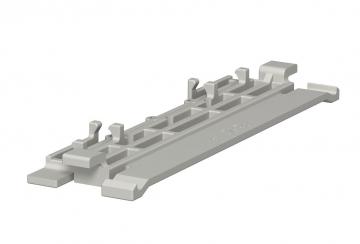

Cover clip for WDK trunking, trunking width 150 mm	2370 150	6023533	piece	20 piece
