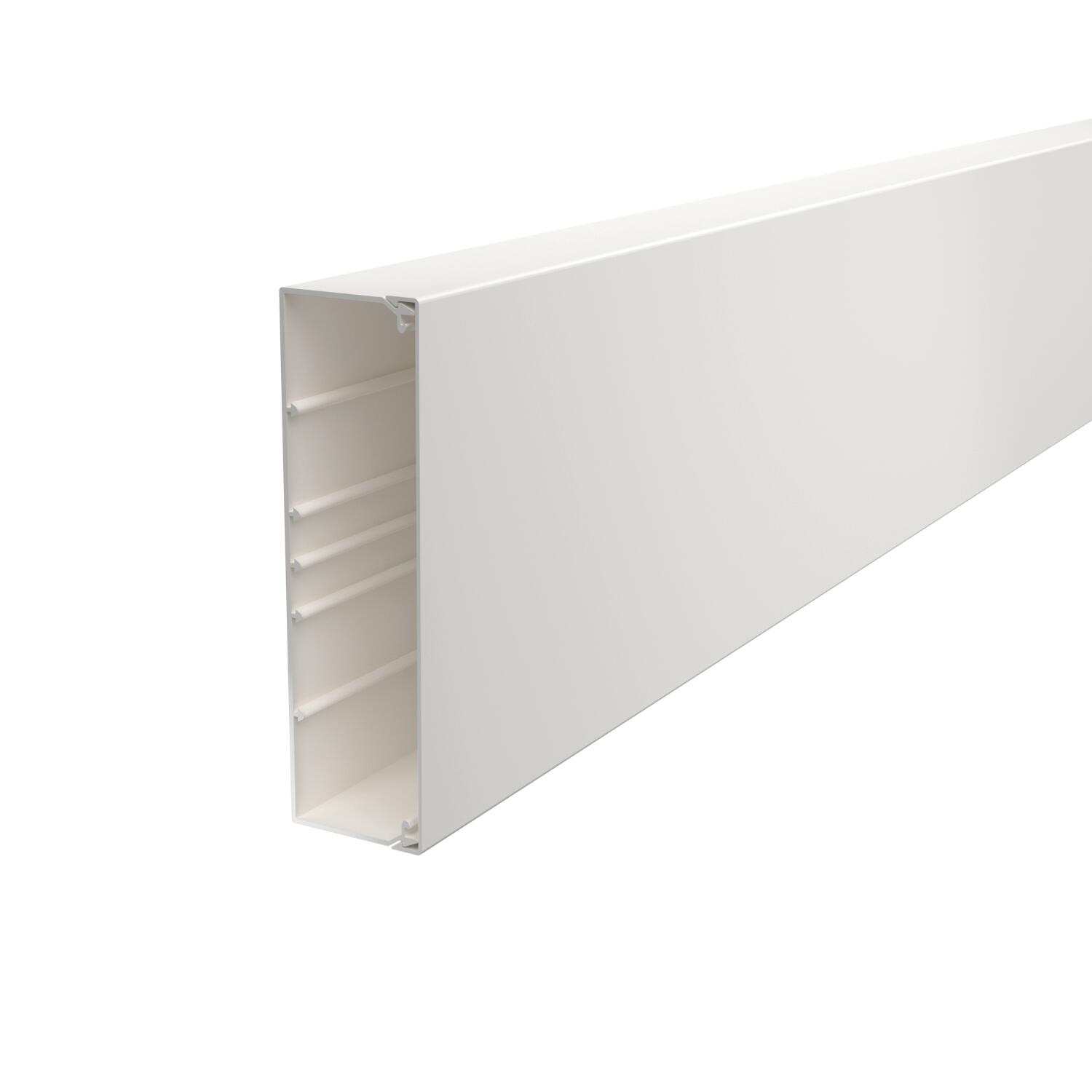

Trunking, type WDK 60210 2000 | 210 | 60 | Pure white; RAL 9010

Trunking, type WDK 60210

Item no. 6191266 | EAN 4012196794478

Item no. / Types

Length	2000 mm

Width	210 mm

Height	60 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation is possible with the accessory mounting box, type 2390.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	4,58 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

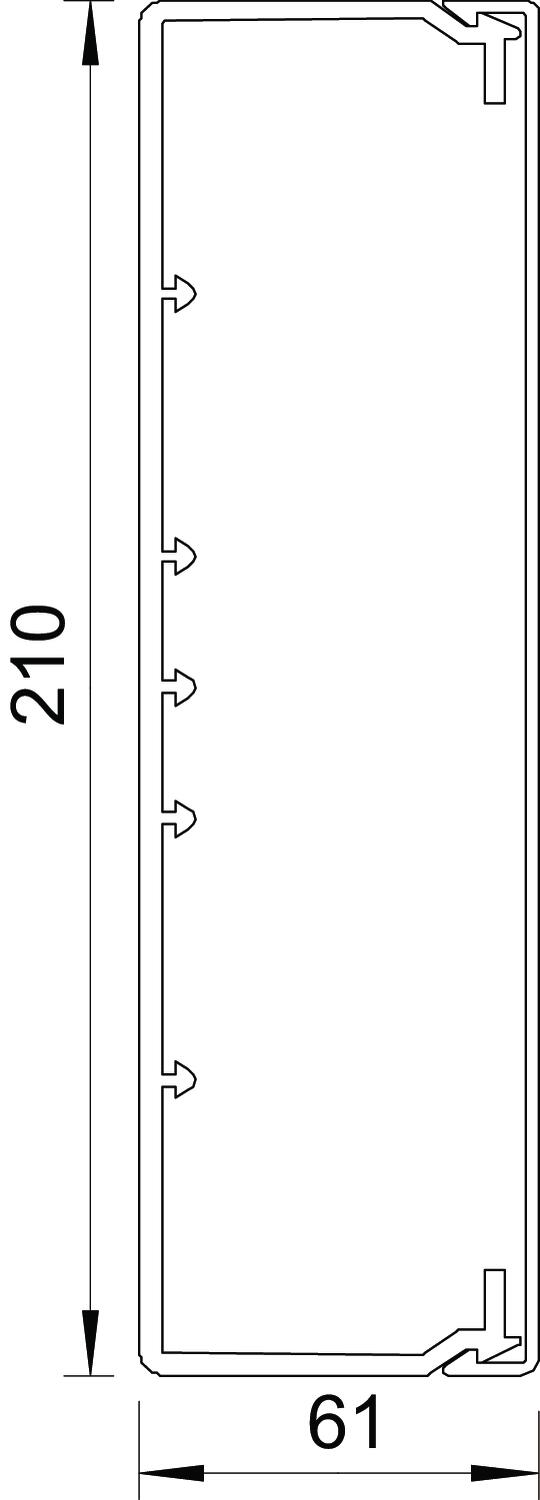

Dimension	60x210x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	60 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	58
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	48
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	44
Number of insertable partitions	3
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	10030 mm²
Version, cable trunking cover	Loose
Width	210 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK60210RW	2000 mm	210 mm	60 mm	Pure white; RAL 9010	6191266	m	8 m
WDK60210CW	2000 mm	210 mm	60 mm	Cream; RAL 9001	6021875	m	8 m
WDK60210GR	2000 mm	210 mm	60 mm	Stone grey; RAL 7030	6022065	m	8 m
WDK60210LGR	2000 mm	210 mm	60 mm	Light grey; RAL 7035	6027172	m	8 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

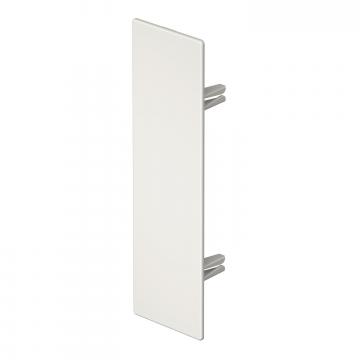

End piece, trunking type WDK 60210	WDK HE60210RW	6193358	piece	10 piece

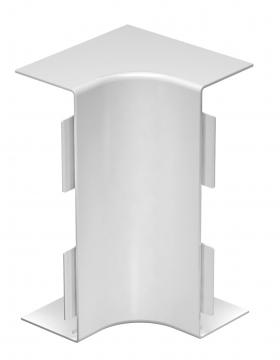

Internal corner cover, trunking type WDK 60210	WDK HI60210RW	6192084	piece	2 piece

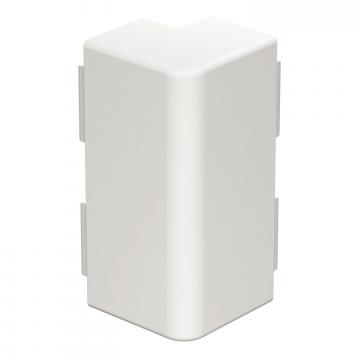

External corner cover, trunking type WDK 60210	WDK HA60210RW	6192386	piece	2 piece

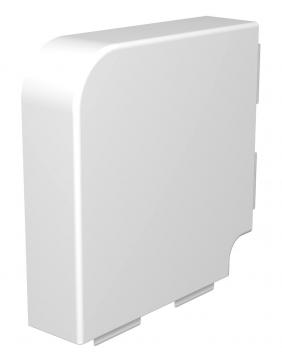

Flat angle cover, trunking type WDK 60210	WDK HF60210RW	6192971	piece	2 piece
Partition for WDK trunking, trunking height 60 mm	2371 60	6023118	m	2 m
WDK device socket, type 2390	2390	6023207	piece	5 piece
WDK CEE device socket	2392	6024009	piece	5 piece
WDK CEE adapter flange 16 A	2393 16	6024025	piece	5 piece
WDK CEE adapter flange 32 A	2393 32	6024033	piece	5 piece

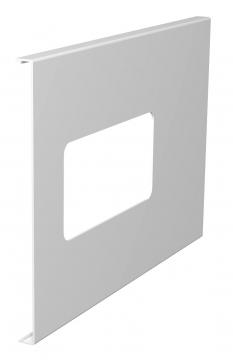

Cover for double accessory mounting box for WDK trunking, trunking height 210 mm	D2-2 210RW	6194141	piece	1 piece
Cover clip for WDK trunking, trunking width 210 mm	2370 210	6023576	piece	20 piece
