Trunking, type WDK 60230 2000 | 230 | 60 | Pure white; RAL 9010

Trunking, type WDK 60230

Item no. 6191274 | EAN 4012196799459

Item no. / Types

Length	2000 mm

Width	230 mm

Height	60 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation possible with underfloor box, type 2390

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	5,3997 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

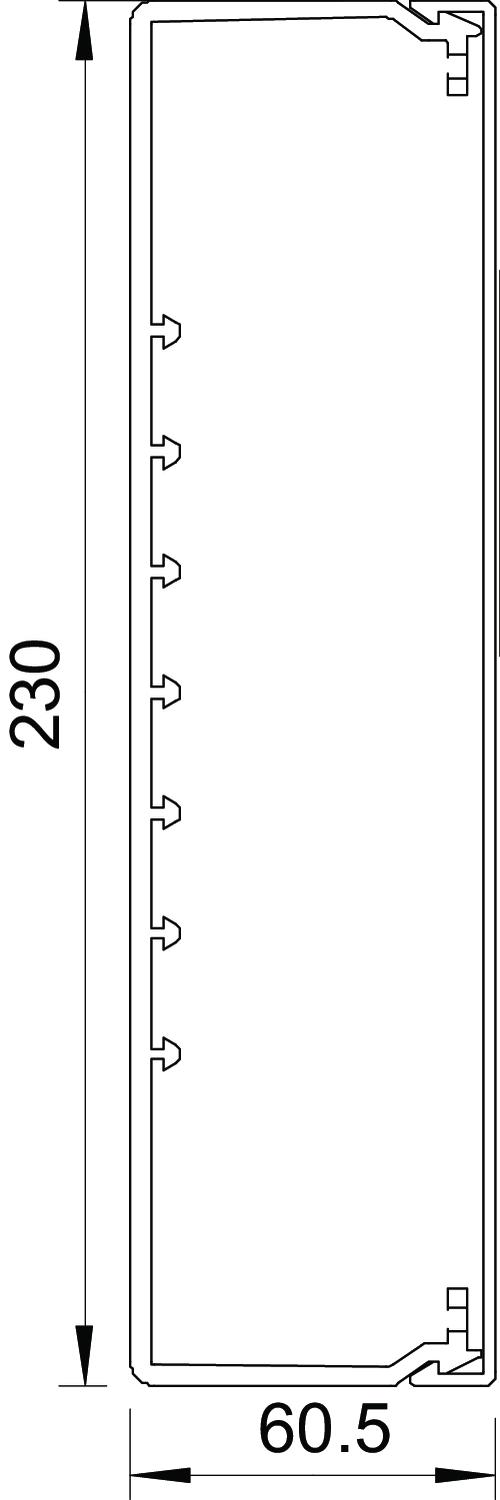

Dimension	60x230x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	60 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	62
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	52
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	47
Number of insertable partitions	3
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	10794 mm²
Version, cable trunking cover	Loose
Width	230 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK60230RW	2000 mm	230 mm	60 mm	Pure white; RAL 9010	6191274	m	8 m
WDK60230CW	2000 mm	230 mm	60 mm	Cream; RAL 9001	6021891	m	8 m
WDK60230GR	2000 mm	230 mm	60 mm	Stone grey; RAL 7030	6022057	m	8 m
WDK60230LGR	2000 mm	230 mm	60 mm	Light grey; RAL 7035	6027180	m	8 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

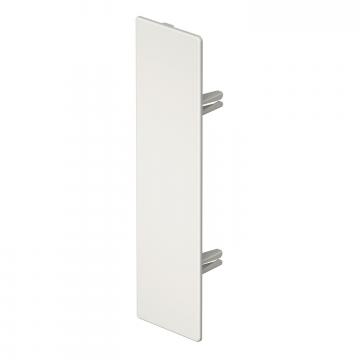

End piece, trunking type WDK 60230	WDK HE60230RW	6193366	piece	10 piece

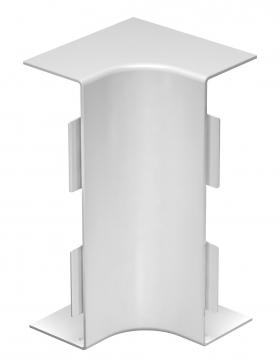

Internal corner cover, trunking type WDK 60230	WDK HI60230RW	6192092	piece	2 piece

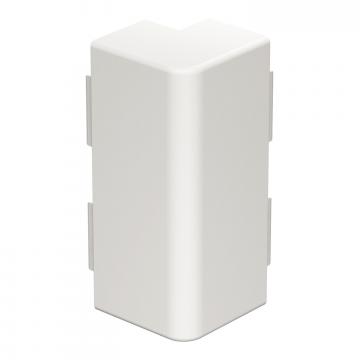

External corner cover, trunking type WDK 60230	WDK HA60230RW	6192394	piece	2 piece

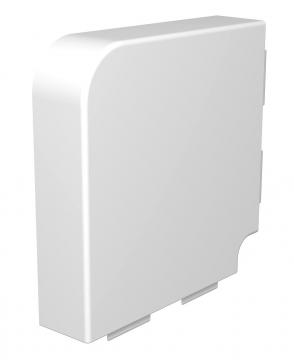

Flat angle cover, trunking type WDK 60230	WDK HF60230RW	6192998	piece	2 piece
Partition for WDK trunking, trunking height 60 mm	2371 60	6023118	m	2 m
Cover clip for WDK trunking, trunking width 230 mm	2370 230	6023584	piece	20 piece
