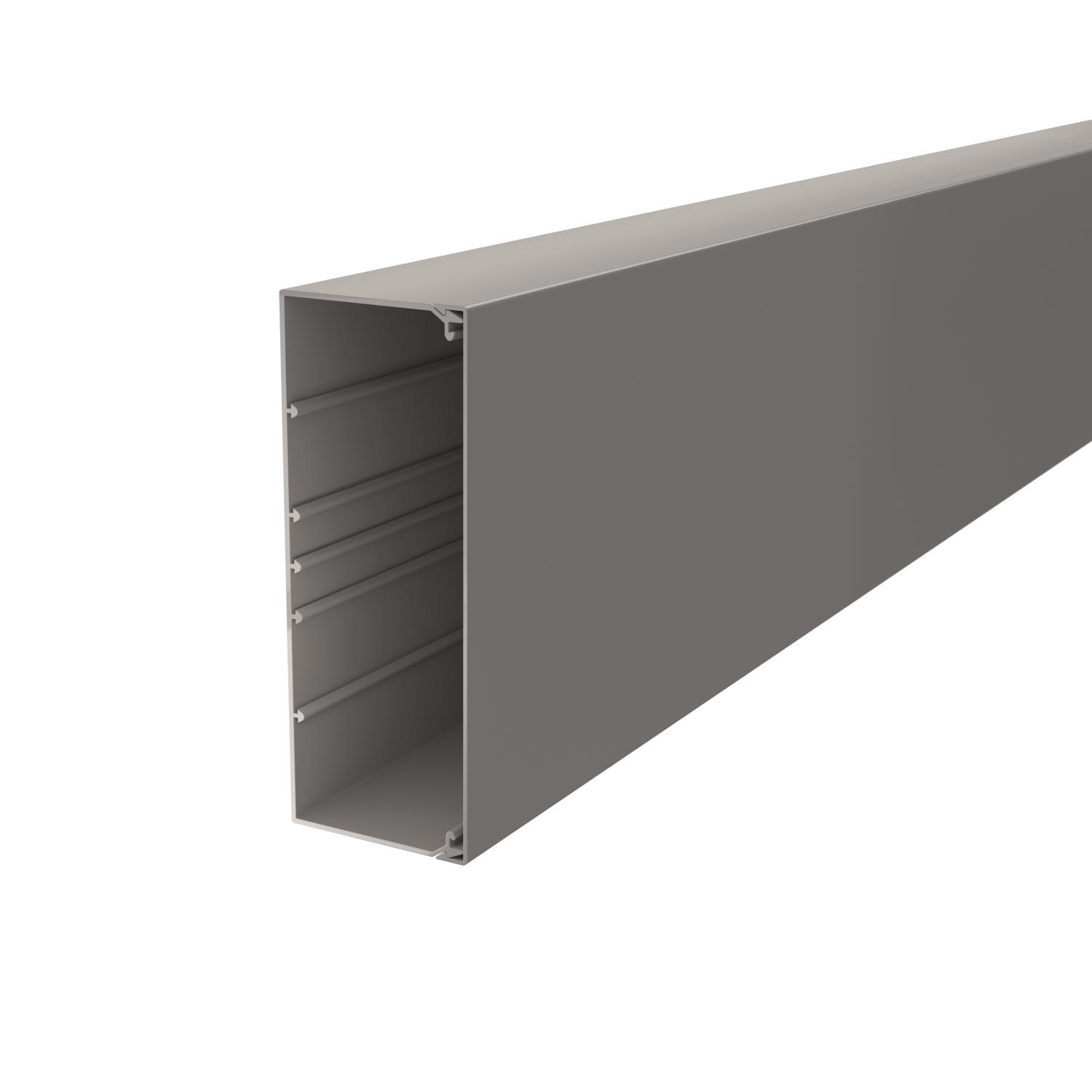

Trunking, type WDK 80210 2000 | 210 | 80 | Stone grey; RAL 7030

Trunking, type WDK 80210

Item no. 6026192 | EAN 4012196029891

Item no. / Types

Length	2000 mm

Width	210 mm

Height	80 mm

Colour

Product description

Product description

Wall installation trunking as trunking base with base perforation and matching trunking cover.
Four cover fixing devices included.
The lid clamp can be moved along the entire length of the trunking.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	5,6007 kg CO2e / 1 Meter
Colour	Stone grey; RAL 7030
Delivery on a roll	no

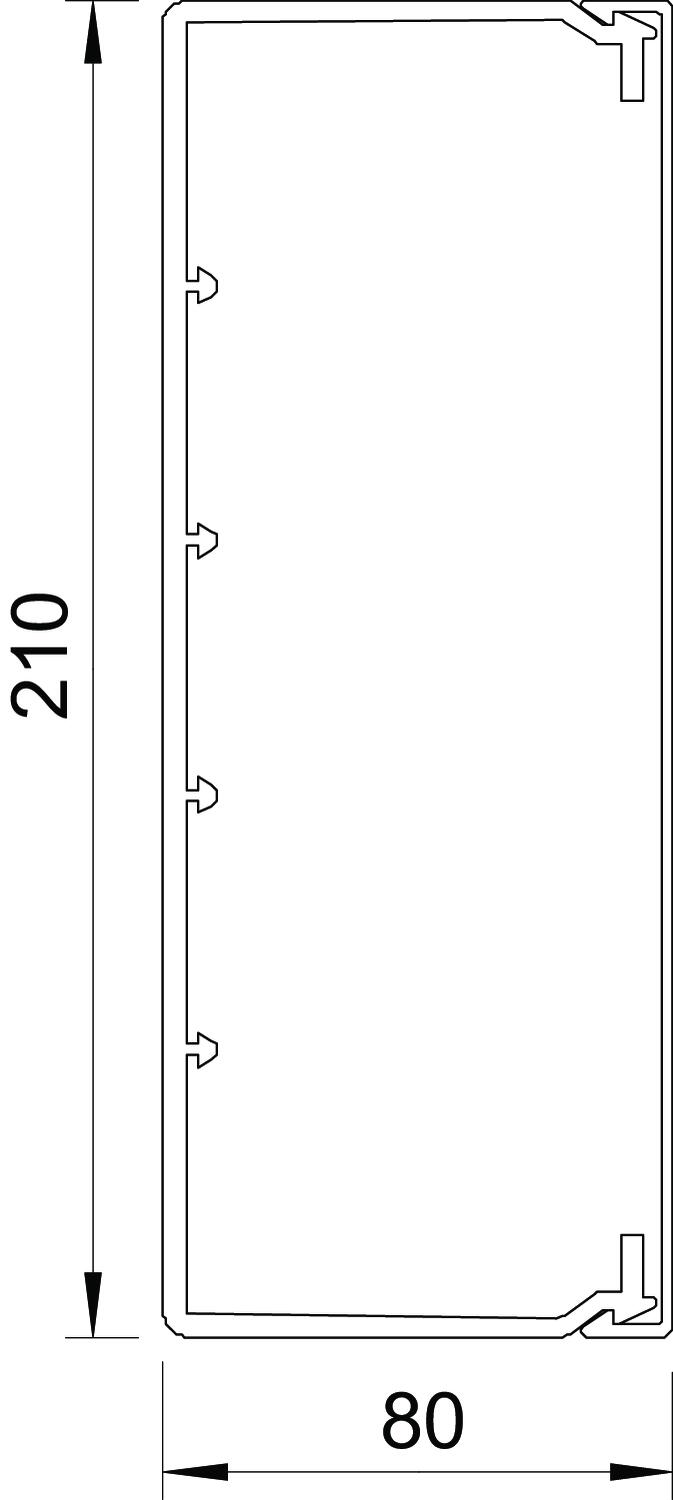

Dimension	80x210x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	80 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	80
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	67
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	61
Number of insertable partitions	2
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	13980 mm²
Version, cable trunking cover	Loose
Width	210 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK80210RW	2000 mm	210 mm	80 mm	Pure white; RAL 9010	6191312	m	8 m
WDK80210GR	2000 mm	210 mm	80 mm	Stone grey; RAL 7030	6026192	m	8 m
WDK80210CW	2000 mm	210 mm	80 mm	Cream; RAL 9001	6026206	m	8 m
WDK80210LGR	2000 mm	210 mm	80 mm	Light grey; RAL 7035	6027237	m	8 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

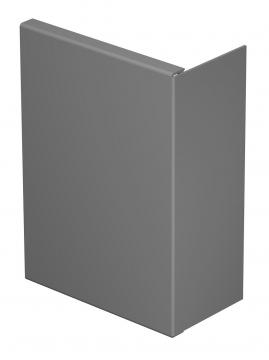

End piece, trunking type WDK 80210	WDK HE80210GR	6024874	piece	10 piece

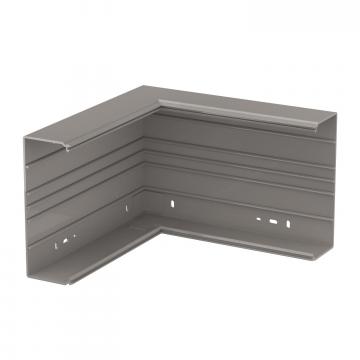

Internal corner cover, trunking type WDK 80210	WDK I80210GR	6193860	piece	1 piece

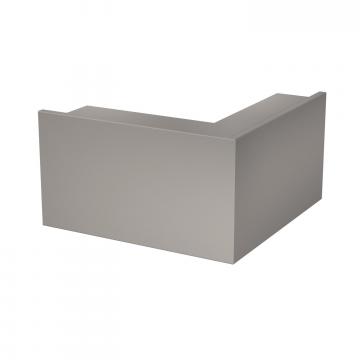

External corner, for trunking, type WDK 80210	WDK A80210GR	6161104	piece	1 piece

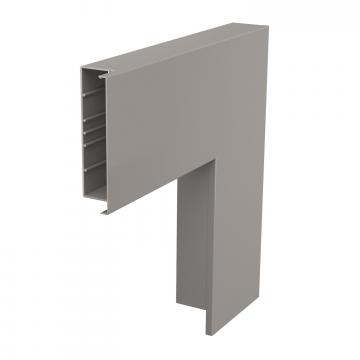

Flat angle, trunking type WDK 80210	WDK F80210GR	6192107	piece	1 piece
Partition for WDK trunking, trunking height 80 mm	2371 80	6026982	m	2 m
Cover clip for WDK trunking, trunking width 210 mm	2370 210	6023576	piece	20 piece
