Trunking, type WDKH 20020
Item no. 6175460 | EAN 4012195817789
- Product description
-
Product descriptionTrunking cover and base with base perforation made of halogen-free plastic.
During installation, ensure that only halogen-free accessories and fastening materials are used.
-
- Technical data
-
Technical data

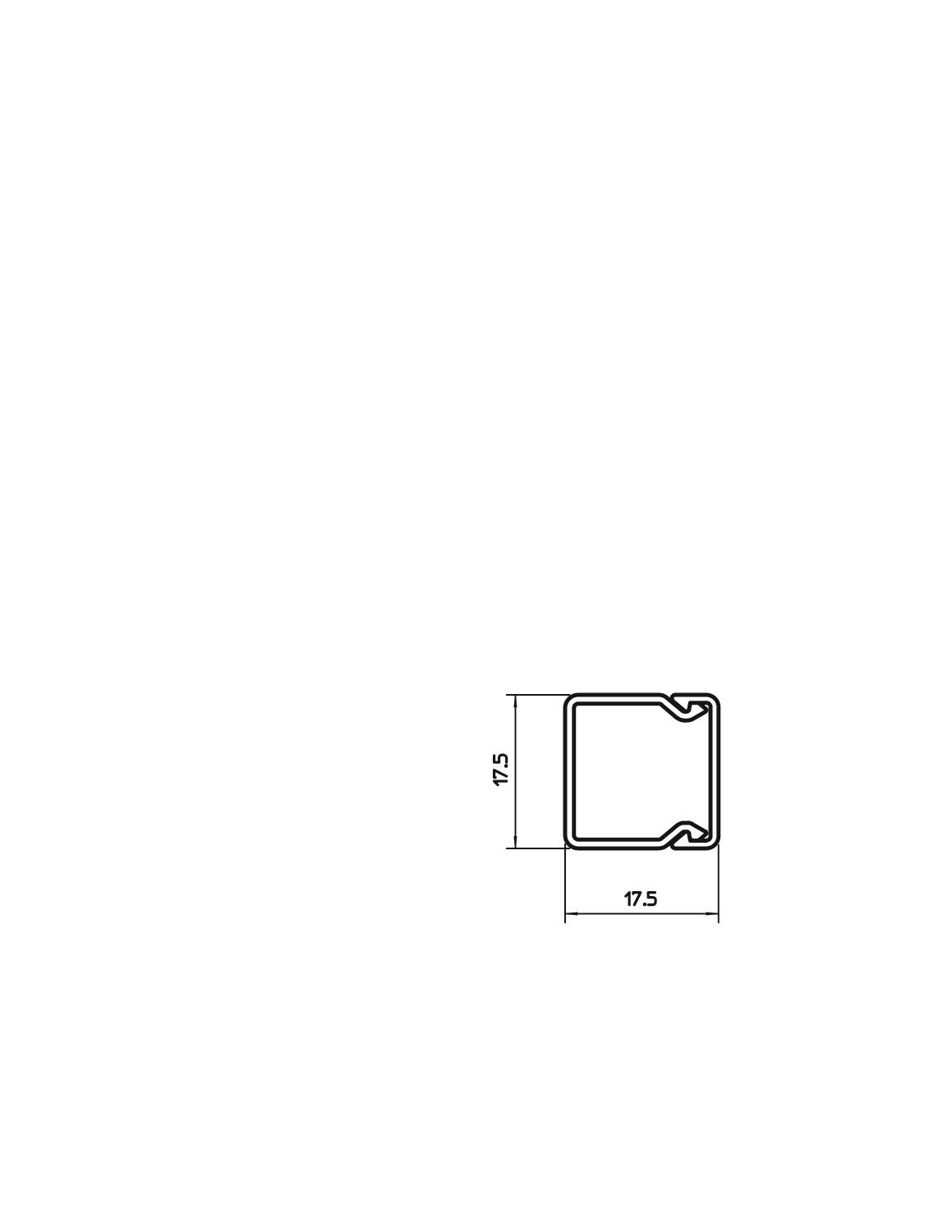

Antibacterial treatment no Base perforation with base perforation Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 0,513 kg CO2e / 1 Meter Colour Light grey; RAL 7035 Delivery on a roll no Dimension 20x20x2000 Duct connector no Fastening type Base perforation Halogen-free yes Height 17,4 mm Length 2000 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) 1 Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Usable cross-section 220 mm² Version, cable trunking cover Loose Width 17,4 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
End piece, trunking type WDKH 20020
WDKH-E20020LGR 6175928 10 piece
Internal corner cover, trunking type WDKH 20020
WDKH-I20020LGR 6175964 4 piece
External corner cover, trunking type WDKH 20020
WDKH-A20020LGR 6176000 4 piece
Flat angle cover, trunking type WDKH 20020
WDKH-F20020LGR 6176036 4 piece - Downloads
-
Data sheet WDKH-20020LGR / 6175460 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-20020LGR / 6175460 , 0.10MB , pdfUK Declaration of Conformity WDKH-20020LGR / 6175460 , 0.09MB , pdfREACH Declaration of conformity WDKH-20020LGR / 6175460 , 0.12MB , pdfRoHS Declaration of conformity WDKH-20020LGR / 6175460 , 0.12MB , pdfLabel approval VDE symbol approval, WDK , 0.11MB , pdfLabel approval VDE symbol approval, WDK-H , 0.25MB , pdfMounting instructions Cable trunking WDK , 6.31MB , pdfNo invitation to tender text is available for this product.
