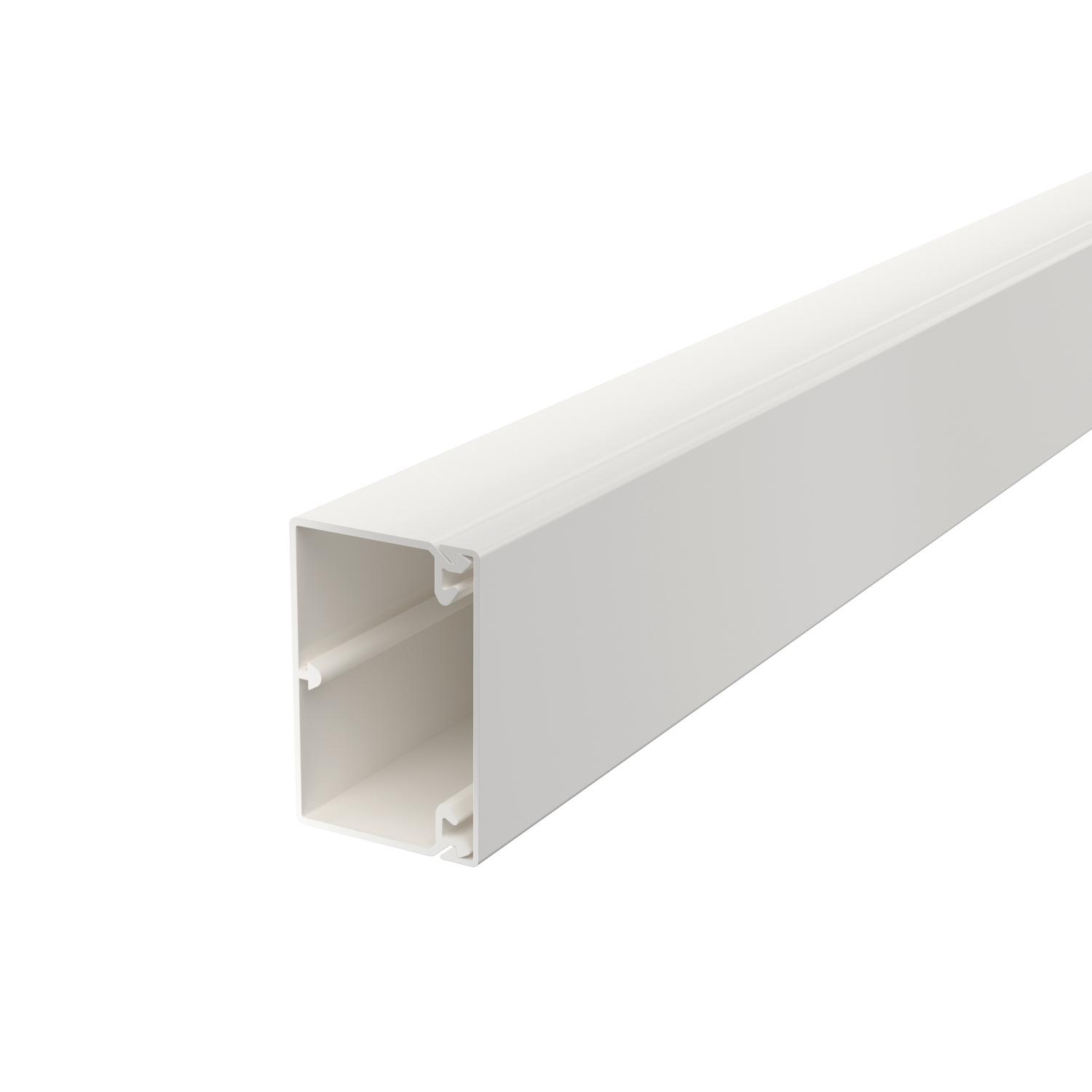

Trunking, type WDKH 40060

Item no. / Types

Length	2000 mm

Width	60 mm

Height	40 mm

Colour

Product description

Product description

Trunking cover and base with base perforation made of halogen-free plastic including cover fixing devices.

During installation, ensure that only halogen-free accessories and fastening materials are used.

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	2,6 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Delivery on a roll	no

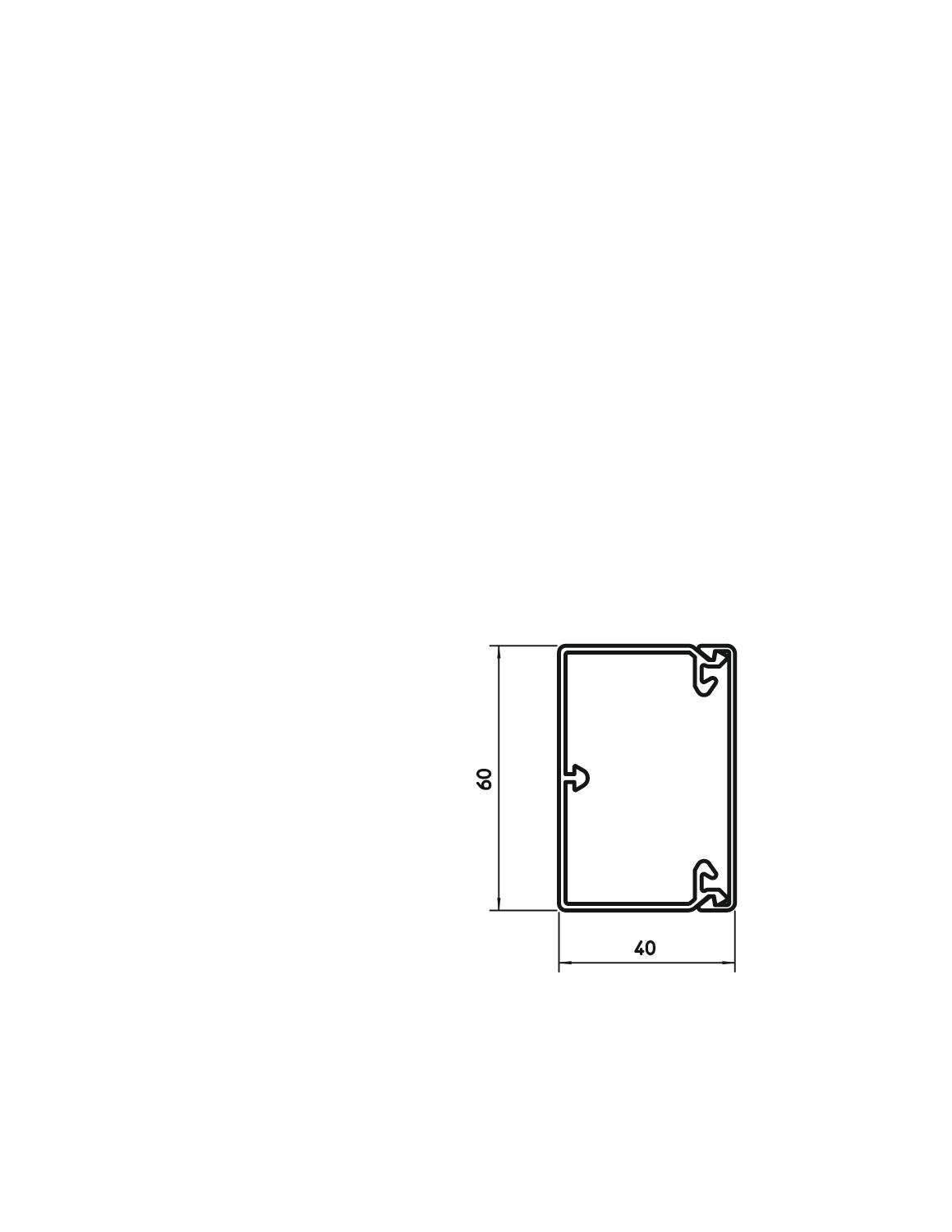

Dimension	40x60x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	40 mm
Length	2000 mm

Maintain electrical functions	no
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	8
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Protective film	no
Usable cross-section	1500 mm²
Version, cable trunking cover	Loose
Width	60 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDKH-40060RW	2000 mm	60 mm	40 mm	Pure white; RAL 9010	6175410	m	32 m
WDKH-40060LGR	2000 mm	60 mm	40 mm	Light grey; RAL 7035	6175466	m	32 m

Accessories

Products	Types	Item no.	Quantity	SSU

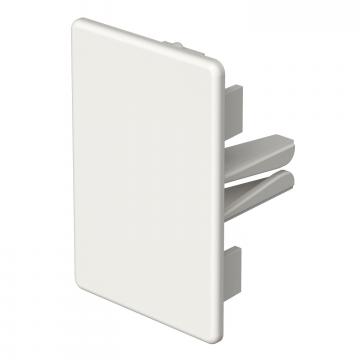

End piece, trunking type WDKH 40060	WDKH-E40060RW	6175558	piece	10 piece

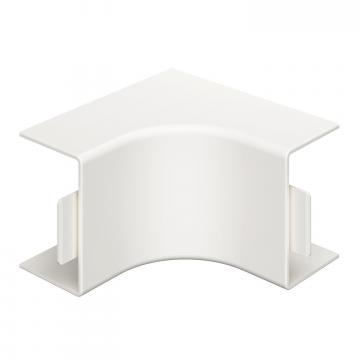

Internal corner cover, trunking type WDKH 40060	WDKH-I40060RW	6175594	piece	2 piece

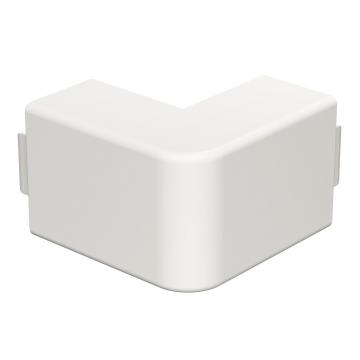

External corner cover, trunking type WDKH 40060	WDKH-A40060RW	6175630	piece	2 piece

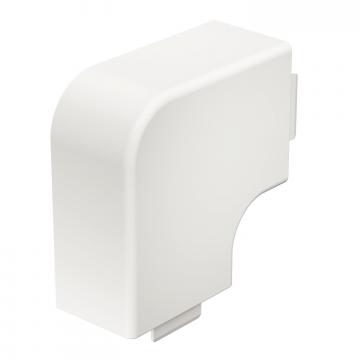

Flat angle cover, trunking type WDKH 40060	WDKH-F40060RW	6175666	piece	2 piece

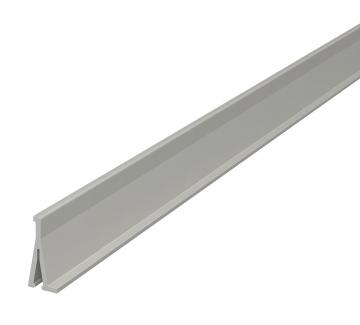

Partition, halogen-free, for trunking height 40 mm	WDKH-TW40LGR	6175500	m	2 m

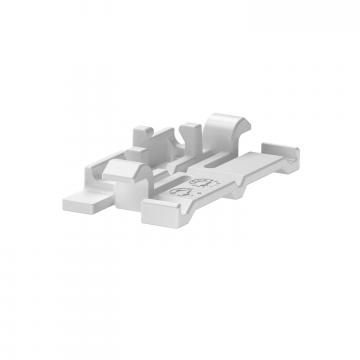

Cover clip for WDKH trunking, trunking width 60 mm	OTK H60	6176122	piece	10 piece
