Turn buckle to screw for cover DBKR
morepic-1 morepic-2

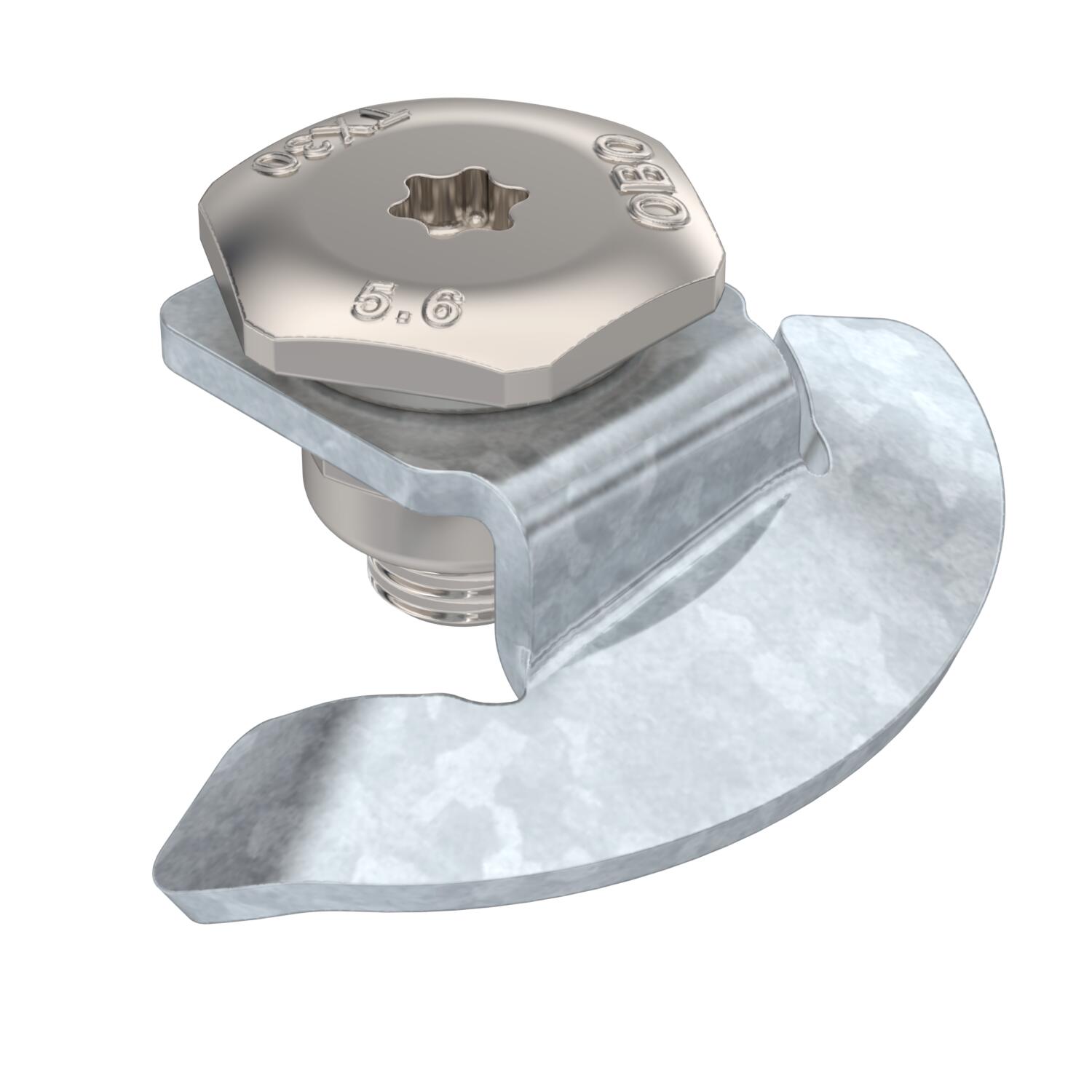

Turn buckle to screw for cover DBKR

Item no. 6065030 | EAN 4012197484750

Product description
Product description
Turn buckle for the fastening of chequer plate covers, type DBKR, onto walkable cable trays. Retro-installation on the cover with screws, with Torx drive TX30 or external hex size 19. At a cover length of 3 m use 6 turn buckles for the fastening, 3 turn buckles per long side.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc

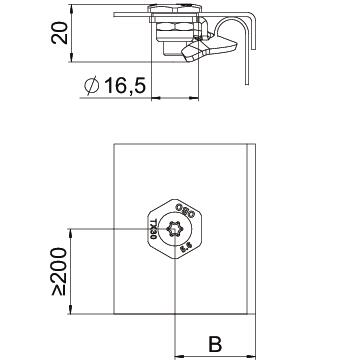

Dimension Ø21 mm
Dimension B 27 mm
Material Steel
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Hot-dip galvanised
All types

All types

Types Item no. Quantity SSU
DRL H S BKRS FT 6065030
20 piece
Downloads

Download

Download

EU declaration of conformity DRL H S BKRS FT / 6065030 , 0.10MB , pdf
Download

No invitation to tender text is available for this product.
