UDS underfloor connection sockets
Item no. 7400417 | EAN 4012196435555
- Product description
-

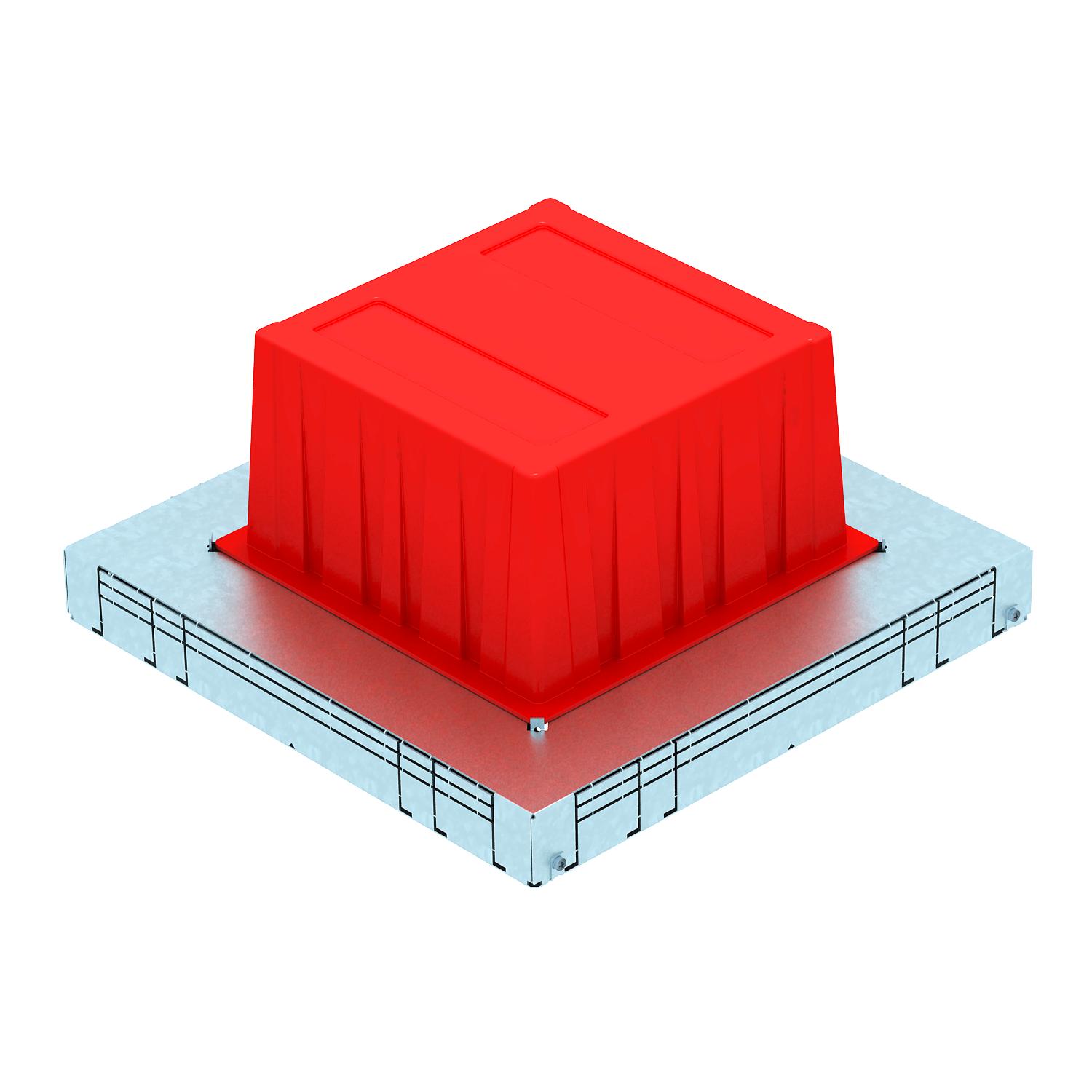

Product descriptionUnderfloor connection socket with fixed, unchangeable installation opening for an installation unit of nominal size 9. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor socket possesses installation openings for 2 or 3-compartment underfloor ducts made of sheet steel on all four sides.
-
- Technical data
-
Technical data

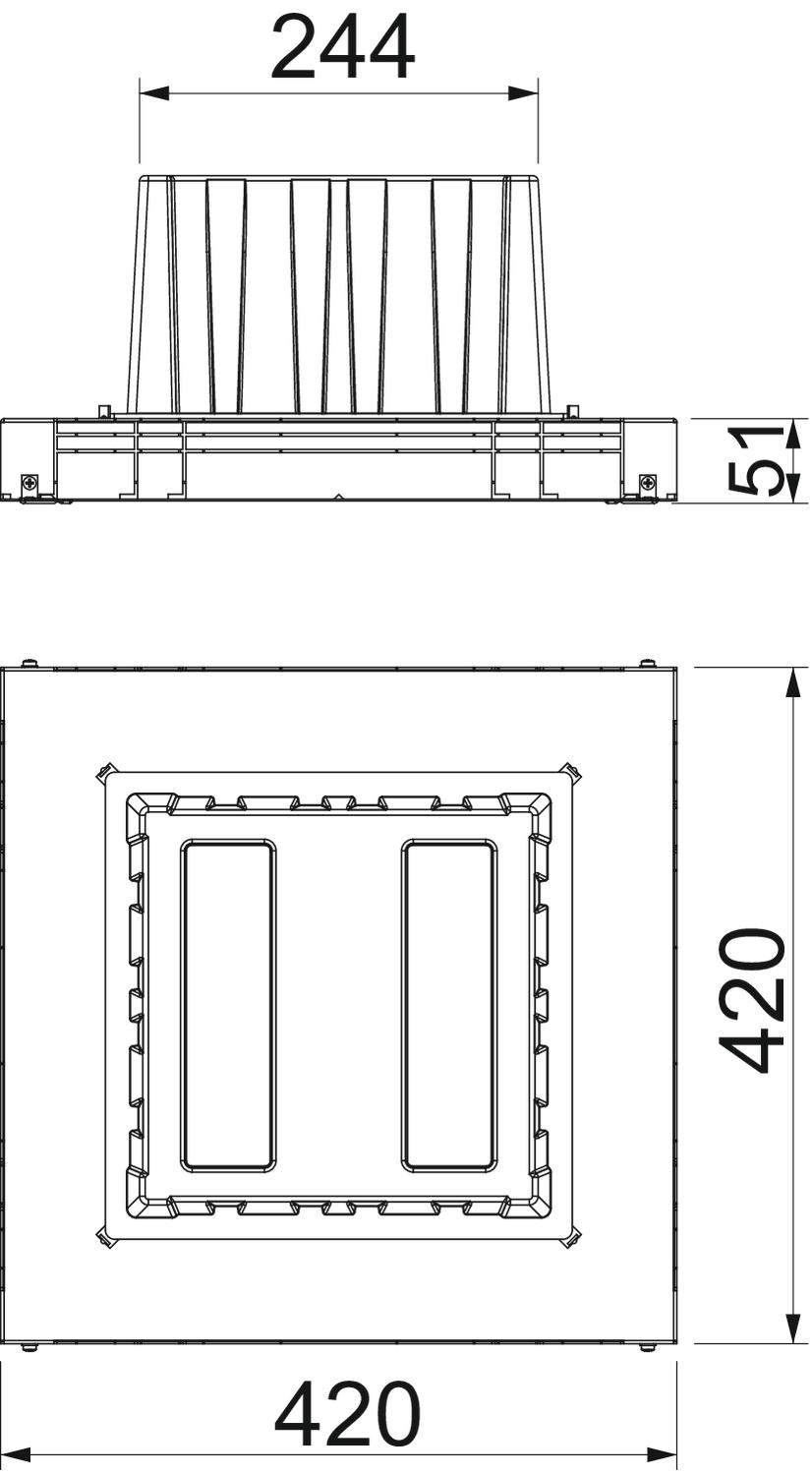

CO2 Footprint (GWP) Cradle-to-Gate 17,8959 kg CO2e / 1 Piece Dimension 420x420x200 Dimension A 420 mm Dimension b 244 mm Dimension B 420 mm Dimension h 51 mm Duct height, min. 28 mm Expansion option For installation of accessories For pipe connection no Installation opening for flush-mount unit Square Installation opening for on-floor tank no Material Steel Material thickness 1 mm Minimum screed height 90 Nominal size for device installation units 9 Screed height, max. 200 mm Screed height, min. 90 mm Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts yes Surface Strip galvanized Trunking height, max. 48 mm Trunking width, max. 350 mm Trunking width, min. 190 mm - All types
- Downloads
-
Data sheet UDSSD 35048 9 / 7400417 , 0.19MB , pdfEU declaration of conformity UDSSD 35048 9 / 7400417 , 0.10MB , pdfREACH Declaration of conformity UDSSD 35048 9 / 7400417 , 0.12MB , pdfRoHS Declaration of conformity UDSSD 35048 9 / 7400417 , 0.12MB , pdfLabel approval VDE symbol approval, EÜK-SN , 0.18MB , pdf
