Underfloor box for GES9
Item no. 7427432 | EAN 4012195916963
- Product description
-
Product description

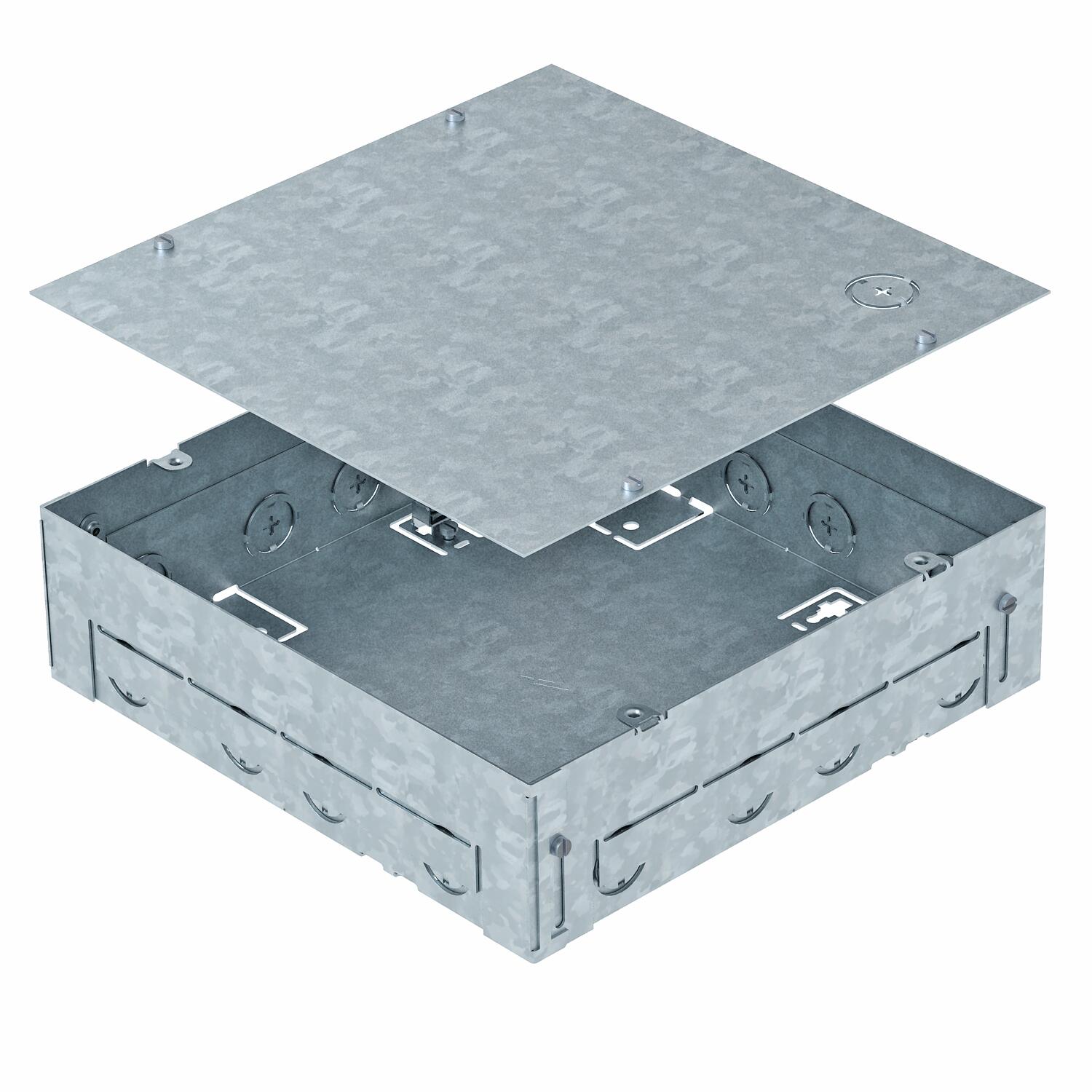

Square installation housing for one GES9-2 service outlet for use in screed floors for indoor use. With pre-marked insertion openings for pipelines (M25) on all four sides.
In the as-delivered state, the installation housing is closed with a mounting protection lid.

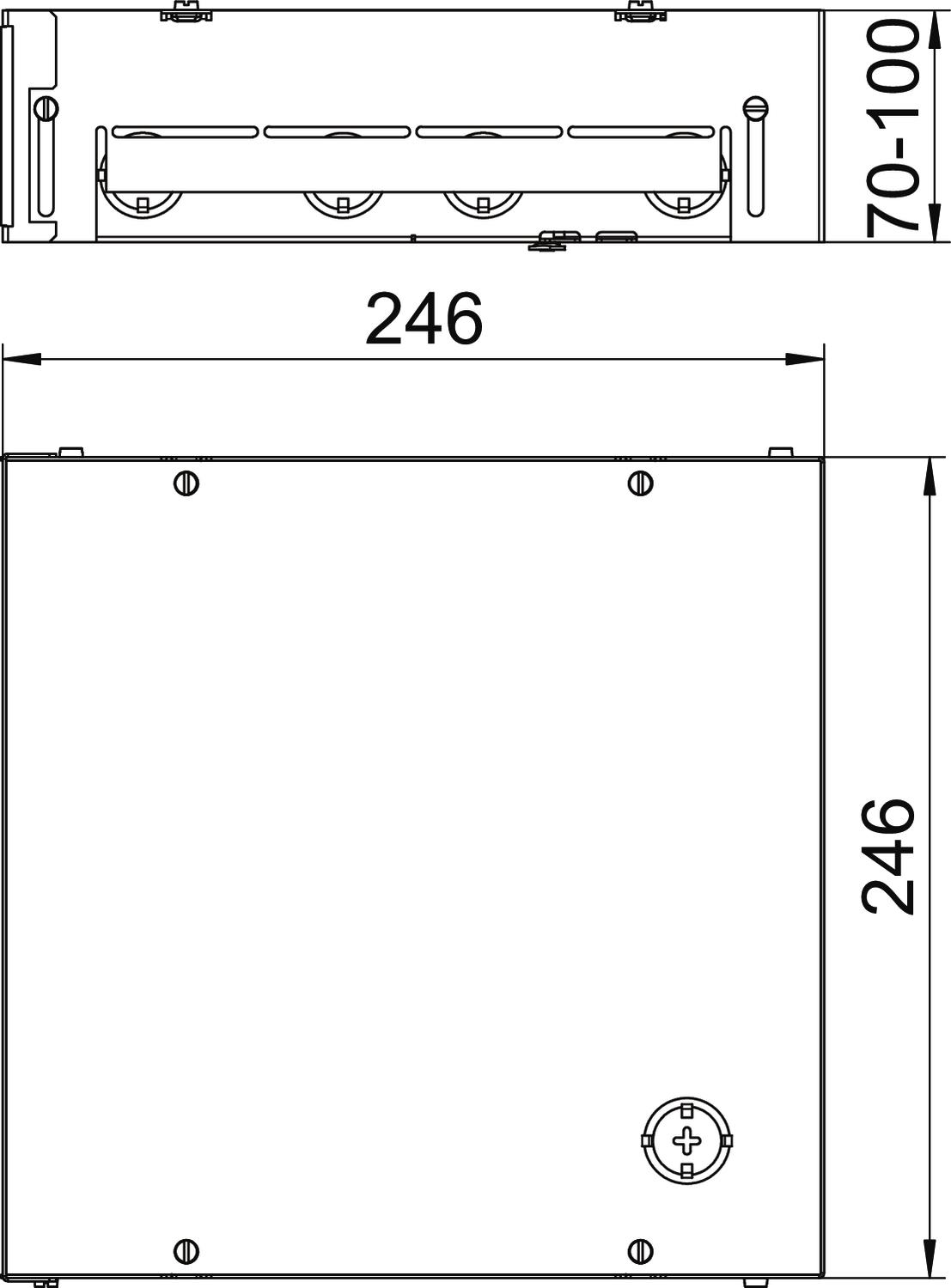

The minimum installation depth is 70 mm, the height-adjustment range +30 mm.
-
- Technical data
-
Technical data
Dimension 247x252x75 Material Steel Surface Strip galvanized Dimensions
Length 246 mm Width 246 mm - All types
- Downloads
-
Data sheet UDHOME BOX 9 / 7427432 , 0.30MB , pdfMounting instructions Mounting instructions, installation housing UDHOME Box 4/9 , 0.11MB , pdf
