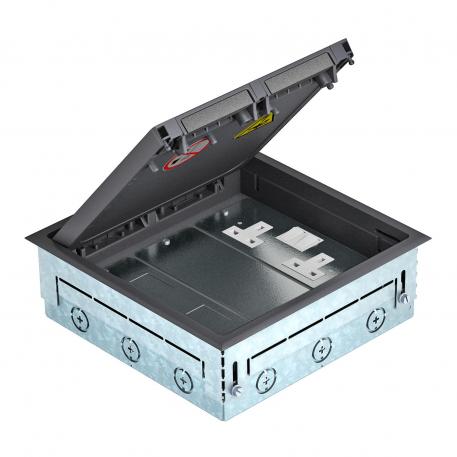

Underfloor box with GES9UGE

Name: Underfloor box with GES9UGE
Brand: OBO Bettermann
SKU: 7429699

Item no. 7429699 | EAN 4012196614165

Product description

Product description

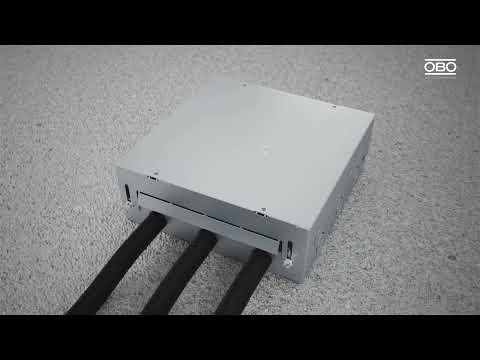

Square screed socket with GES9 UGE service outlet for use in screed floors in indoor areas. With pre-marked insertion openings for pipelines (M25) on all four sides. The delivery includes a cover plate APMT5 blank and a cover plate for 4 data connections of type LUJ6C as well as 1 cover plate APMT5 with double socket switched The minimum installation depth is 64 mm, the height-adjustment range +23 mm.

Technical data

Technical data

Cable outlet version	Swivellable cord outlet
CO2 Footprint (GWP) Cradle-to-Gate	12,7726 kg CO2e / 1 Piece
Colour	Iron grey; RAL 7011
Device support to accept mounting boxes	yes
Dimension	264x264x91
Floor care	Dry
Floor covering protection frame	yes
Floor covering thickness	10 mm
Floor height, max.	95 mm
Floor height, min.	72 mm
Frame version	Carpet protection frame
Heavy-duty version	no
Height-adjustment range, max.	85 mm
Height-adjustment range, min.	65 mm
Installation depth	72 mm
Installation system type	MT4
Length	264 mm
Length of external dimensions	264 mm
Material	Polyamide
Nominal size for device installation units	9

Number of installable devices	12
Number of mounting boxes	3
Opening mechanism	Handle
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP20
Protection rating IK code	IK08
Screed height, max.	85 mm
Screed height, min.	65 mm
Seal installation option	no
Suitable for cavity floor installation	no
Suitable for raised floor installation	no
Suitable for screed-covered underfloor ducts	no
Suitable for screed-flush closed underfloor ducts	no
Suitable for underfloor ducts	no
Suitable for wet care	no
Vertical load, large area	to 3,000 N
Vertical load, small area	to 2,000 N
Wide external dimensions	264 mm
Width	264 mm
With floor covering recess	yes
