Universal clamp for PV module mounting
Item no. 5901012 | EAN 4012197378301
- Product description
-

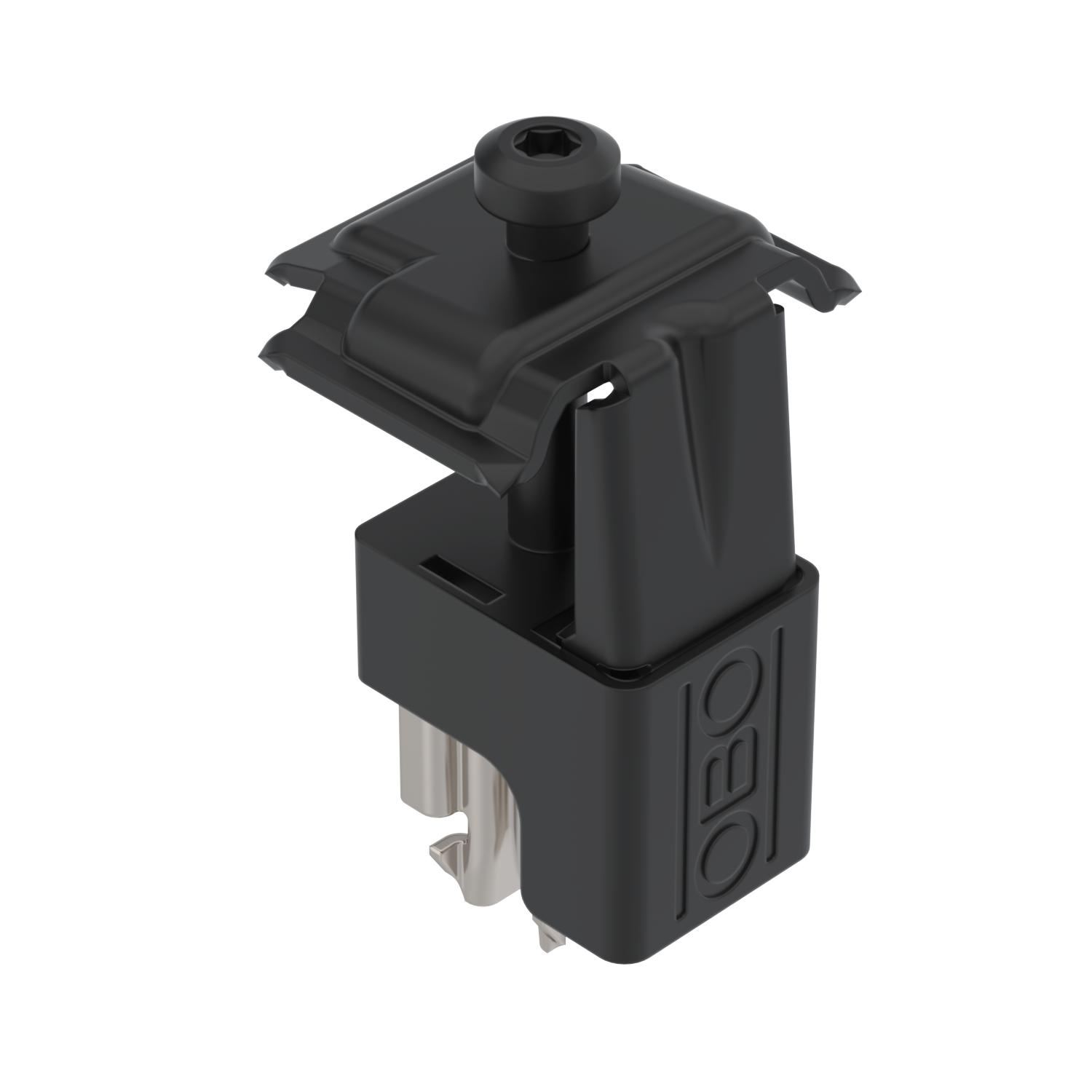

Product descriptionUniversal clamp for mounting photovoltaic modules on flat and pitched roofs, suitable as a clamp between 2 modules or as an end clamp. Lockable pre-fastening on TP 45 support profile and on STK and STL supports. Suitable for 10 mm slot width. Can be rotated through 90° after engaging. Screwable fastening of the PV module with Torx 30 key.
-
- Technical data
-
Technical data

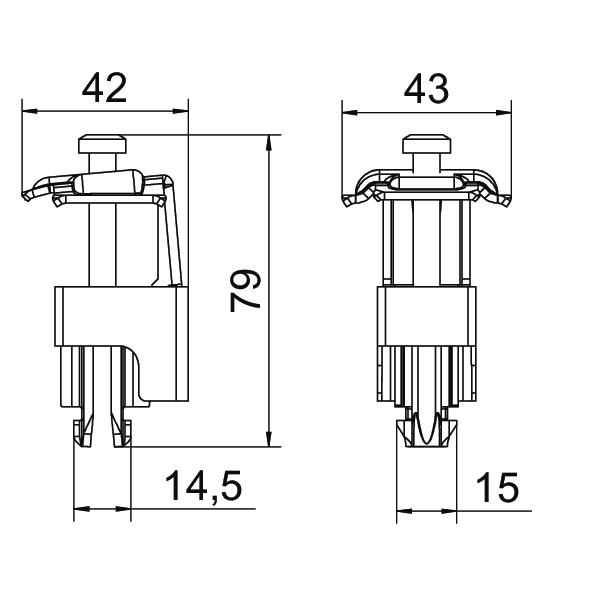

Adjustable yes CO2 Footprint (GWP) Cradle-to-Gate 0,4568 kg CO2e / 1 Piece Colour Black Depth 42 mm Dimension 41x42x79 For frame height max. 50 mm For frame height min. 30 mm Height 79 mm Material Stainless steel 1.4301 Photovoltaic connection and fastening element version Universal clamp Surface Plastic-coated Width 43 mm With module earthing no - All types
- Downloads
-
Data sheet KLU A2 S / 5901012 , 0.19MB , pdfREACH Declaration of conformity KLU A2 S / 5901012 , 0.12MB , pdfRoHS Declaration of conformity KLU A2 S / 5901012 , 0.13MB , pdfMounting instructions Photovoltaik-Montagesysteme Magic PV Flat Glue für Flachdächer , 3.61MB , pdfMounting instructions PV-Montagesysteme für Trapez- und Wellblechdächer , 2.53MB , pdfMounting instructions PV mounting systems for pitched roofs , 4.03MB , pdfMounting instructions PV mounting systems Magic PV Flat Pro , 5.39MB , pdfMounting instructions PV mounting systems Magic PV Flat Basic , 3.89MB , pdfNo invitation to tender text is available for this product.
