Technical data
| Airtight |
no
|
| Colour |
Jet black
|
| Cover |
White
|
| Cover fastening |
Locking
|
| Dimension |
Ø2x35mm, H35
|
| Entry from rear |
yes
|
| Flame-resistant |
acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
|
| for pipe diameter |
20 mm
|
| Halogen-free |
yes
|
| Impact-resistant |
yes
|
| Material |
Polypropylene
|
| Max. Conductor cross-section |
2,5
mm²
|
| No. of entries |
4
|
| Nominal cross-section, max. |
2,5
mm²
|
| Nominal cross-section, min. |
1,5
mm²
|
| Pipe entries Ø 20 mm |
4
|
| Protection rating |
IP30
|
| Rated voltage |
400
V
|
| Shape |
Miscellaneous
|
| Type of housing penetration |
Break-out opening
|
| Type of insertion… |
NYM cables, data cables and corrugated pipes
|
| With bolts |
no
|
| With nail strap |
no
|

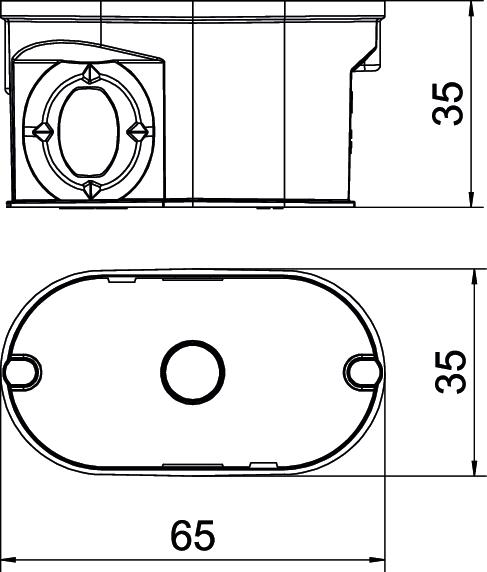

Dimensions
| Height |
35
mm
|
| Length |
65
mm
|
