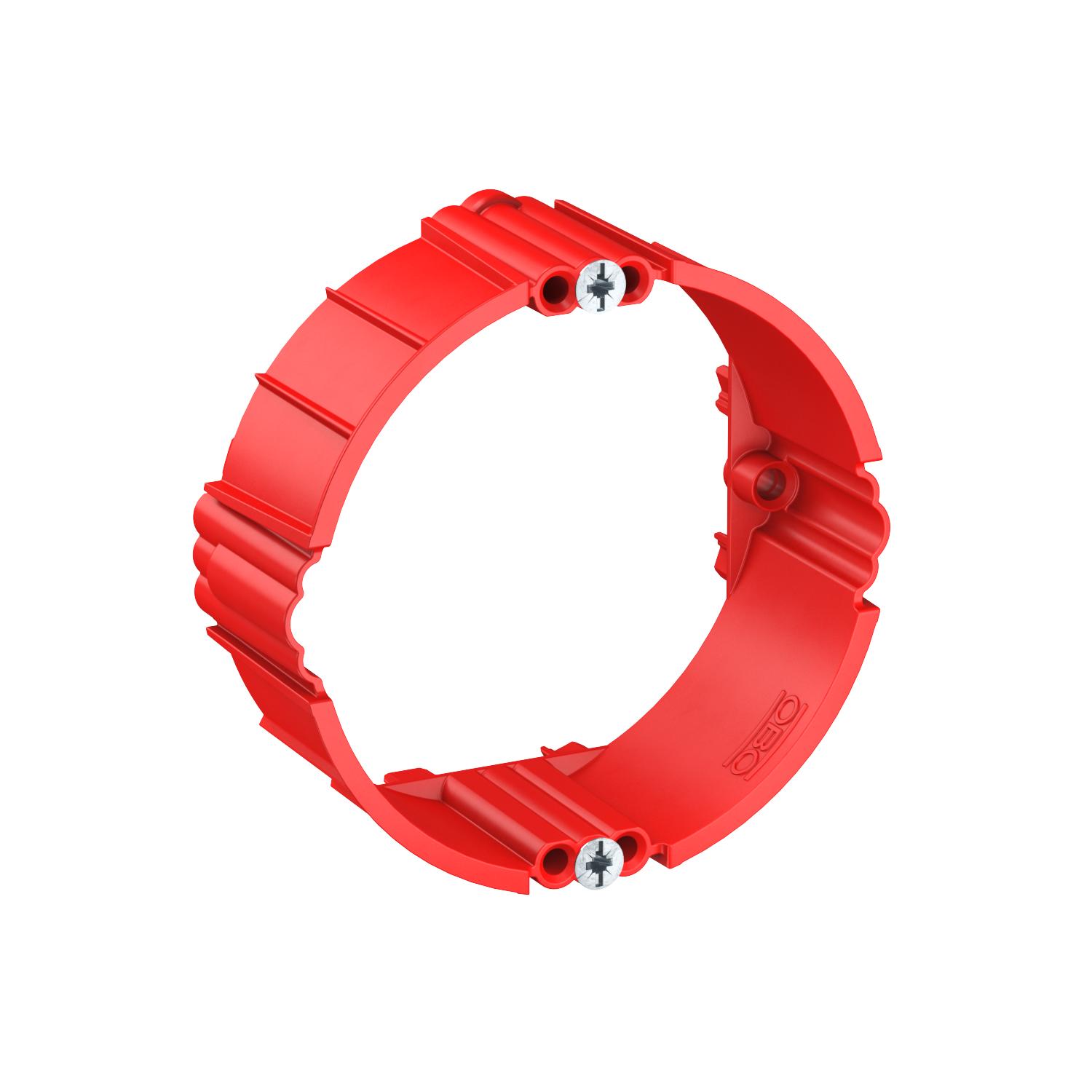

UP Plaster compensation ring 24 mm, flush-mounted device box

Item no. / Types

Mounting type

Product description

Product description

Plaster compensation ring for Ø 60 mm flush-mounted box, to screw on.

Technical data

Colour	Signal red

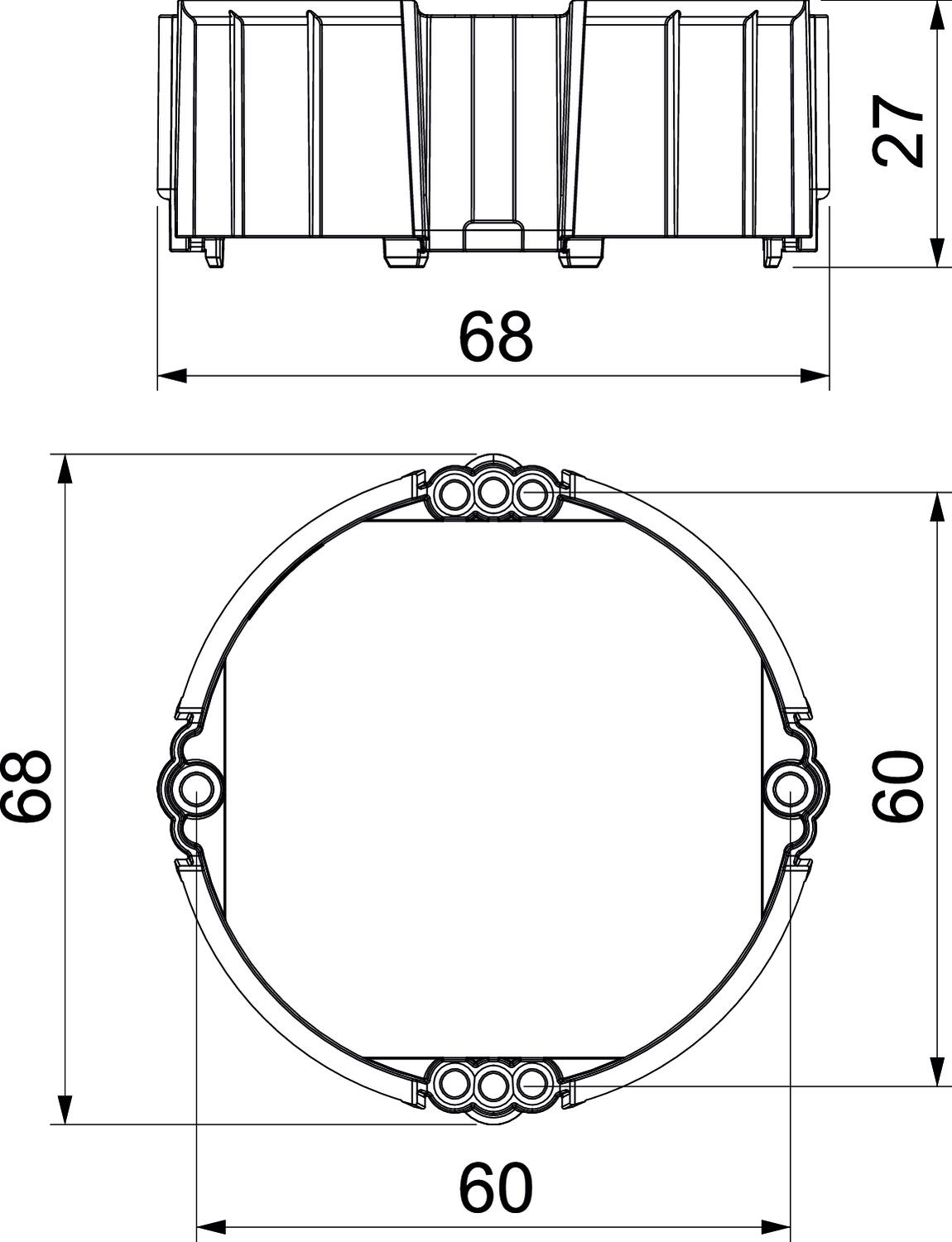

Diameter	68 mm
Dimension	Ø60mm, H24mm
Flame-resistant	acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C

Height	24 mm

All types

Types	Mounting type	Item no.	Quantity	SSU
UG 60 PA 24	Concealed	2003295	piece	25 piece
ZU 24-PR	-	2003744	piece	25 piece

Downloads

Data sheet ZU 24-PR / 2003744 , 0.33MB , pdf

Brochure The new flush-mounted and cavity wall box portfolio , 6.81MB , pdf

Mounting instructions Mounting instructions, UP flush-mounted device boxes , 12.98MB , pdf
