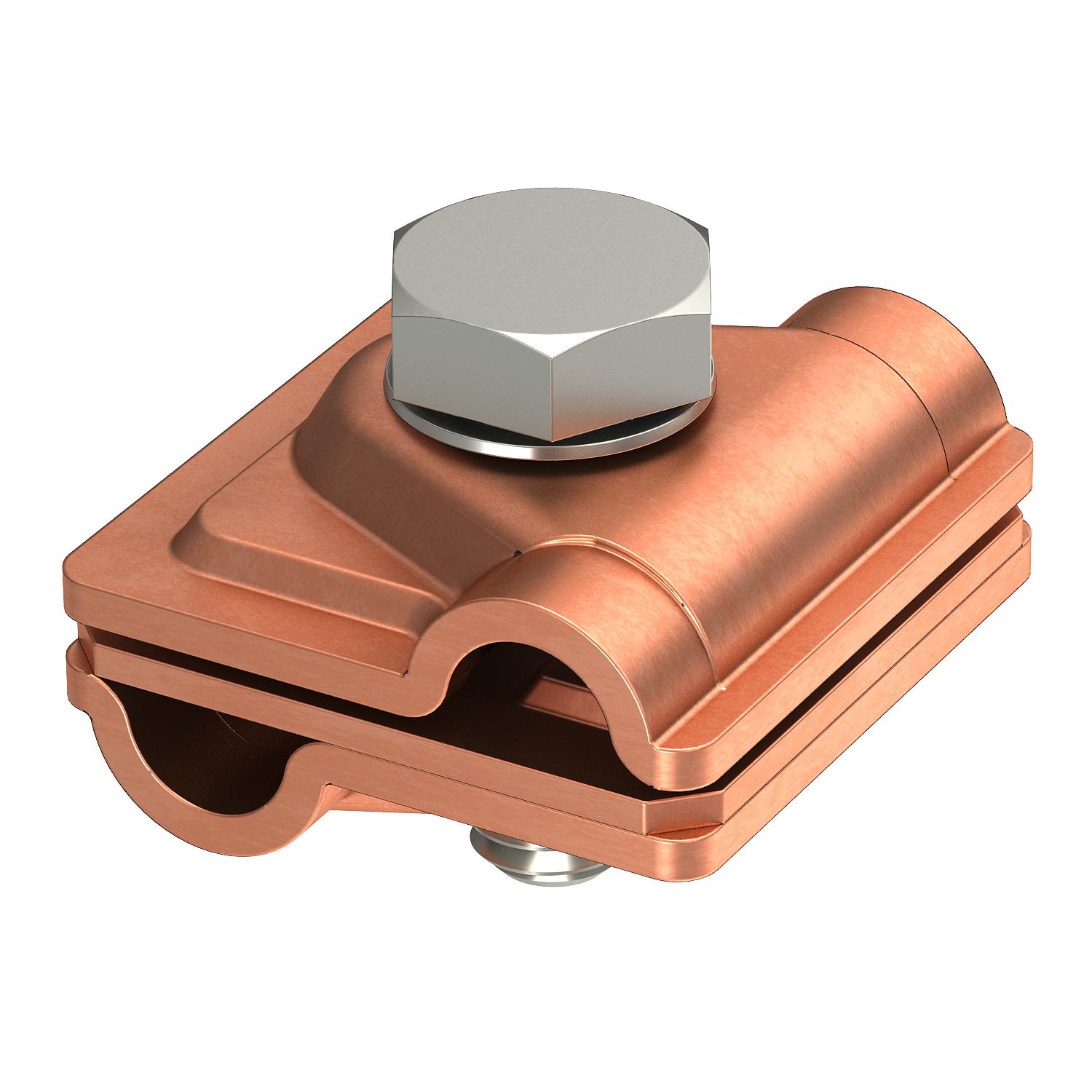

Variable quick connector Rd 6-8/8-10 mm Cu
Item no. 5311417 | EAN 4012195816591
- Product description
-
Product description

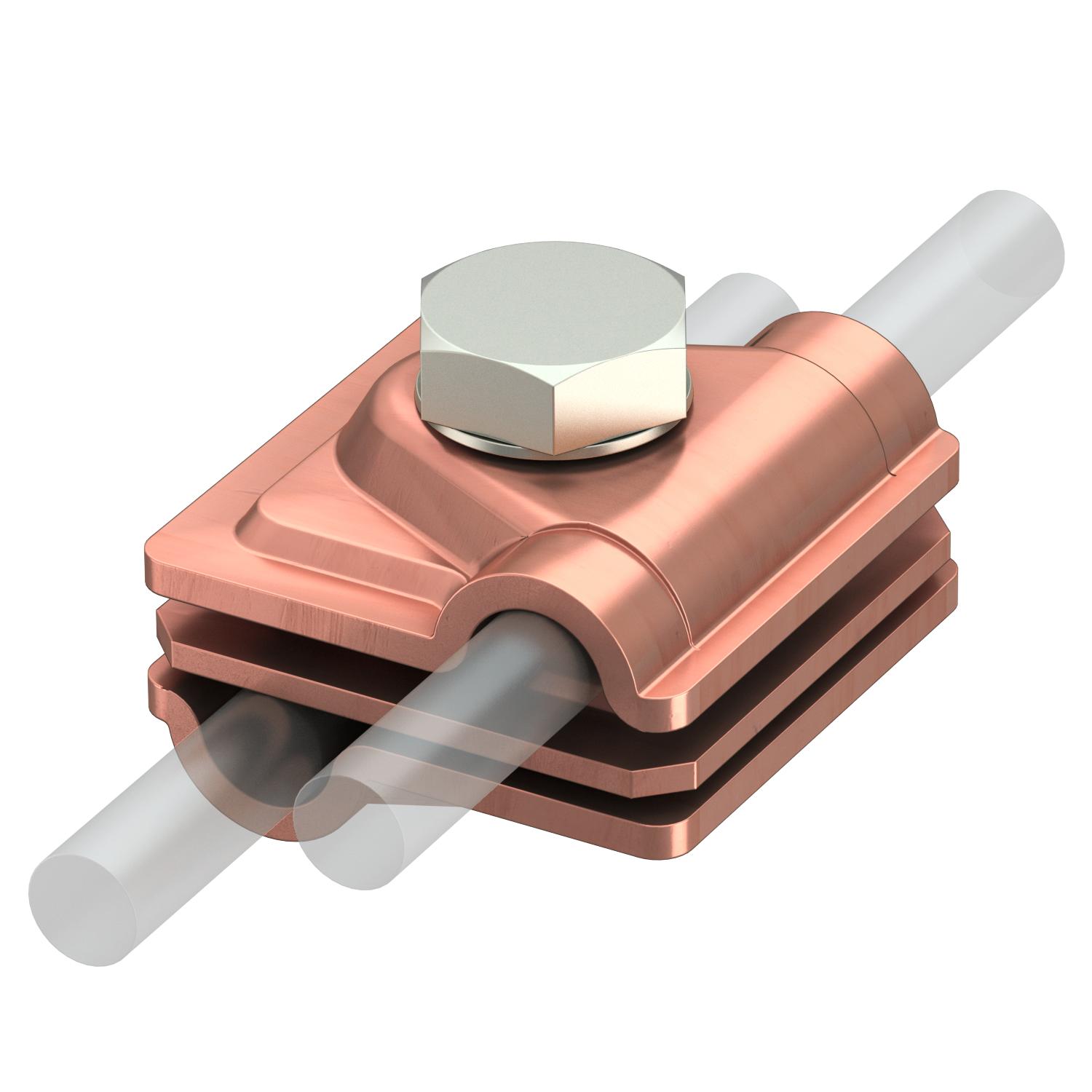

• For T, cross-over and parallel connections with adapter plates
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel A2
• With sprung washer to DIN 137
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Dimension 40x40mm Fit RD 6-8 / 8-10 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Copper Round conductor diameter, conductor 1, max. 8 mm Round conductor diameter, conductor 1, min. 6 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt Dimensions

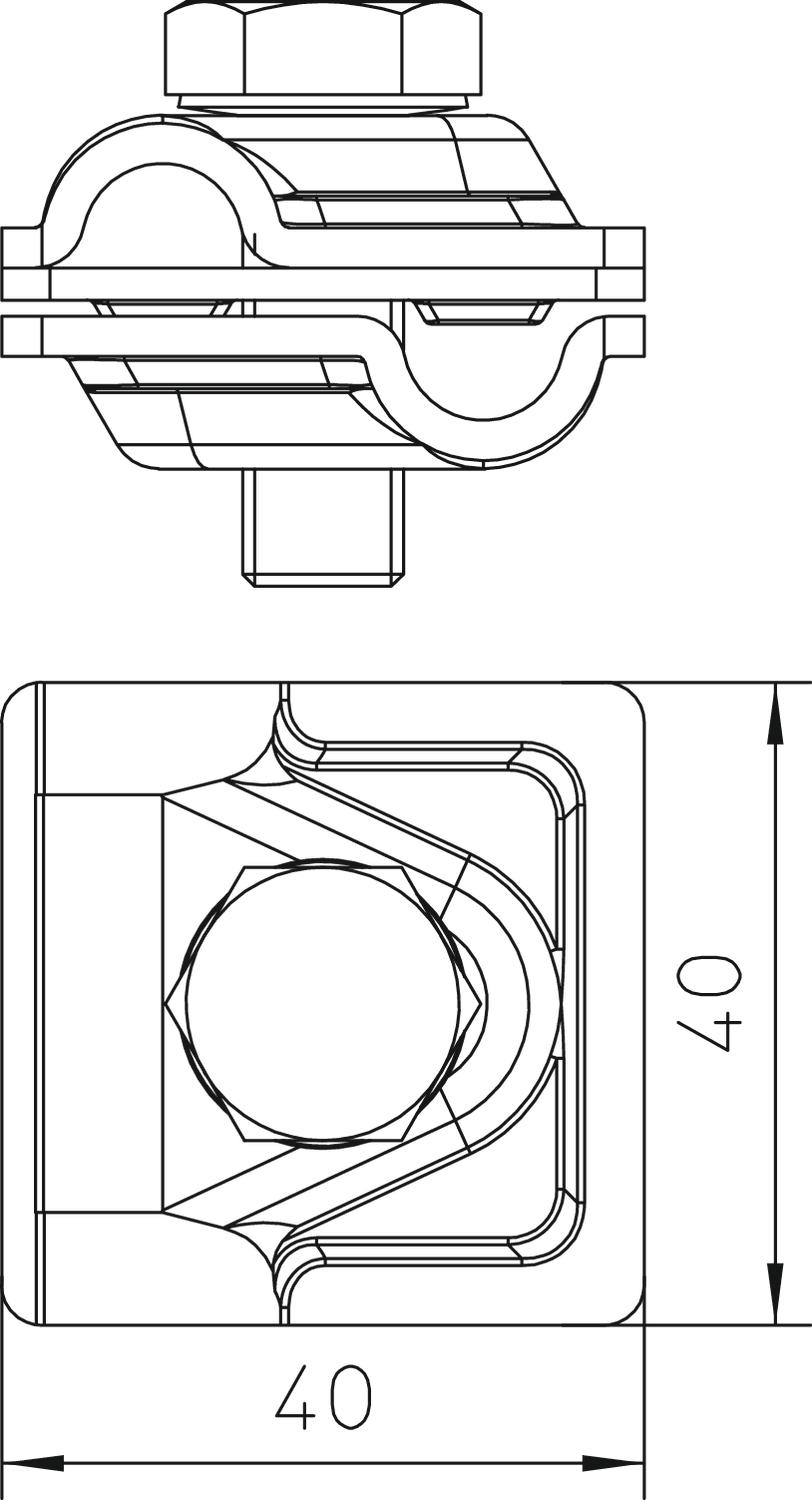

Dimension A 40 mm - All types
- Downloads
-
Data sheet 249 6-10 CU / 5311417 , 0.15MB , pdfREACH Declaration of conformity 249 6-10 CU / 5311417 , 0.12MB , pdfRoHS Declaration of conformity 249 6-10 CU / 5311417 , 0.12MB , pdfMounting instructions Vario-Schnellverbinder , 1.20MB , pdf
