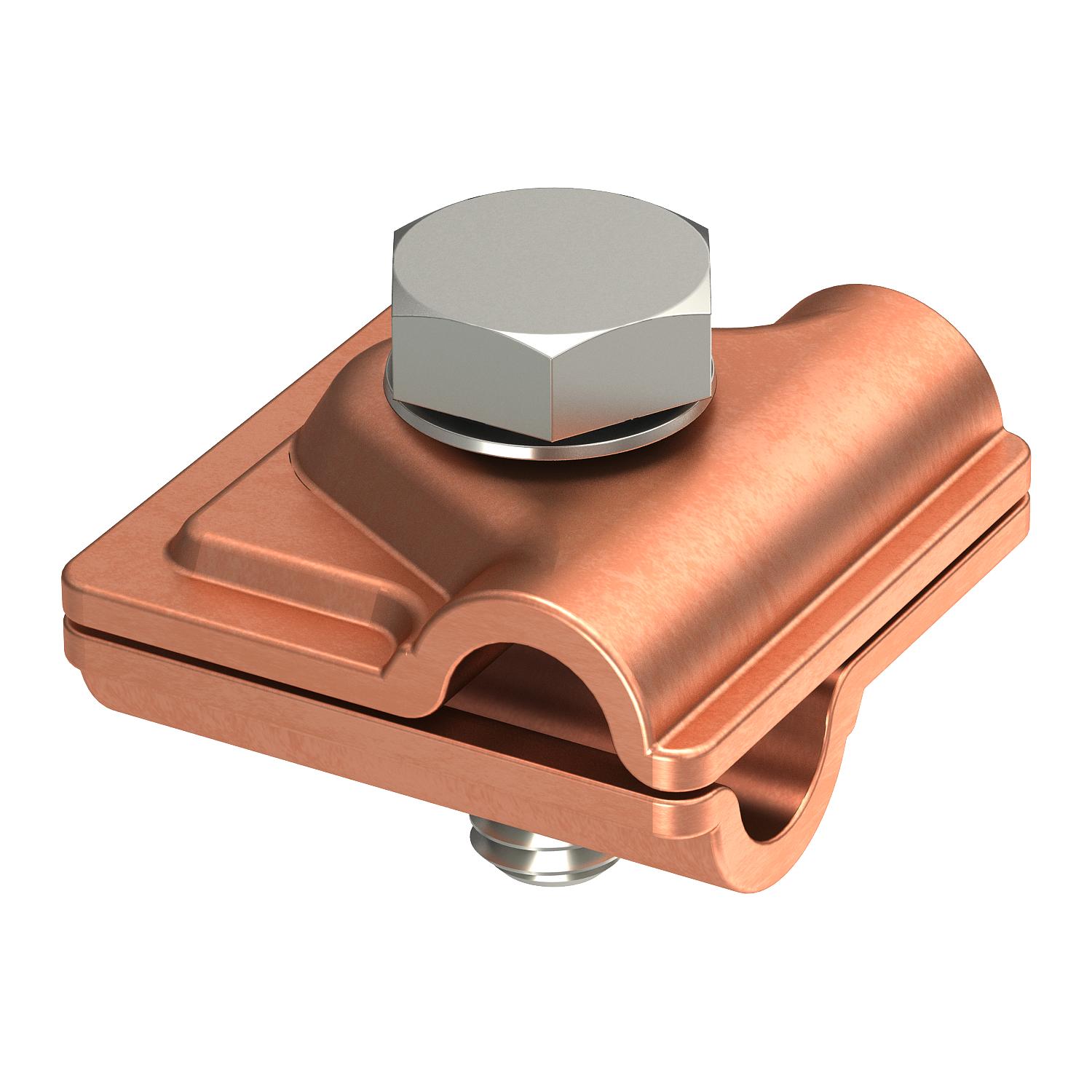

Vario quick connector Cu
Item no. 5311527 | EAN 4012195417798
- Product description
-
Product description

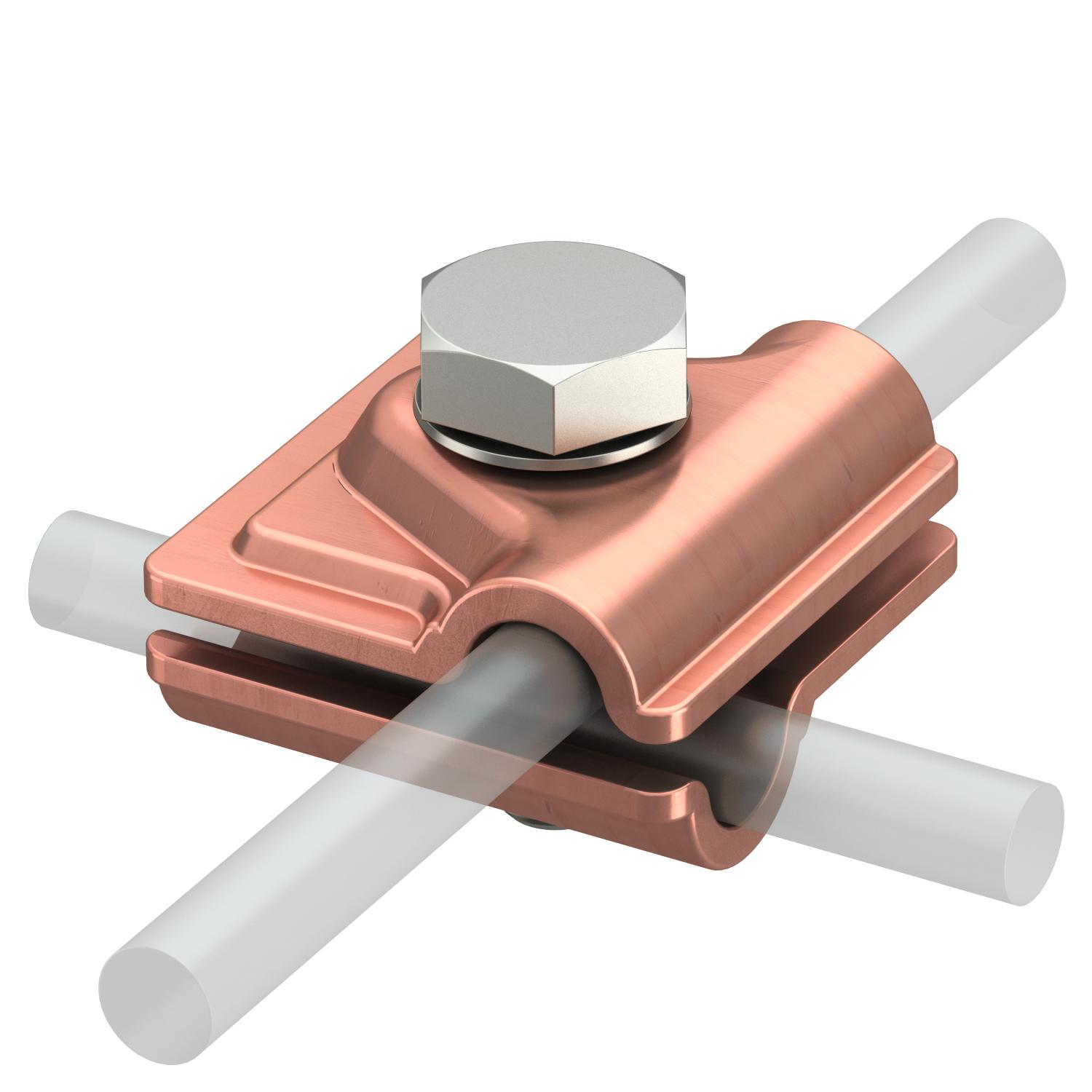

• For T, cross and parallel connectors
• Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Dimension 40x40mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Copper Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt Dimensions

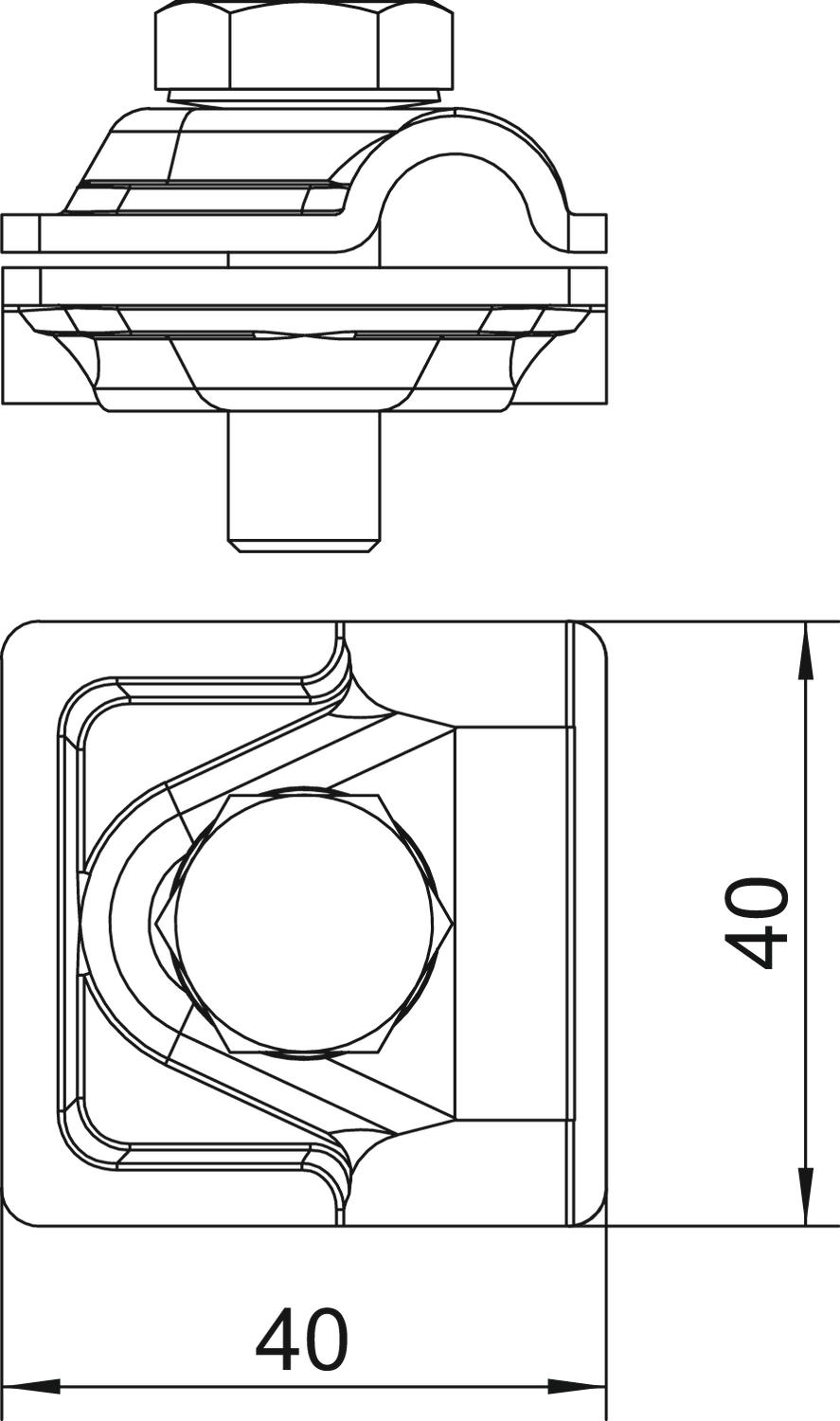

Dimension A 40 mm - All types
- Downloads
-
Data sheet 249 8-10 CU / 5311527 , 0.15MB , pdfREACH Declaration of conformity 249 8-10 CU / 5311527 , 0.12MB , pdfRoHS Declaration of conformity 249 8-10 CU / 5311527 , 0.12MB , pdfMounting instructions Vario quick connector 249 8-10 ZV , 1.62MB , pdf
