Adjustable	no
CO2 Footprint (GWP) Cradle-to-Gate	1,6298 kg CO2e / 1 Piece
Colour	zinc

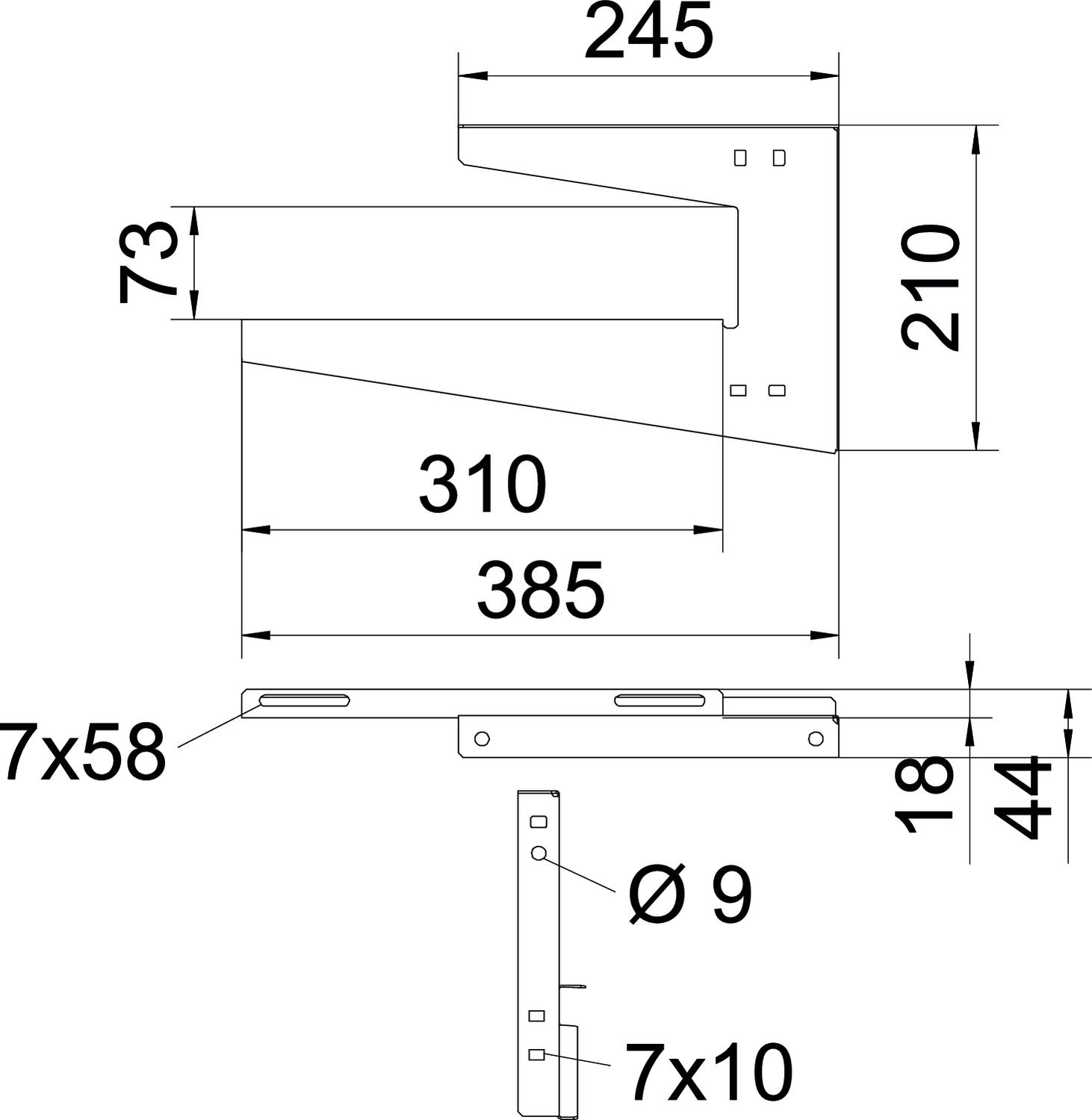

Dimension	B300mm
Dimension A	245 mm
Dimension B	310 mm
Dimension H	210 mm
Dimension H1 (mm)	73
Dimension L	385 mm
F in kN ceiling	0,2 kN
F in kN wall	0,2 kN
for width min.	300
Height	210 mm

Hole diameter	7 mm
Length	385 mm
Maintain electrical functions	no
Material	Steel
Material thickness	1,25 mm
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	yes
Suitable for metric threaded rod	8
Surface	Hot-dip galvanised
Tray fastening	Screw-on
Version for	Suspension bracket (C clamp)
Width	310 mm

Types	Width	Height	F in kN ceiling	F in kN wall	Hole diameter	Colour	Item no.	Quantity	SSU
WDB L 50 FT	60 mm	170 mm	0.4 kN	0.4 kN	7 mm	zinc	6363720	piece	1 piece
WDB L 100 FT	110 mm	179 mm	0.25 kN	0.25 kN	7 mm	zinc	6363722	piece	1 piece
WDB L 150 FT	160 mm	186 mm	0.22 kN	0.22 kN	7 mm	zinc	6363724	piece	1 piece
WDB L 200 FT	210 mm	194 mm	0.3 kN	0.3 kN	7 mm	zinc	6363726	piece	1 piece
WDB L 300 FT	310 mm	210 mm	0.2 kN	0.2 kN	7 mm	zinc	6363728	piece	1 piece
WDB L 400 FT	410 mm	226 mm	0.12 kN	0.12 kN	7 mm	zinc	6363730	piece	1 piece

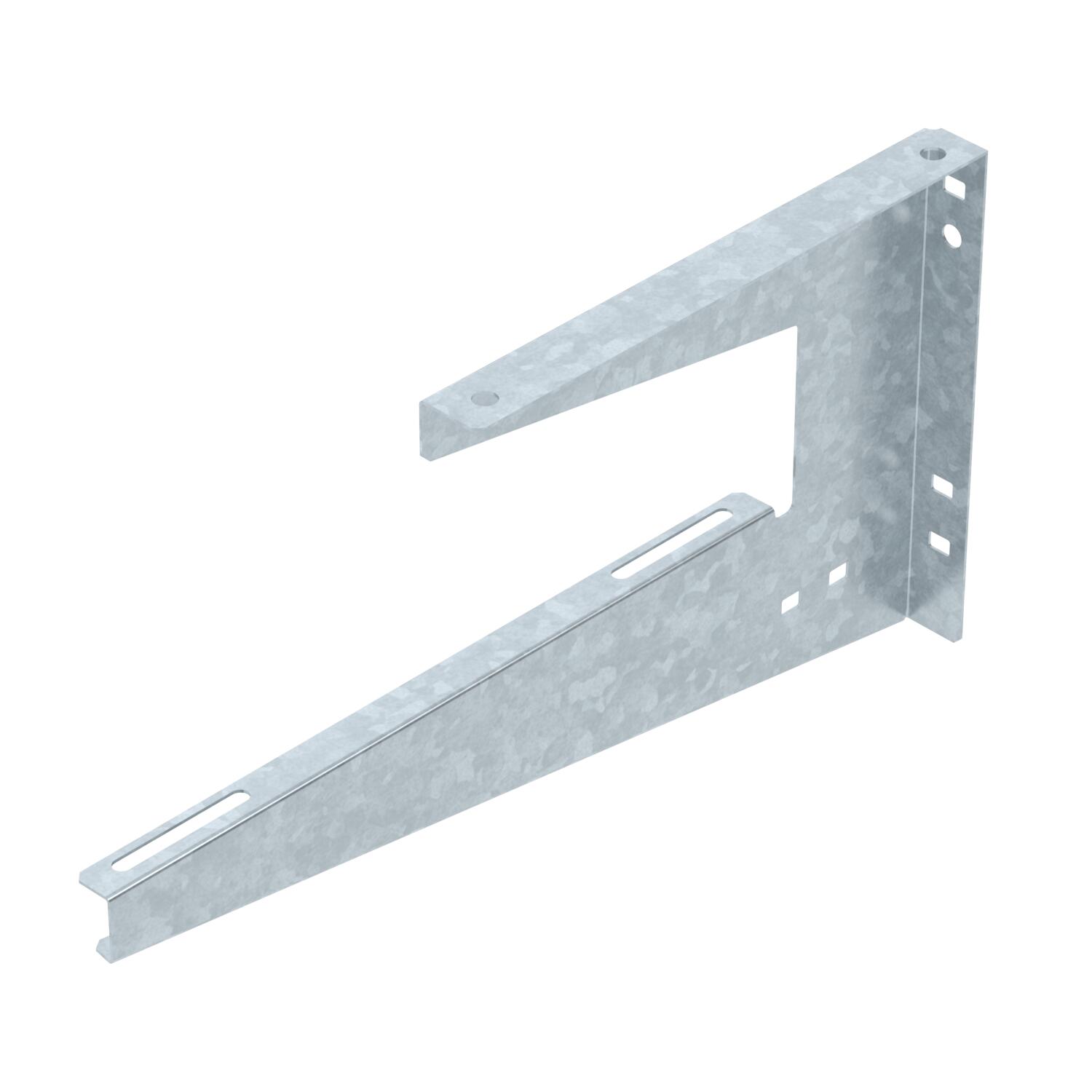

Wall and ceiling bracket FT

All types
