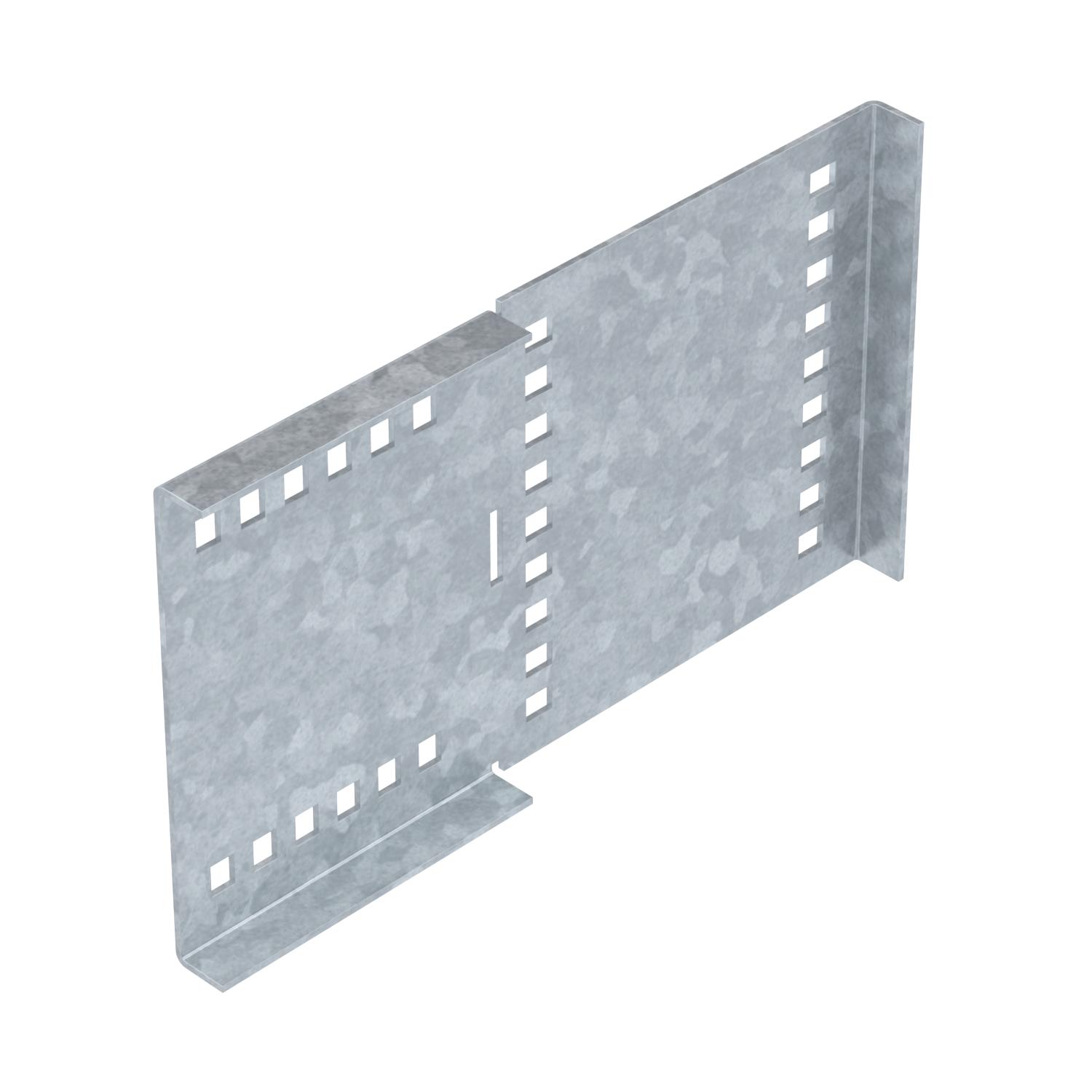

Wide-span angle connector 160 FT
Item no. 6227850 | EAN 4012197386146
- Product description
-
Product descriptionAngle connector to connect wide span cable trays and ladders running vertically and horizontally of side height 160 mm. Including fastening material.
-
- Technical data
-
Technical data

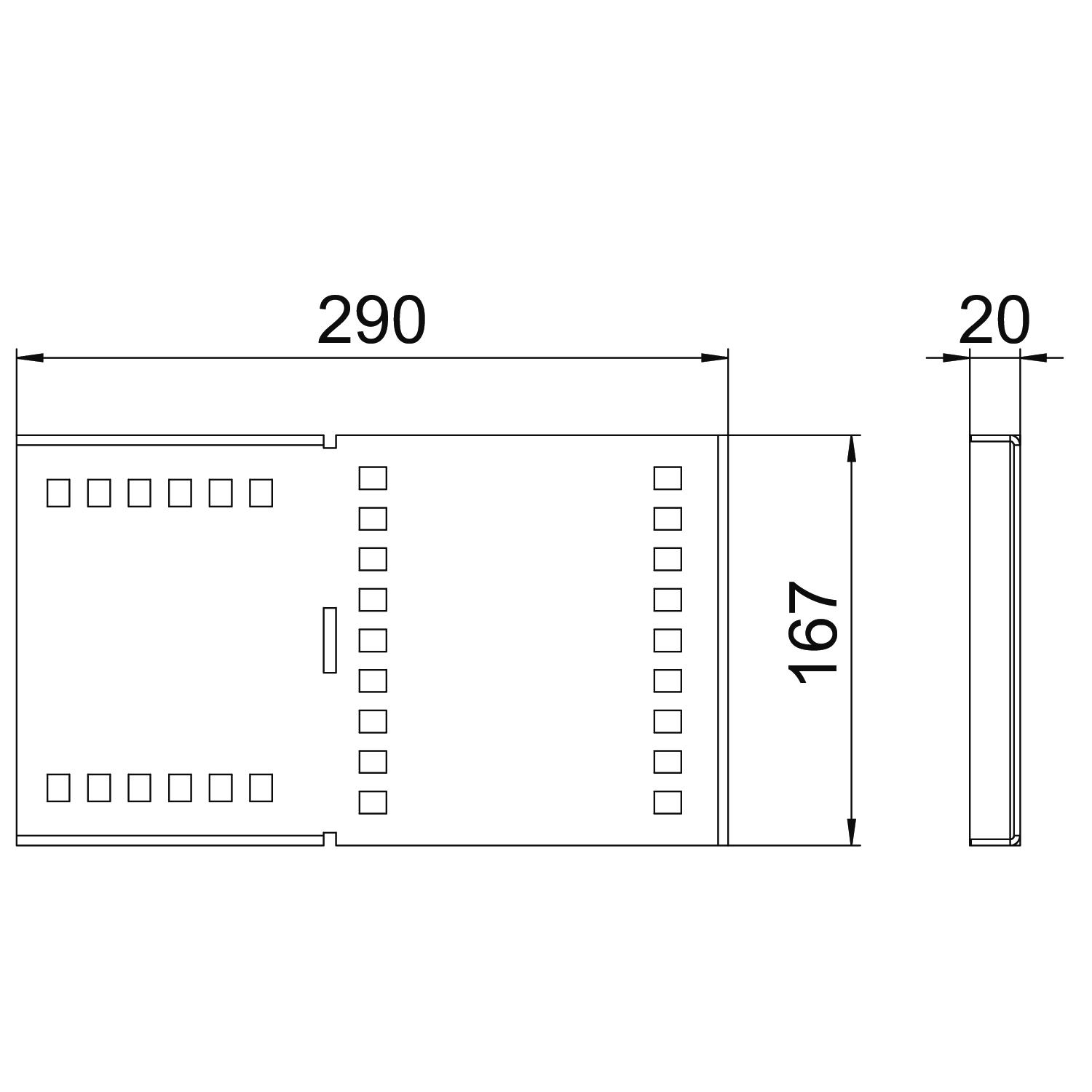

Adjustable connector, horizontal no Articulated connector, vertical no CO2 Footprint (GWP) Cradle-to-Gate 3,8709 kg CO2e / 1 Piece Colour zinc Connection type Screw connector Dimension 160x250 Height 160 mm Length 290 mm Maintain electrical functions no Material Steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 160 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Angle connector Width 20 mm - All types
- Downloads
-
Data sheet WRWVV 160 FT / 6227850 , 0.23MB , pdfEU declaration of conformity WRWVV 160 FT / 6227850 , 0.11MB , pdfUK Declaration of Conformity WRWVV 160 FT / 6227850 , 0.09MB , pdfMounting instructions Wide span cable trays , 6.87MB , pdfMounting instructions Wide span cable ladders , 7.96MB , pdf
