Magic PV Mount

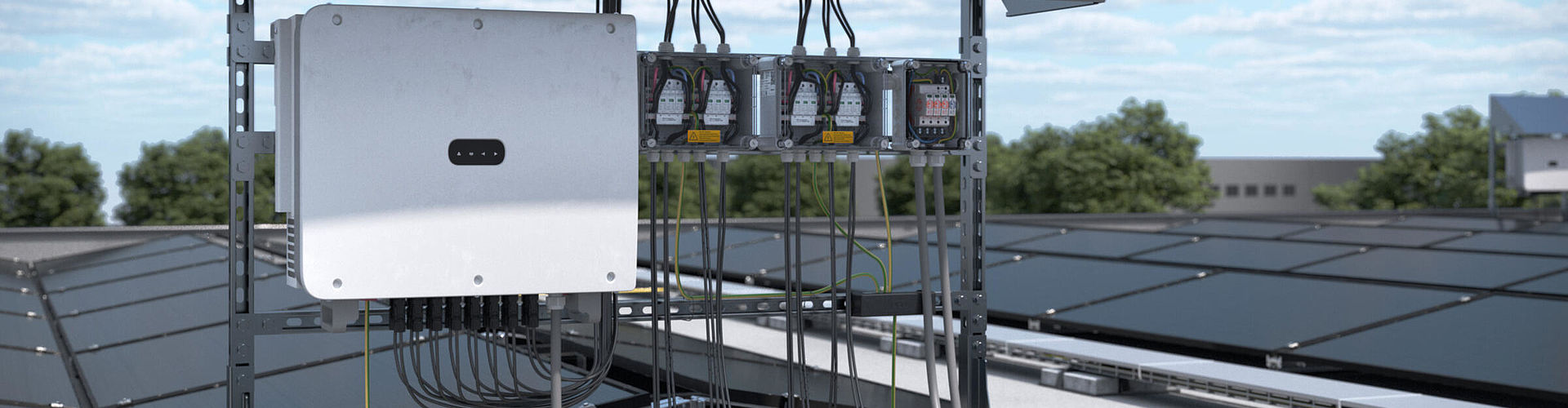

The Magic PV Mount inverter frame system acts a stand for inverters, for instance. But it can also be used for many other components, for example connection boxes, such as DC connection boxes or combiner boxes, battery modules, energy storage, equipotential bonding rails and earthing bars.
Magic PV Mount is available in different versions for wall and ground mounting, as well as in various sizes. It provides systematic weather protection: The robust protective roof minimises the thermal load of the inverter, for instance, which ensures top performance and maximum service life, while also providing protection against precipitation. Thanks to preassembled modules and a sophisticated design, quick and easy mounting is guaranteed with Magic PV Mount. This reduces both mounting time and personnel costs significantly. The flexible system architecture for central and decentralised system types is compatible with all standard inverter types.
Do you have any questions on this topic?
We’ll be glad to help you!
Quick start
Advantages
Products
Downloads
Contact
All the advantages of Magic PV Mount at a glance
- Statically tested and documented: Designed for international wind and snow load zones, including documentation according to Eurocode. Simply get in touch with us.
- Integrated cable management: Clean, safe and service-friendly – for AC and DC as well as data lines – in addition to the actual function of the mesh cable tray as an option for adding ballast.
- Compact logistics: Packaged flat for container or pallet shipping – also optimised for international shipments.
- System integration from a single source: Perfect combination with the PV mounting systems from the OBO portfolio as well as integration into complete cable management systems. This means technical, logistical and economic benefits during planning, procurement and construction.
- Sustainability made in Europe: High-quality, recyclable materials – produced locally and ESG-compliant
Products

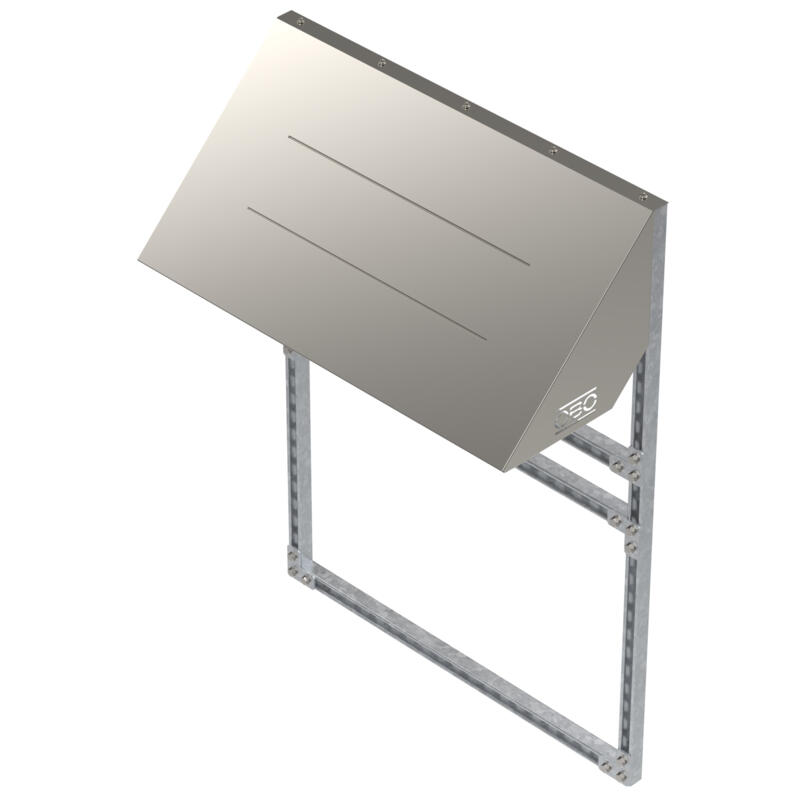

Inverter frame, wall mounting, small
- PV protective enclosure for inverter wall mounting
- Max. inverter width: 1,000 mm
- Height: 1,500 mm
- Depth: 500 mm
- Width: 1,080 mm
- Material: Steel, hot-dip galvanised
- Delivered state: Unmounted

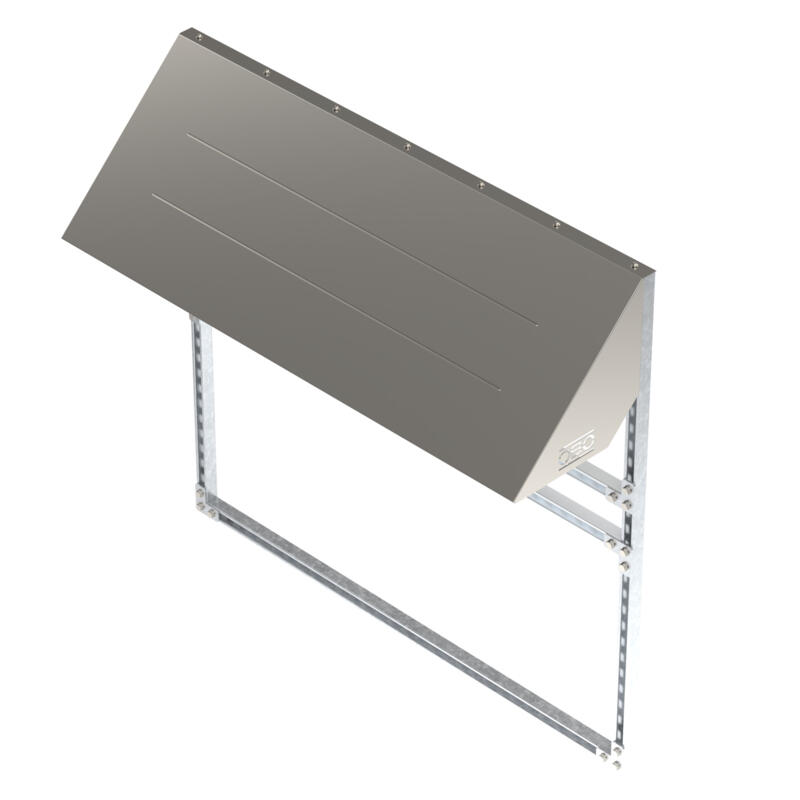

Inverter frame, wall mounting, large
- PV protective enclosure for inverter wall mounting
- Max. inverter width: 1,500 mm
- Height: 1,500 mm
- Depth: 500 mm
- Width: 1,580 mm
- Material: Steel, hot-dip galvanised
- Delivered state: Unmounted

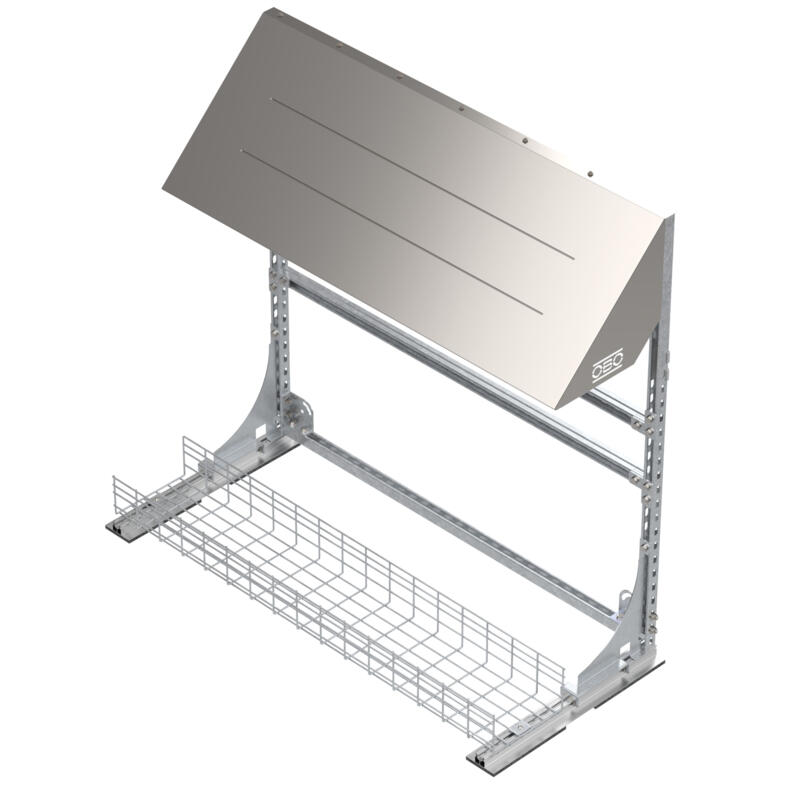

Inverter frame, floor mounting, 1-sided, small
- PV protective enclosure for inverter floor mounting (plus optional ballast material)
- Max. inverter width 1,000 mm
- Height 1,550 mm
- Depth 820 mm
- Width 1,150 mm
- Material steel, hot-dip galvanised
- Delivered state: Unmounted

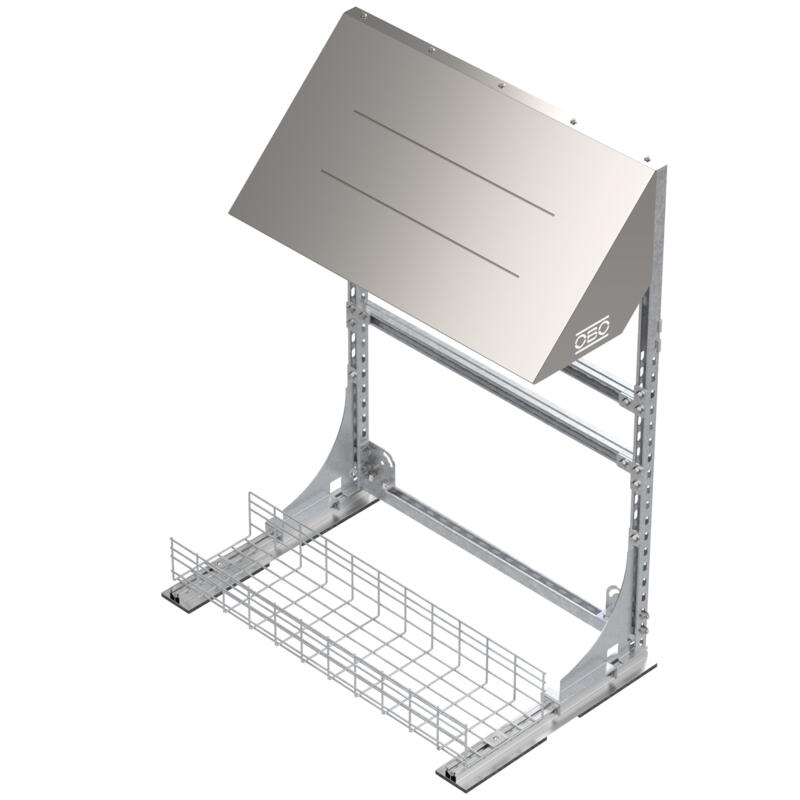

Inverter frame, floor mounting, 1-sided, large
- PV protective enclosure for inverter floor mounting (plus optional ballast material)
- Max. inverter width 1,500 mm
- Height 1,550 mm
- Depth 820 mm
- Width 1,650 mm
- Material steel, hot-dip galvanised
- Delivered state: Unmounted

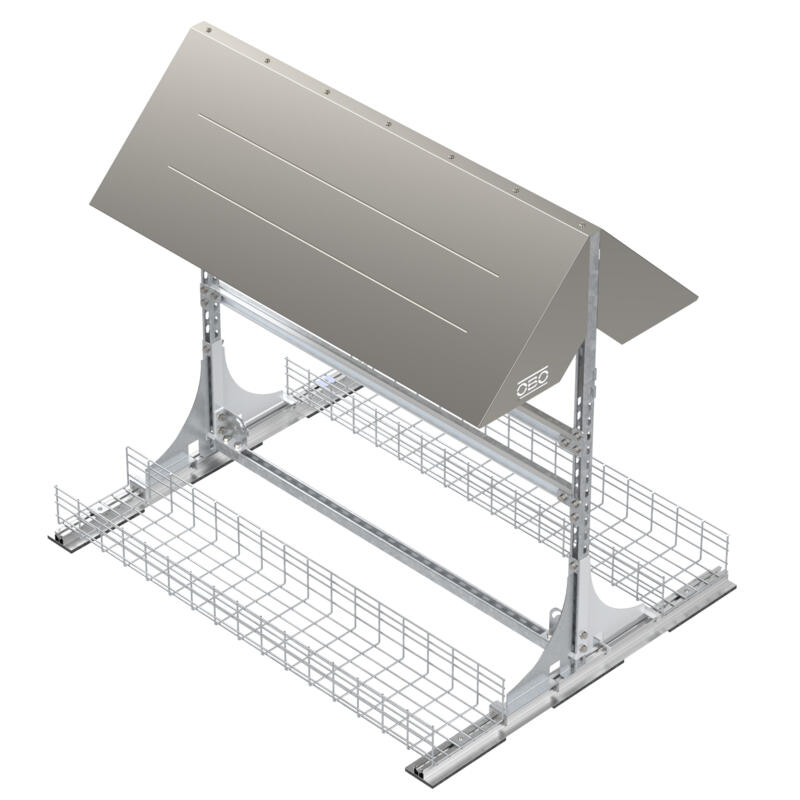

Inverter frame, floor mounting, 2-sided, small
- PV protective enclosure for inverter floor mounting (plus optional ballast material)
- Max. inverter width 2,000 mm (> 2 x 1,000 mm)
- Height 1,550 mm
- Depth 1,500 mm
- Width 1,150 mm
- Material steel, hot-dip galvanised
- Delivered state: Unmounted

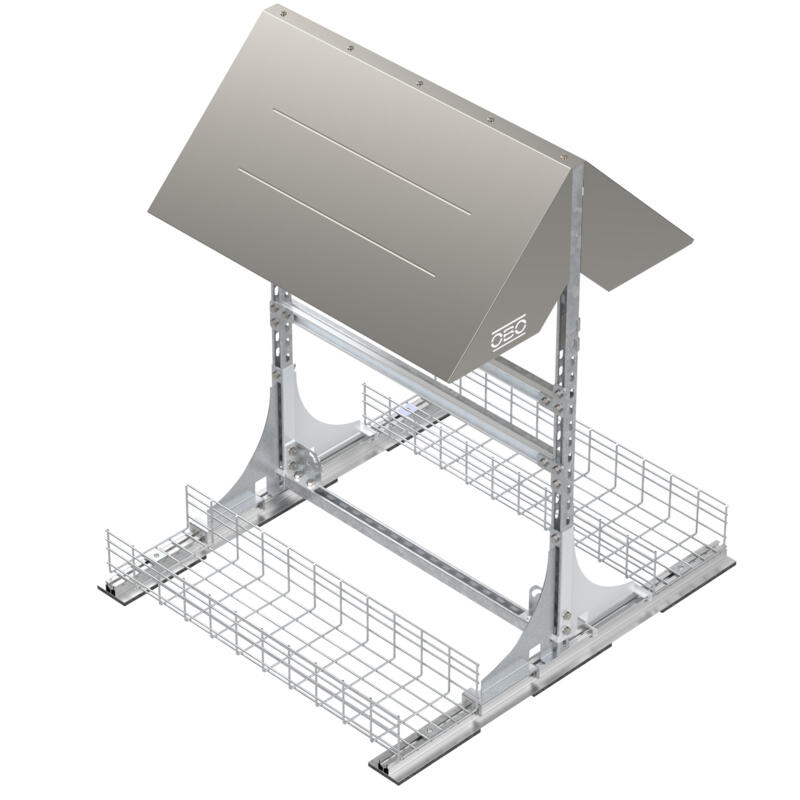

Inverter frame, floor mounting, 2-sided, large
- PV protective enclosure for inverter floor mounting (plus optional ballast material)
- Max. inverter width 3,000 mm (> 2 x 1,500 mm)
- Height 1,550 mm
- Depth 1,500 mm
- Width 1,650 mm
- Material steel, hot-dip galvanised
- Delivered state: Unmounted
Downloads
PV planning has never been so easy – and we’re here to help
A sunny outlook!
We offer you not only innovative mounting systems for your PV system, but also support you with the planning. Our Customer Service team works with you to find the right Magic PV Solution® tailored to your specific needs. Please note: The creation of a quote for free-standing solutions specifically requires a geological survey. We will be happy to help you find a suitable company and establish contact with a geological engineer.
The external survey will then be reviewed and evaluated for completeness of all the relevant data.
