Beam clamp, steel beam outer side A2
Item no. 6003970 | EAN 4012197477707
- Product description
-

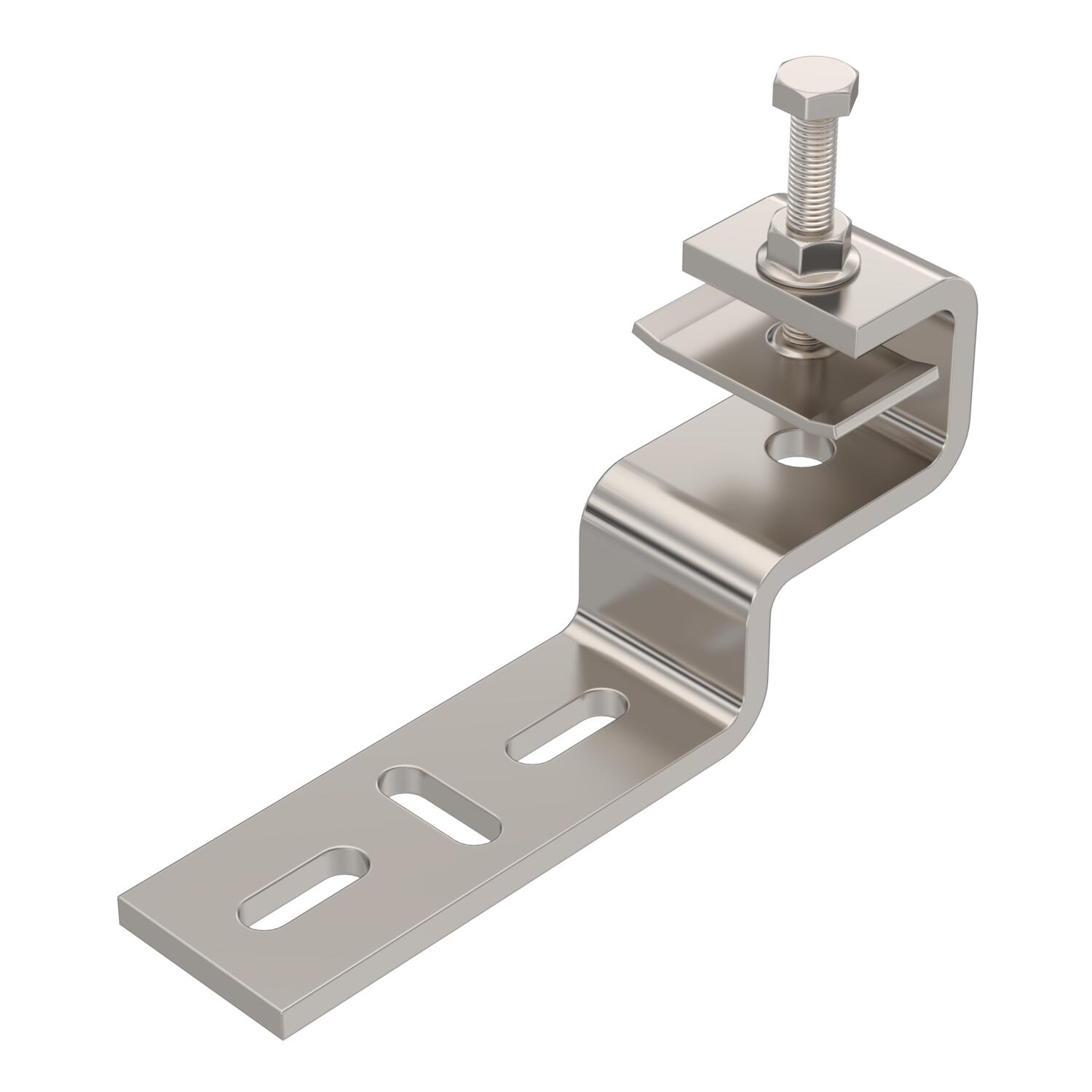

Product descriptionBeam clamp for mounting light components on the outer side of vertical or horizontal steel beams. Suitable, for example, for mesh cable trays and cable trays to 200 mm width or clips. The cable tray system attached to the beam clamp can be routed both horizontally and vertically.
-
- Technical data
-
Technical data

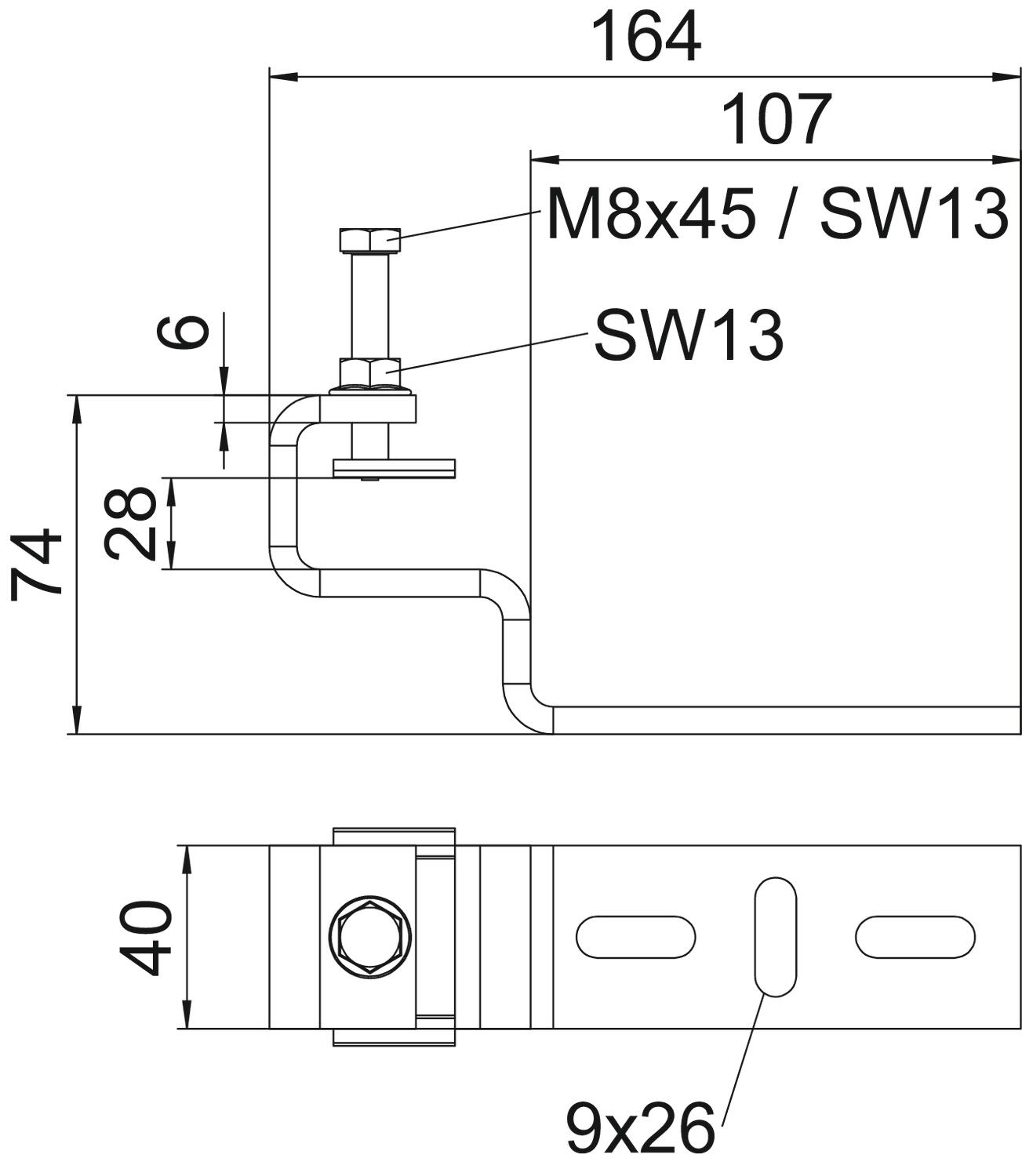

CO2 Footprint (GWP) Cradle-to-Gate 2,8412 kg CO2e / 1 Piece Colour stainless steel Dimension 153x74x40 Height 62 mm Length 158 mm Material Stainless steel 1.4301 Material thickness 6 mm Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Rustproof steel, pickled yes Surface Bright, treated Width 107 mm - All types
- Downloads
-
Mounting instructions Clamp fastening systems , 0.71MB , pdfNo invitation to tender text is available for this product.
