Beam clamp, steel beam outer side A2
morepic-1 morepic-2

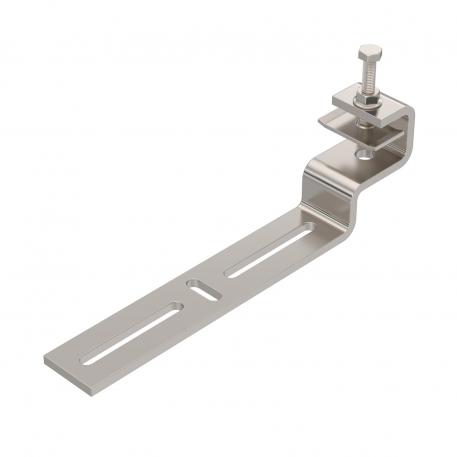

Beam clamp, steel beam outer side A2

Item no. 6003972 | EAN 4012197477738

Product description
Product description
Beam clamp for mounting light components on the outer side of vertical or horizontal steel beams. Suitable, for example, for mesh cable trays and cable trays to 200 mm width or clips. The cable tray system attached to the beam clamp can be routed both horizontally and vertically.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 3,8577 kg CO2e / 1 Piece
Colour stainless steel

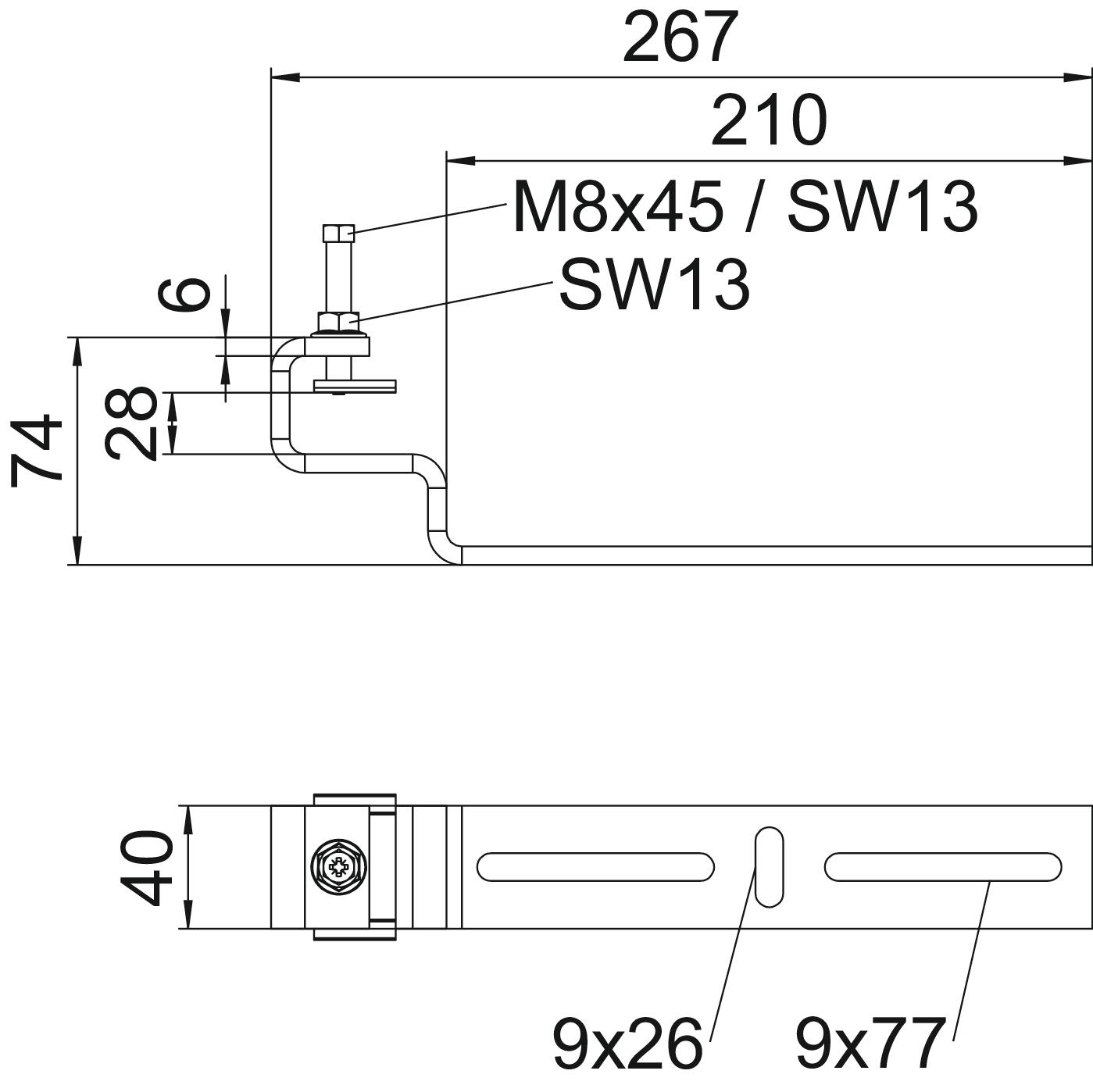

Dimension 253x74x40
Height 62 mm
Length 261 mm
Material Stainless steel 1.4301
Material thickness 6 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Rustproof steel, pickled yes
Surface Bright, treated
Width 210 mm
All types

All types

Types Item no. Quantity SSU
BFK V 100 A2 6003970
1 piece
BFK V 200 A2 6003972
1 piece
Downloads

Download

No invitation to tender text is available for this product.
