Box lid 97 | 97 | 1.5 | White
morepic-1 morepic-2

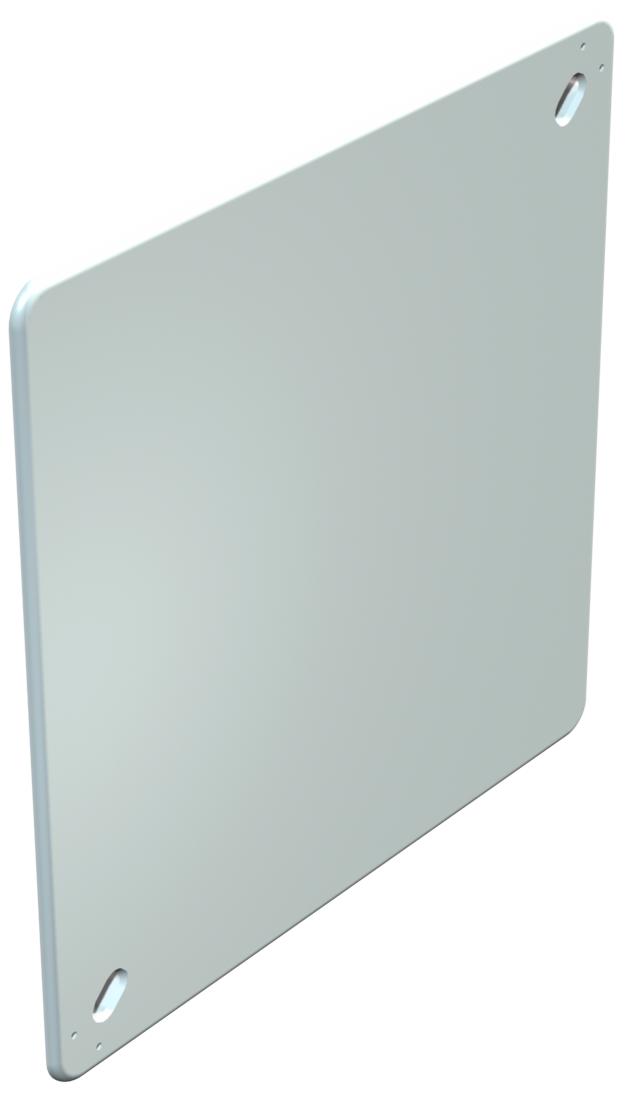

Box lid

Item no. 2003240 | EAN 4012195024378

White
Product description

Product description

Box cover suitable for the connection sockets, type UV...K, cover edge is flush, surface is roughened, cover bolts can be lowered.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour White
Dimension 97x97x1,5
Fastening type Screw-on lid
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Halogen-free yes
Material Polystyrene
Sealable yes
Shape Square
With bolts no

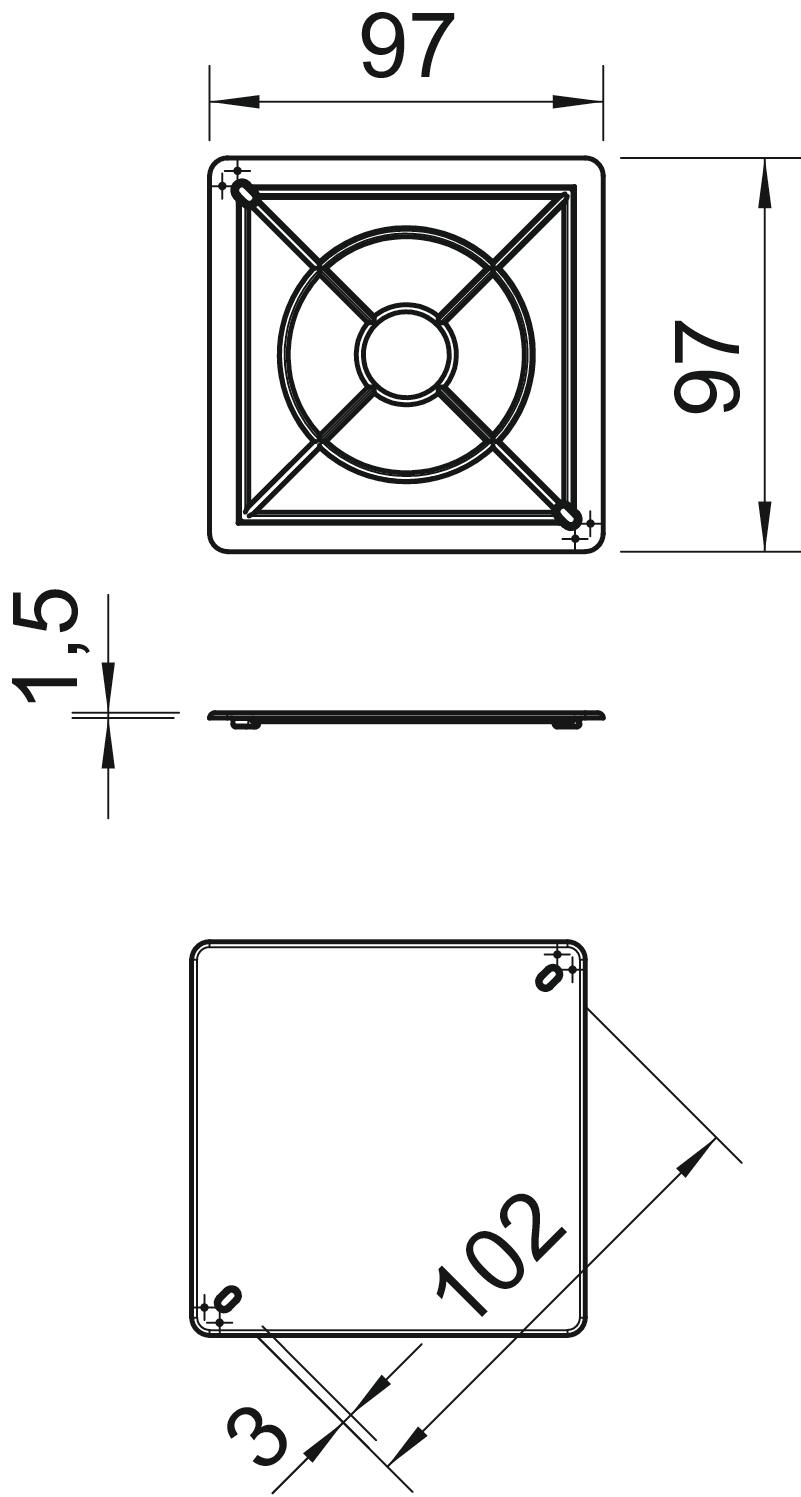

Dimensions

Dimension A 102 mm
Dimension B 97 mm
Dimension s 1,5 mm
Height 1,5 mm
Length 97 mm
Width 97 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
UV 80 D 97 mm 97 mm 1.5 mm White 2003240
10 piece
UV 100 D 114 mm 114 mm 1.5 mm White 2003244
10 piece
UV 150 D 170 mm 170 mm 1.75 mm White 2003248
5 piece
UV 200 D 210 mm 210 mm 2 mm White 2003252
5 piece
UV 250 D 260 mm 260 mm 2.5 mm White 2003256
5 piece
