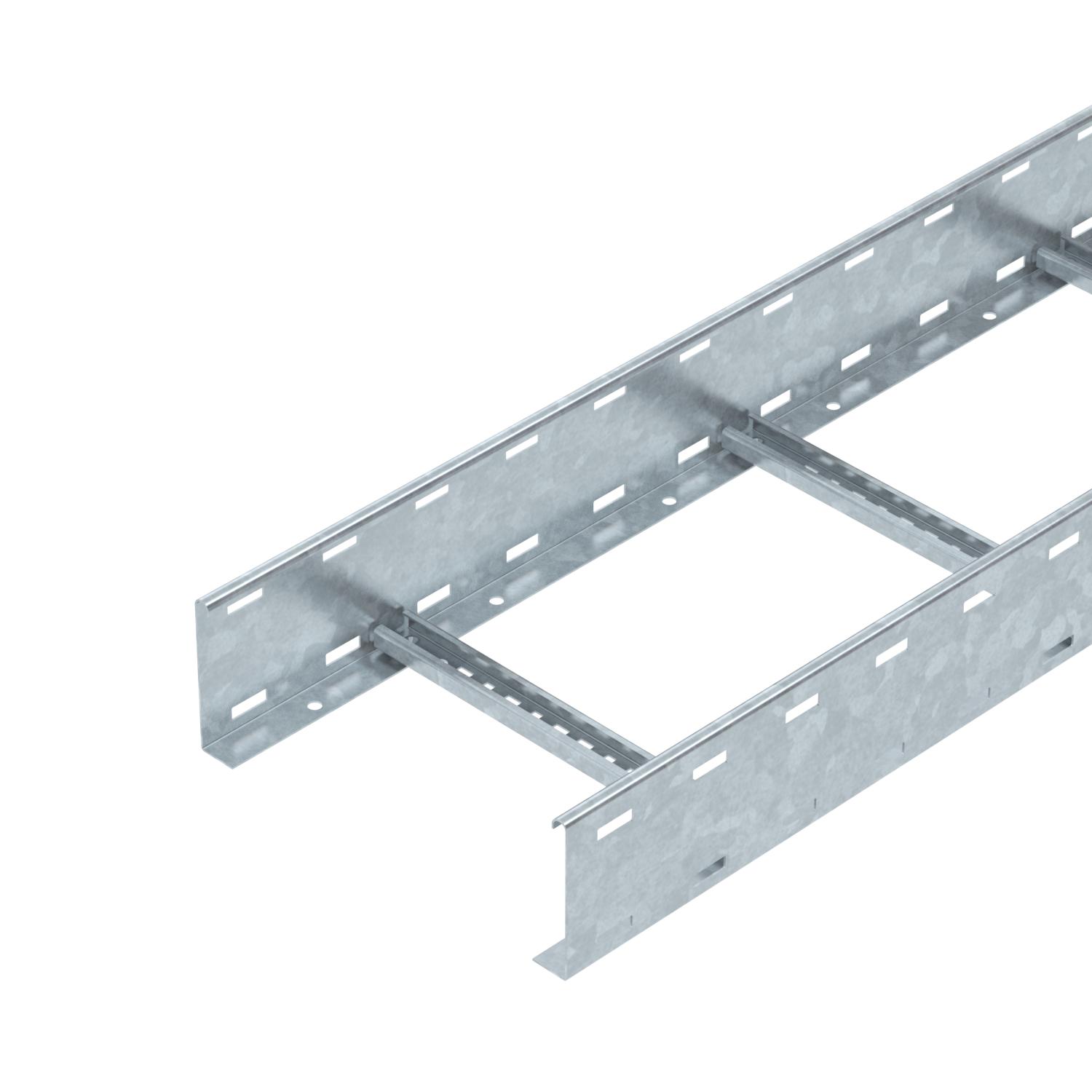

Cable ladder LCIS 110, 6 m C30 FT 6000 | 200 | 1.5 | no

Cable ladder LCIS 110, 6 m C30 FT

Item no. 6209820 | EAN 4012196431632

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

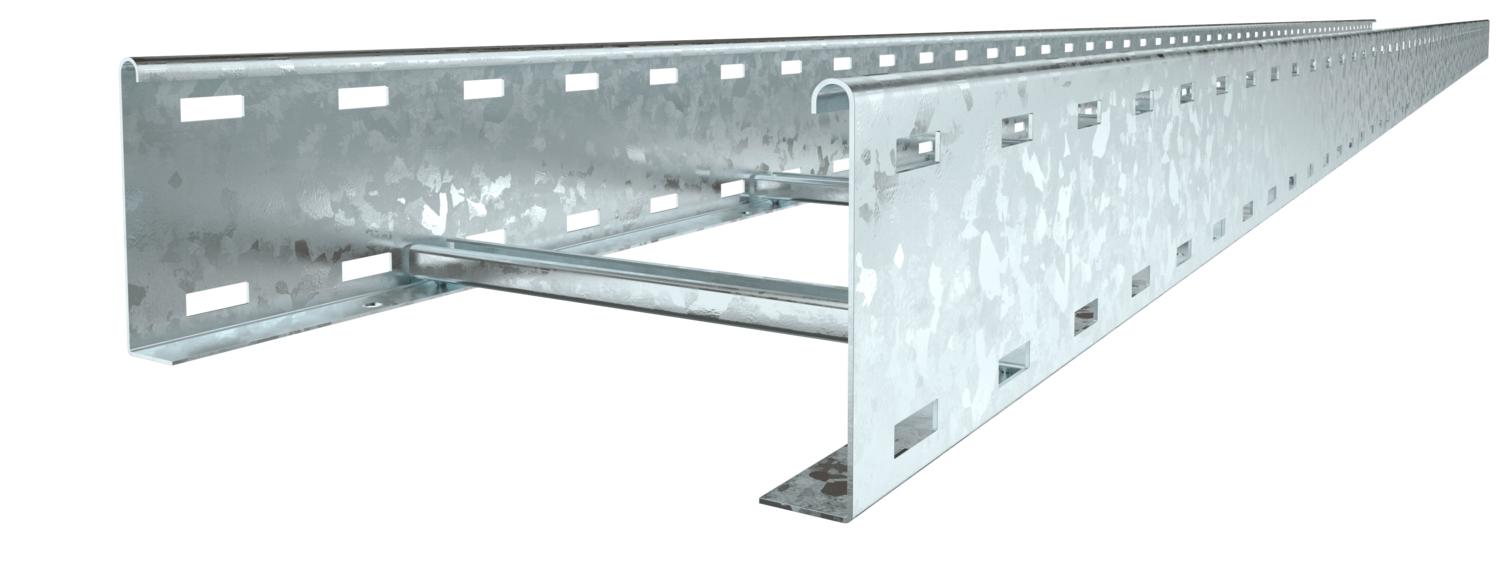

Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Dimension	110x200x6000
Fastening of rung	Welded
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Surface	Hot-dip galvanised
Usable cross-section	18000 mm²
Usable cross-section	180 cm²
Version of the rungs	Profile perforated
Wide-span version	no

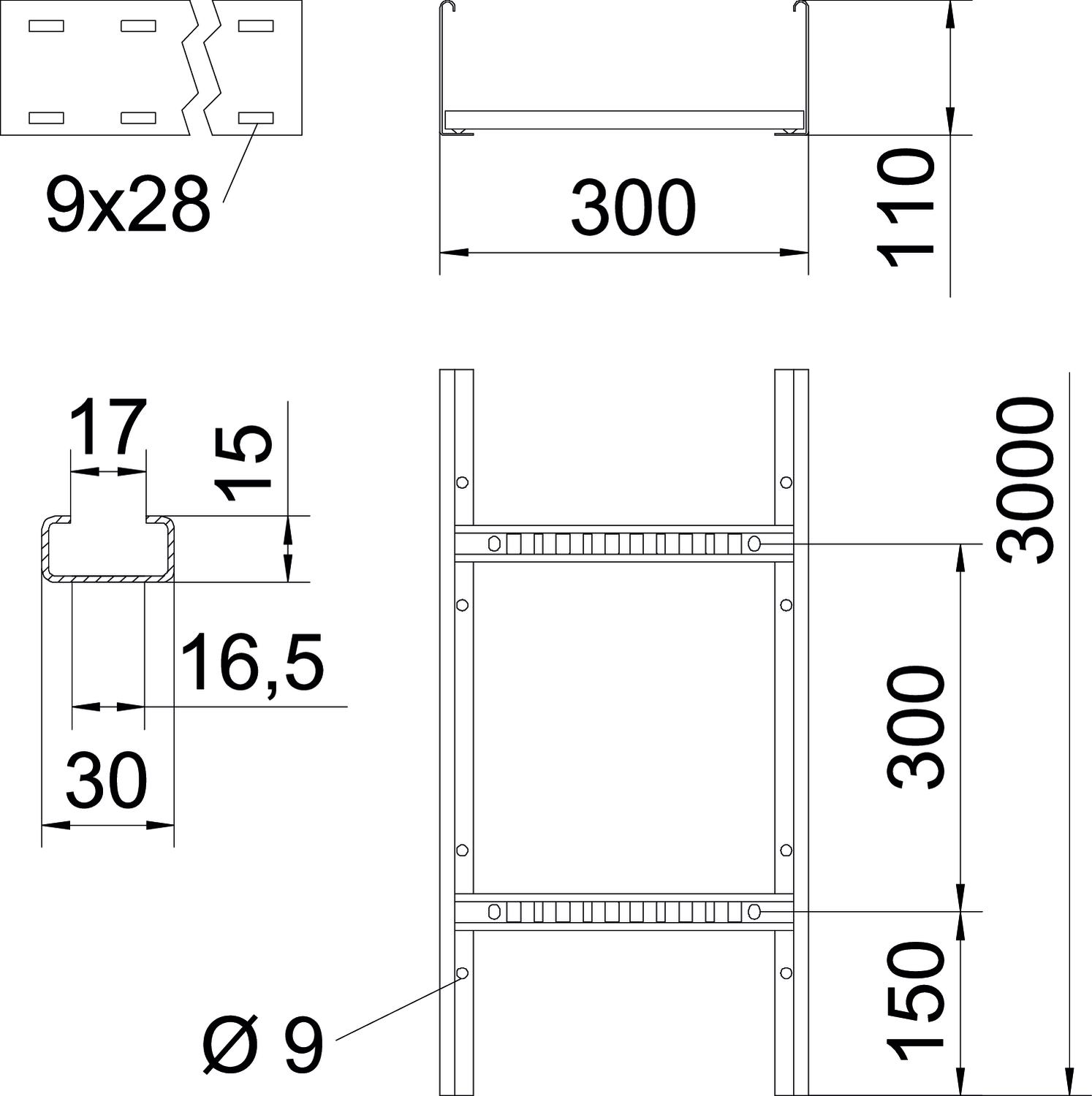

Dimensions

Dimension B	200 mm
Height	110 mm
Length	6000 mm

Length	6000 ft
Rung slot dimension	17,00
Width	200 mm

Loads

Support spacing 2.0 m	3 kN/m
Support spacing 2.5 m	2 kN/m
Support spacing 3.0 m	1,4 kN/m

Support spacing 3.5 m	1,05 kN/m
Support spacing 4.0 m	0,8 kN/m

Technical data

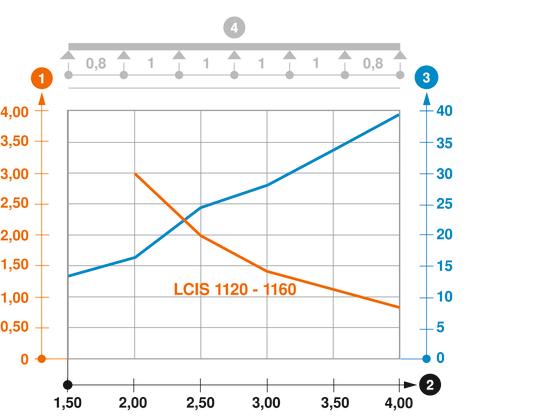

Load diagram, cable ladder, type LCIS 110

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
LCIS 1120 6 FT	6000 mm	200 mm	1.5 mm	no	6209820	m	6 m
LCIS 1130 6 FT	6000 mm	300 mm	1.5 mm	no	6209822	m	6 m
LCIS 1140 6 FT	6000 mm	400 mm	1.5 mm	no	6209824	m	6 m
LCIS 1145 6 FT	6000 mm	450 mm	1.5 mm	no	6209825	m	6 m
LCIS 1150 6 FT	6000 mm	500 mm	1.5 mm	no	6209826	m	6 m
LCIS 1160 6 FT	6000 mm	600 mm	1.5 mm	no	6209828	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	LVG 110 FT	6216548	piece	10 piece
90° bend 110 FT	LB 90 1120 R3 FT	6225142	piece	1 piece
Multifunctional connector FT	LMFV 1120 FT	6225770	piece	1 piece
Cover with turn buckle FT	DRL 200 FT	6051367	m	3 m
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
Drop-out plate FT	LAB 20 FT	6220436	piece	1 piece
