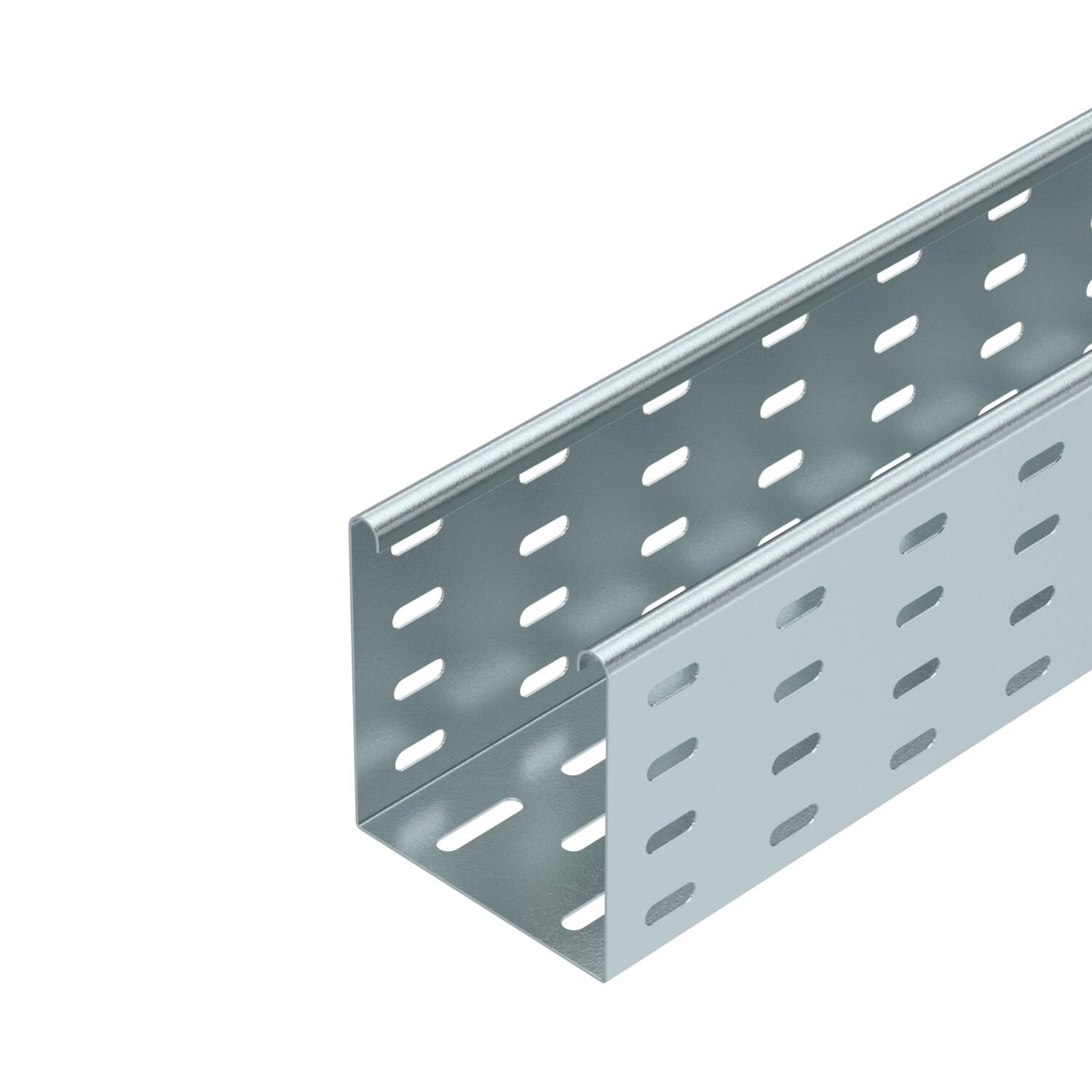

Cable tray MKS 110 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

MKS 110 = medium-duty cable tray system with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Connector version	Supplied connectors

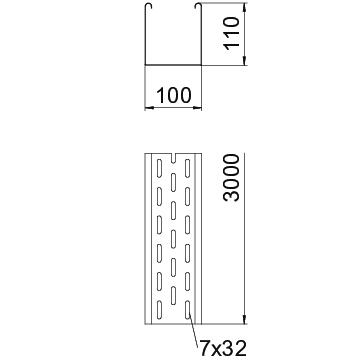

Dimension	110 x 100
Dimension	110x100x3000
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm
Plate thickness	0,04 in

Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RLVL 110 straight connector
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	108 cm²
Usable cross-section	10800 mm²
Wide-span version	no
With cover	no

Support spacing 1.5 m	1,85 kN/m
Support spacing 2.0 m	1,3 kN/m

Support spacing 2.5 m	0,75 kN/m
Support spacing 3.0 m	0,6 kN/m

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 110 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6060102	m	3 m
MKS 120 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6060196	m	3 m

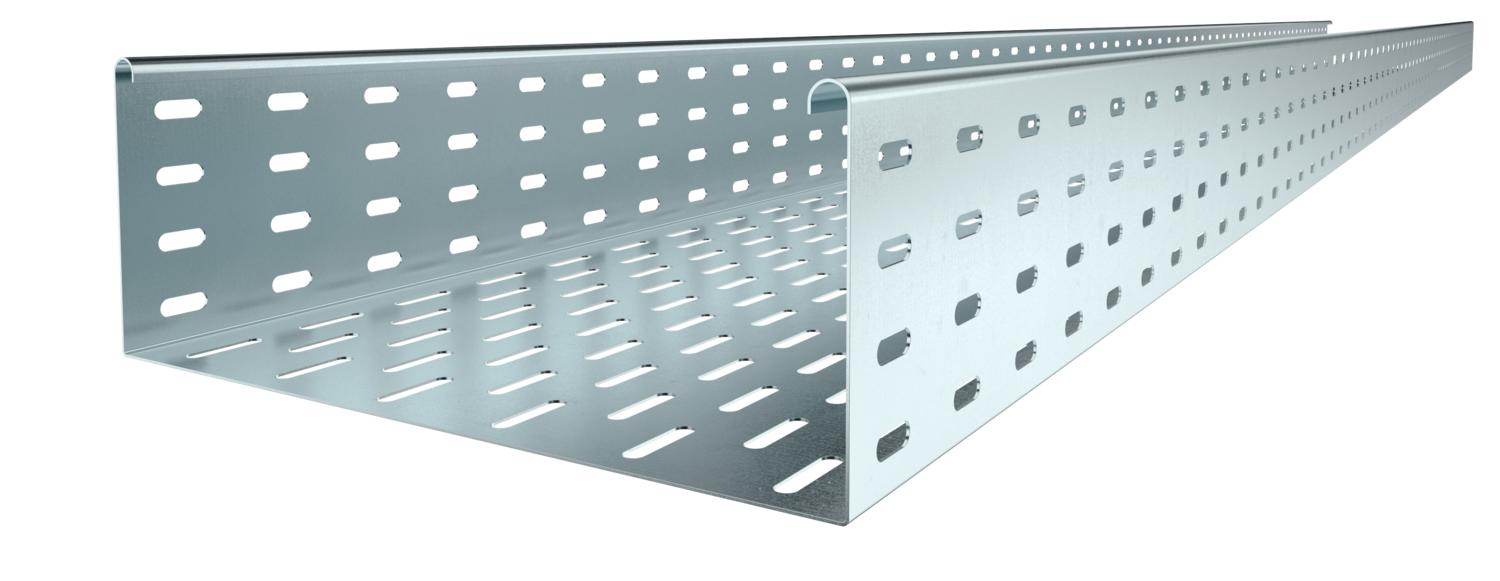

MKS 130 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6060307	m	3 m
MKS 140 FS	3000 mm	400 mm	1 mm	no	Steel	Strip galvanized	6060404	m	3 m
MKS 150 FS	3000 mm	500 mm	1 mm	no	Steel	Strip galvanized	6060412	m	3 m
MKS 155 FS	3000 mm	550 mm	1 mm	no	Steel	Strip galvanized	6060528	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

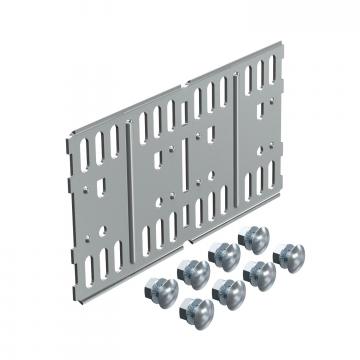

Straight and angle connector 110 FS	RLVL 110 FS	6067131	piece	10 piece

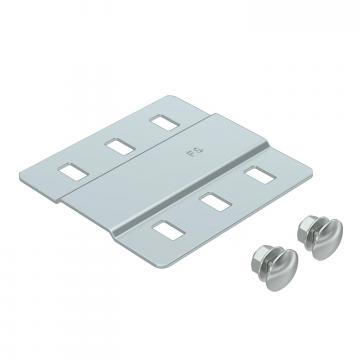

Joint plate FS	SSLB 100 FS	7070205	piece	20 piece
Cover with turn buckle FS	DRL 100 FS	6052096	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
45° bend 110 FS	RB 45 110 FS	7000634	piece	1 piece
90° bend 110 FS	RB 90 110 FS	7001894	piece	1 piece
