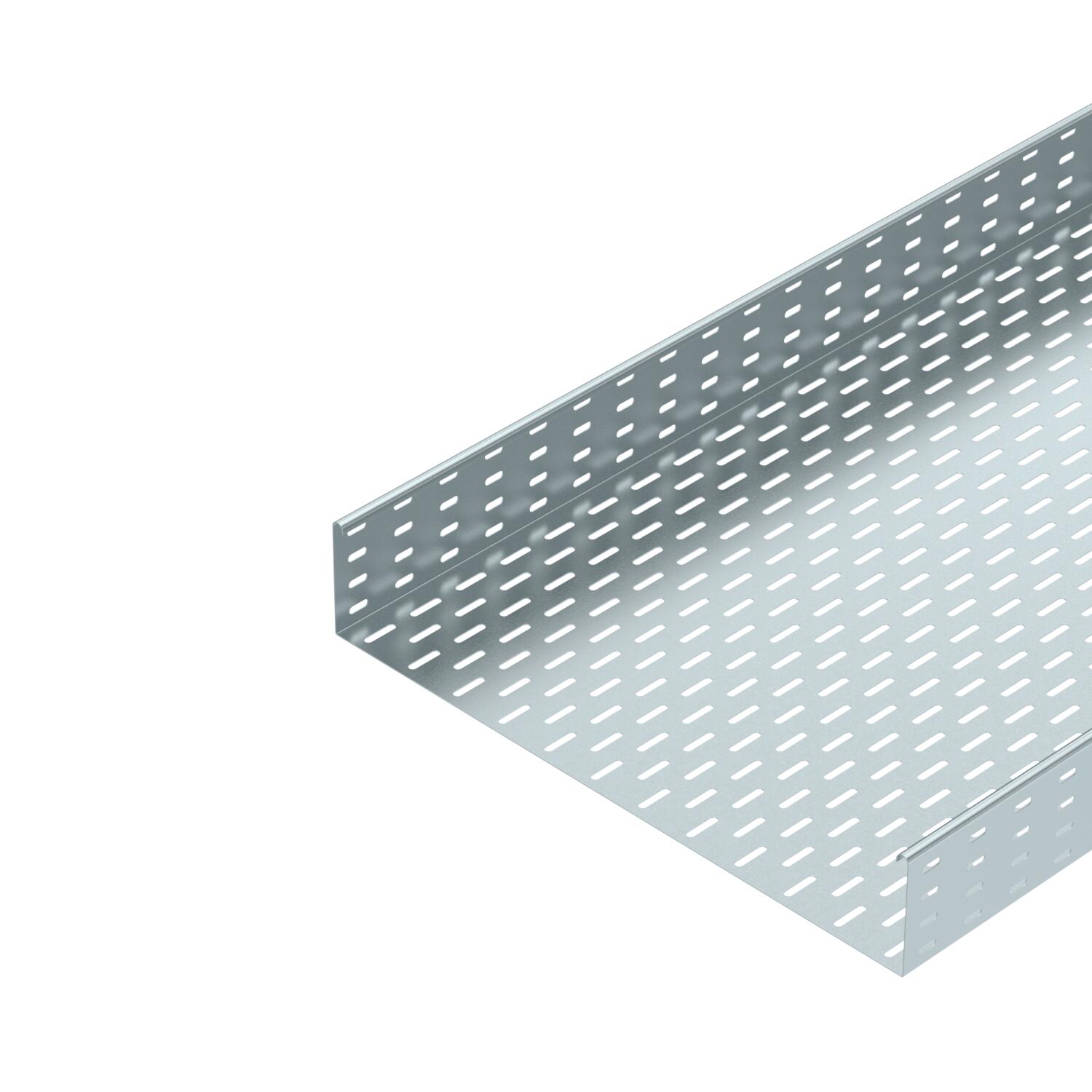

Cable tray MKS 110 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

MKS 110 = medium-duty cable tray system with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	14,8401 kg CO2e / 1 Meter
Colour	zinc
Connector version	Without connectors

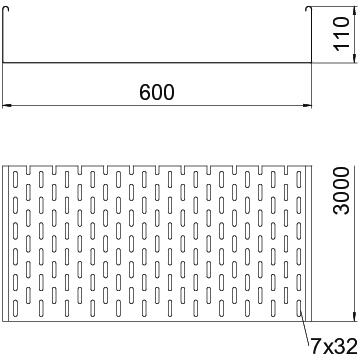

Dimension	110 x 600
Dimension	110x600x3000
Dimension W	600 mm
Height	110 mm
Height	4 in
Length	3000 mm
Length	10 ft
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm

Plate thickness	0,04 in
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	1,85 kN/m
Support spacing 2.0 m	1,3 kN/m
Support spacing 2.5 m	0,75 kN/m
Support spacing 3.0 m	0,6 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	65500 mm²
Usable cross-section	655 cm²
Usable length	3000 mm
Wide-span version	no
Width	600 mm
With cover	no

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 110 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6060102	m	3 m
MKS 120 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6060196	m	3 m
MKS 130 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6060307	m	3 m
MKS 140 FS	3000 mm	400 mm	1 mm	no	Steel	Strip galvanized	6060404	m	3 m
MKS 150 FS	3000 mm	500 mm	1 mm	no	Steel	Strip galvanized	6060412	m	3 m
MKS 160 FS	3000 mm	600 mm	1 mm	no	Steel	Strip galvanized	6060529	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector 110 FS	RLVL 110 FS	6067131	piece	10 piece
45° bend 110 FS	RB 45 160 FS	6036310	piece	1 piece
90° bend 110 FS	RB 90 160 FS	6036812	piece	1 piece
Bend, angle-adjustable, 110 FS	RB W 160 FS	6037312	piece	1 piece
Add-on tee 110 FS	RAA 160 FS	6042163	piece	1 piece
T piece 110 FS	RT 160 FS	6038312	piece	1 piece
Cross-over 110 FS	RK 160 FS	7027363	piece	1 piece
Cover with turn buckle FS	DRL 600 FS	6052606	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
