DATA module, pluggable lid Type W
morepic-1 morepic-2

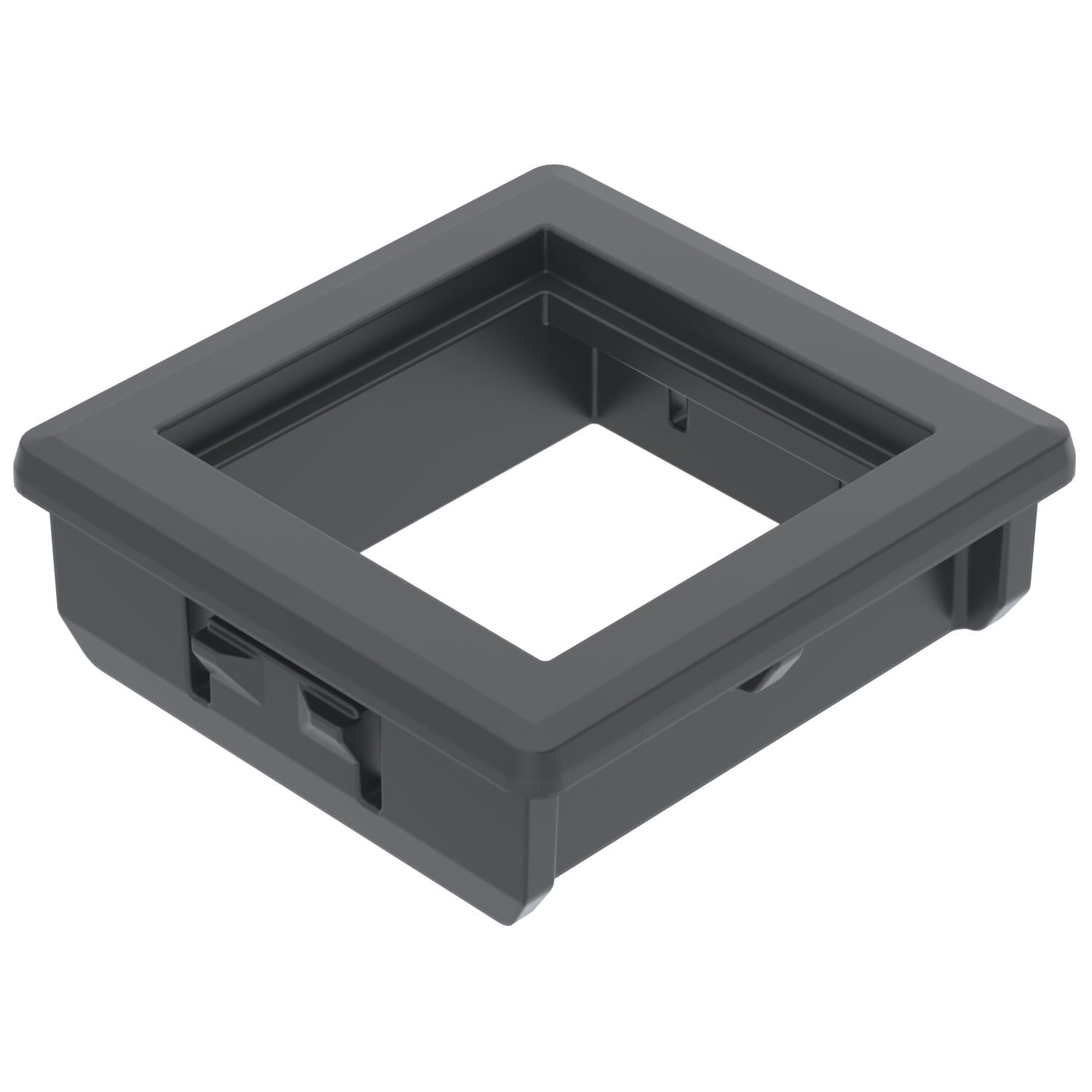

DATA module, pluggable lid

Item no. 2006316 | EAN 4012197463878

Product description
Product description
Data module as an adapter for different systems to klick into pluggable lid D04 L.
Technical data

Technical data

Colour Graphite black; RAL 9011
Combination Miscellaneous
Depth 10 mm

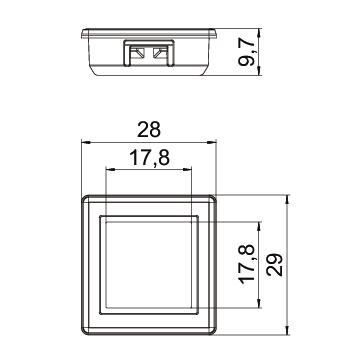

Dimension 29x28x10
Fastening type Lock
Halogen-free yes
Height 29 mm
Hinged cover no
Labelling panel Without labelling panel
Lamp-wire connector no
Material Polycarbonate
Mounting opening Type W
Mounting type Miscellaneous
Protection rating IP20
Strain relief option no
Support ring no
Surface version Matt
Transparent no
Use Installable data connector
Width 28 mm
With dust protection no
With printed label no
All types

All types

Types Mounting opening Item no. Quantity SSU
SB DT1 Type A 2006180
1 piece
SB DT2 Type B 2006182
1 piece
SB DT3 Type C 2006184
1 piece
SB DT4 Type W 2006186
1 piece
SB DT5 Type RM 2006188
1 piece
SB DT1 SW Type A 2006310
1 piece
SB DT2 SW Type B 2006312
1 piece
SB DT3 SW Type C 2006314
1 piece
SB DT4 SW Type W 2006316
1 piece
SB DT5 SW Type RM 2006318
1 piece
Downloads

Download

REACH Declaration of conformity SB DT4 SW / 2006316 , 0.12MB , pdf
Download
RoHS Declaration of conformity SB DT4 SW / 2006316 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
