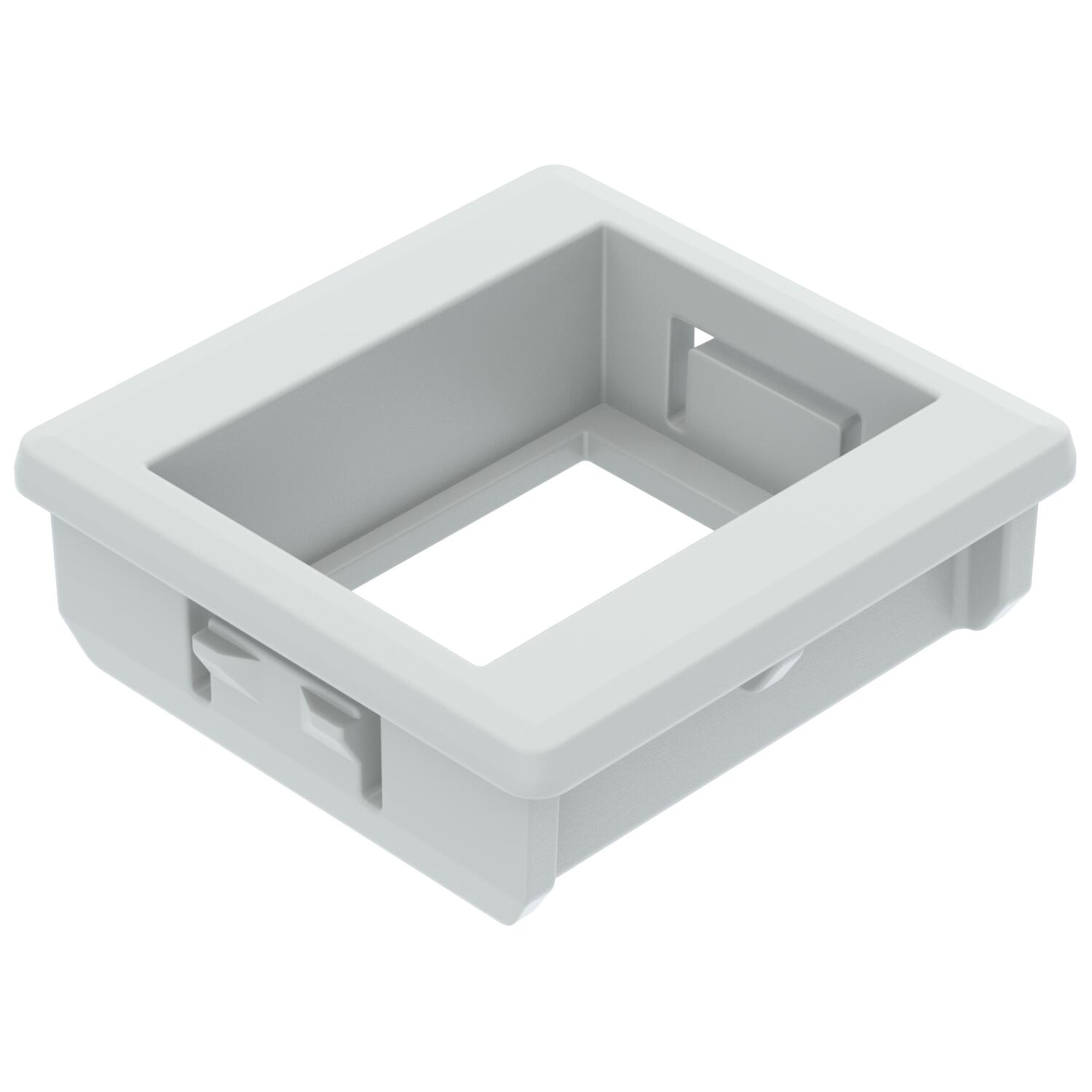

DATA module, pluggable cover

Item no. 2006184 | EAN 4012197420055

Item no. / Types

Mounting opening

Product description

Product description

Data module as an adapter of a RJ45 connector from 3M, Krone, Siemon, Radial to click into pluggable cover D04L.

Technical data

Technical data

Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0597 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035
Combination	Miscellaneous
Depth	10 mm

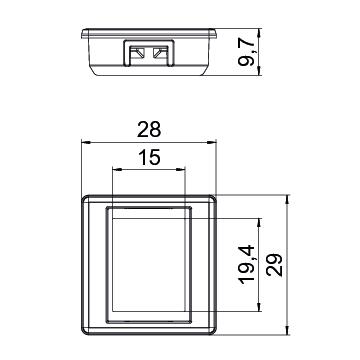

Dimension	29x28x10
Fastening type	Lock
Halogen-free	yes
Height	29 mm
Hinged cover	no
Labelling panel	Without labelling panel
Lamp-wire connector	no
Lighting	no
Material	Polycarbonate

Mounting opening	Type C
Mounting type	Miscellaneous
Outlet direction	Straight
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Installable data connector
Width	28 mm
With dust protection	no
With printed label	no
With sockets/couplings	no

All types

All types

Types	Mounting opening	Item no.	Quantity	SSU
SB DT1	Type A	2006180	piece	1 piece
SB DT2	Type B	2006182	piece	1 piece
SB DT3	Type C	2006184	piece	1 piece
SB DT4	Type W	2006186	piece	1 piece
SB DT5	Type RM	2006188	piece	1 piece
SB DT1 SW	Type A	2006310	piece	1 piece
SB DT2 SW	Type B	2006312	piece	1 piece
SB DT3 SW	Type C	2006314	piece	1 piece
SB DT4 SW	Type W	2006316	piece	1 piece
SB DT5 SW	Type RM	2006318	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Pluggable cover, unequipped	D04 L	2006130	piece	1 piece
DATA module, pluggable cover	SB DT1	2006180	piece	1 piece
DATA module, pluggable cover	SB DT2	2006182	piece	1 piece
DATA module, pluggable cover	SB DT4	2006186	piece	1 piece
DATA module, pluggable cover	SB DT5	2006188	piece	1 piece
Lower part junction box, with fastening element	UT01+SB BE	2006010	piece	1 piece
T 100 junction box, with strain relief entries IP 31	T 100 ZE IP30	2007805	piece	1 piece
Fastening element for junction boxes	SB BE	2006150	piece	10 piece
Separating element juncion box	SB TR	2006156	piece	5 piece
Pluggable cover, unequipped	D01 L	2006040	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD	2006042	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD(1+1)	2006044	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 3x3p WD	2006046	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD	2006048	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD(2+2)	2006050	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD	2006058	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD(4+2)	2006060	piece	1 piece
Pluggable cover, unequipped	D02 L	2006080	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x3p+1x4p WD	2006082	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x4p WD	2006084	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x5p WD	2006086	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p WD	2006088	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p DALI WD	2006094	piece	1 piece
Pluggable cover, equipped, OBO WINSTA MIDI	D02 2x5p DALI WG	2006096	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x5p DALI WD	2006098	piece	1 piece
Pluggable cover, equipped, Modul 45	D03 2MSD WS	2006116	piece	1 piece
Junction box T100, 2 Modul 45 sockets in cover, 1-pin	T 100 2MSD WS	2007821	piece	1 piece
Junction box T100, 4 Modul 45 sockets in cover, 2-pin	T 100 4MSD WS	2007825	piece	1 piece
