Device installation trunking Rapid 45-2, trunking width 100, trunking height 53 2000 | Light grey; RAL 7035
morepic-1 morepic-2 morepic-3 video-1 video-2

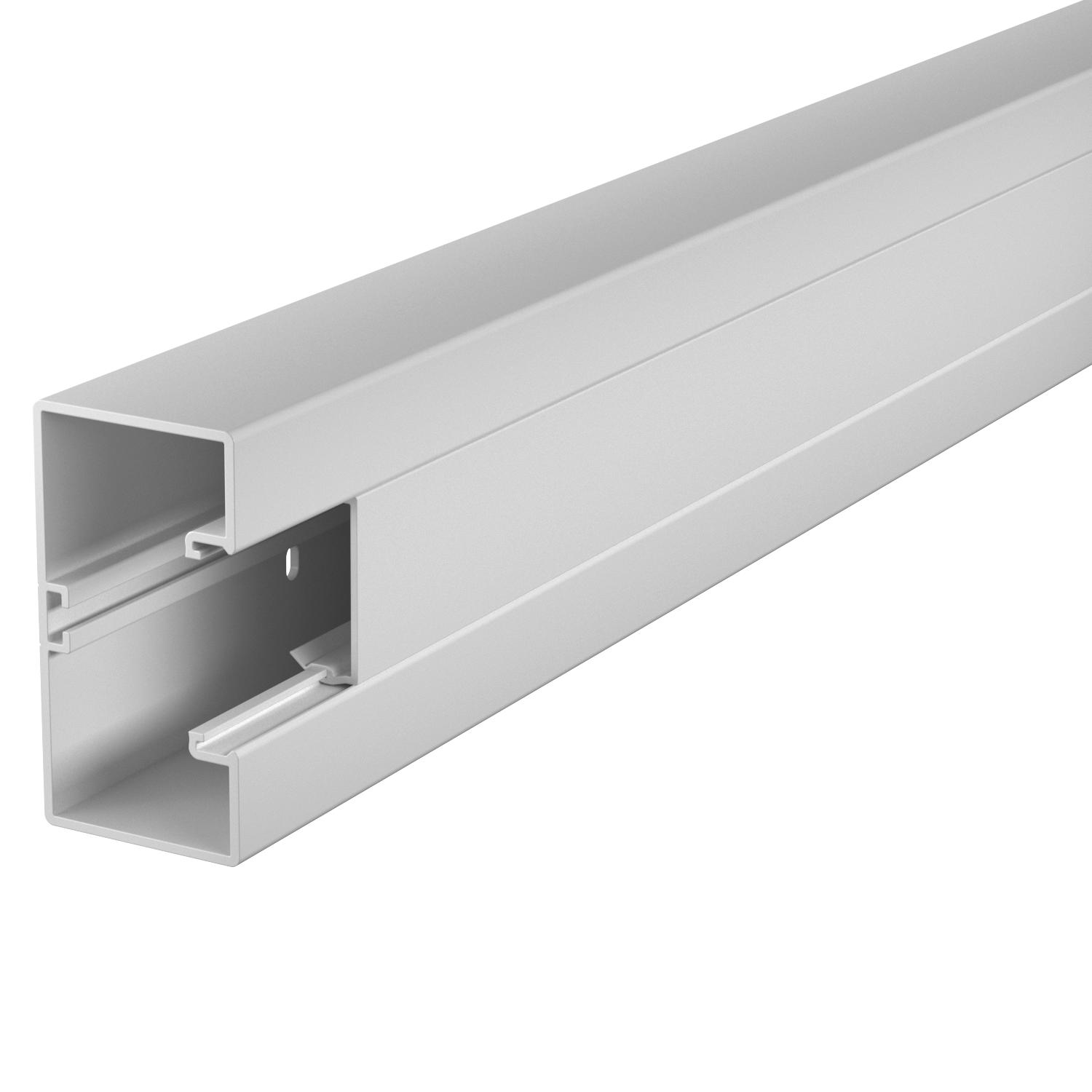

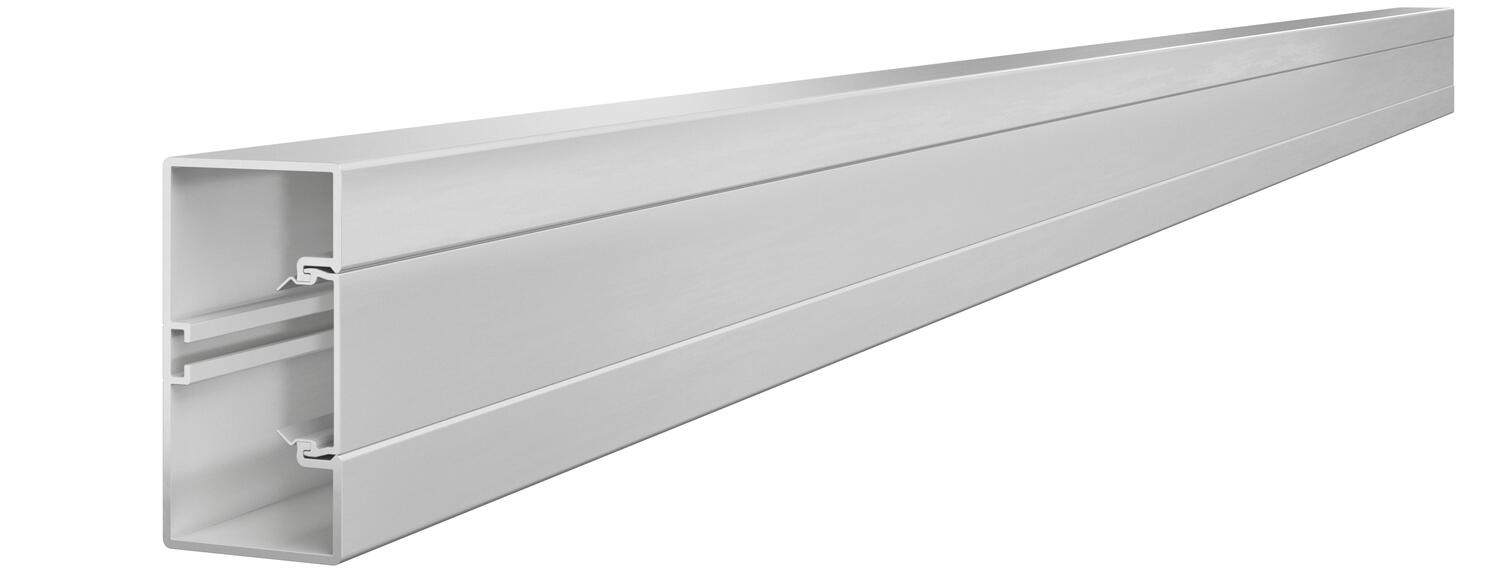

Device installation trunking Rapid 45-2, trunking width 100, trunking height 53

Item no. 6113002 | EAN 4012196419074

2000 mm
Product description
Product description
Trunking base and cover with base perforation for direct wall mounting.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Base perforation With base perforation
Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 2,656 kg CO2e / 1 Meter
Colour Light grey; RAL 7035
Cover mounting type Internal
Cover supplied yes
Cover width 45 mm

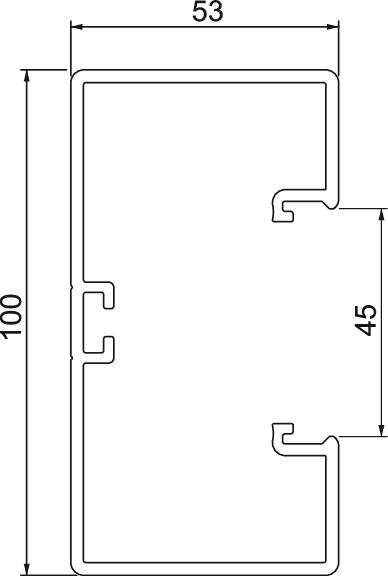

Dimension 53x100x2000
Duct connector no
Halogen-free no
Height 53 mm
Length 2000 mm
Material Polyvinylchloride
Mounting perforation in base yes
Number of covers 1
Number of insertable partitions 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP40
Protection rating IK code IK08
Protective film yes
Rear panel version (inner side) Continuous C profile
Rectangular shape yes
Symmetrical yes
Usable cross-section 4400 mm²
Width 100 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GK-53100RW 2000 mm Pure white; RAL 9010 6113000
2 m
GK-53100LGR 2000 mm Light grey; RAL 7035 6113002
2 m
GK-53100SW 2000 mm Jet black; RAL 9005 6113003
12 m
Accessories

System accessories

Products Types Item no. Quantity SSU

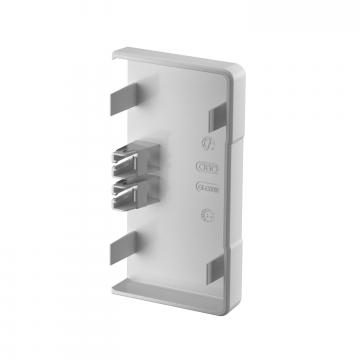

End piece, for device installation trunking Rapid 45-2 type GK-53100 End piece, for device installation trunking Rapid 45-2 type GK-53100 GK-E53100LGR 6113112
1 piece

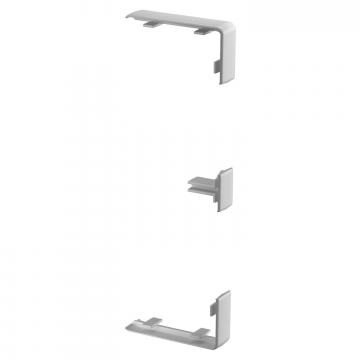

Trunking connector and joint cover Trunking connector and joint cover GK-KS45-1LGR 6113022
6 piece

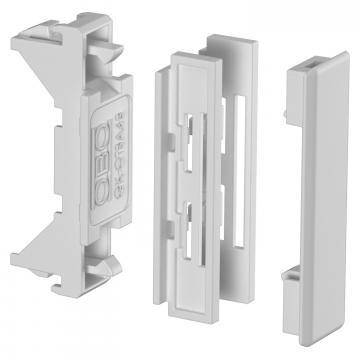

Joint cover Joint cover GK-OTSA45LGR 6113032
6 piece
Partition GK-TW53 Partition GK-TW53 GK-TW53 6113290
2 m

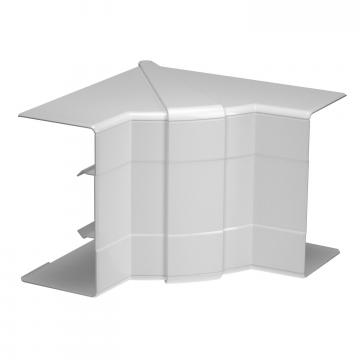

Internal corner hood, for device installation trunking Rapid 45-2 type GK-53100 Internal corner hood, for device installation trunking Rapid 45-2 type GK-53100 GK-IH53100LGR 6113072
1 piece

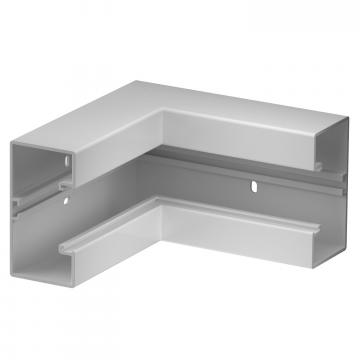

Internal corner, for device installation trunking Rapid 45-2 type GK-53100 Internal corner, for device installation trunking Rapid 45-2 type GK-53100 GK-IS53100LGR 6113062
1 piece

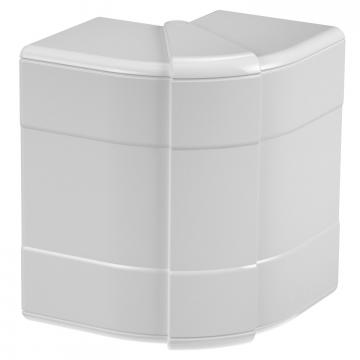

External corner hood, for device installation trunking Rapid 45-2 type GK-53100 External corner hood, for device installation trunking Rapid 45-2 type GK-53100 GK-AH53100LGR 6113052
1 piece

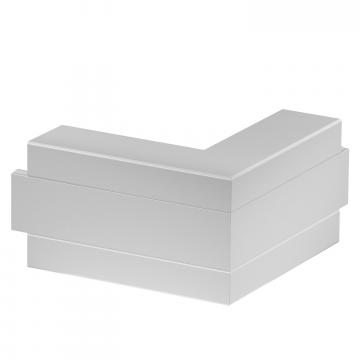

External corner, for device installation trunking Rapid 45-2 type GK-53100 External corner, for device installation trunking Rapid 45-2 type GK-53100 GK-AS53100LGR 6113042
1 piece

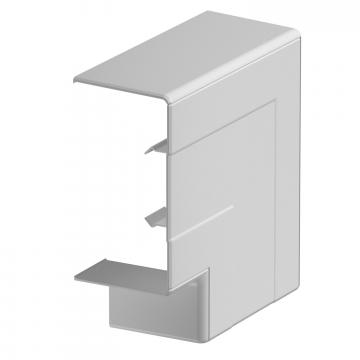

Flat angle hood, for device installation trunking Rapid 45-2 type GK-53100 Flat angle hood, for device installation trunking Rapid 45-2 type GK-53100 GK-FH53100LGR 6113092
1 piece
Flat angle, for device installation trunking Rapid 45-2 type GK-53100 Flat angle, for device installation trunking Rapid 45-2 type GK-53100 GK-FS53100LGR 6113082
1 piece

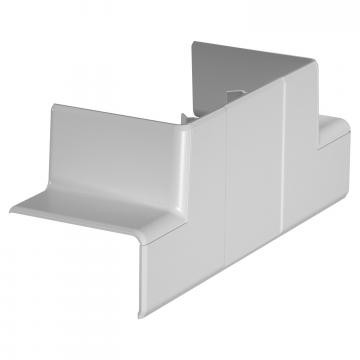

T piece adapter, for device installation trunking Rapid 45-2 type 53100 T piece adapter, for device installation trunking Rapid 45-2 type 53100 GK-TR53100LGR 6113102
1 piece

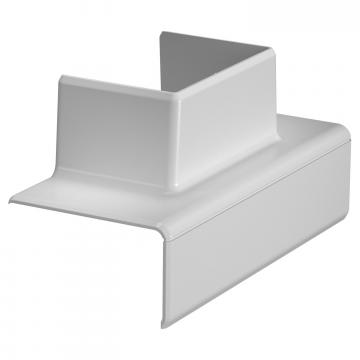

T piece adapter WDK 40060 T piece adapter WDK 40060 GK-TA WDK 1LGR 6113312
1 piece

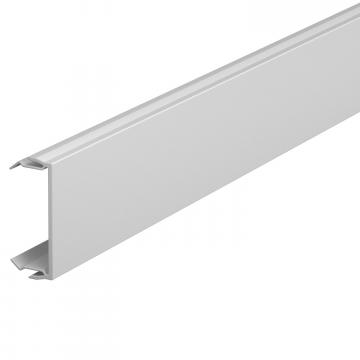

Cover, for device installation trunking Rapid 45-2 Cover, for device installation trunking Rapid 45-2 GK-OT45LGR 6113012
2 m
Downloads

Download

Download

EU declaration of conformity GK-53100LGR / 6113002 , 0.10MB , pdf
Download
UK Declaration of Conformity GK-53100LGR / 6113002 , 0.09MB , pdf
Download
REACH Declaration of conformity GK-53100LGR / 6113002 , 0.12MB , pdf
Download
RoHS Declaration of conformity GK-53100LGR / 6113002 , 0.09MB , pdf
Download

Download
Download

Download

No invitation to tender text is available for this product.
