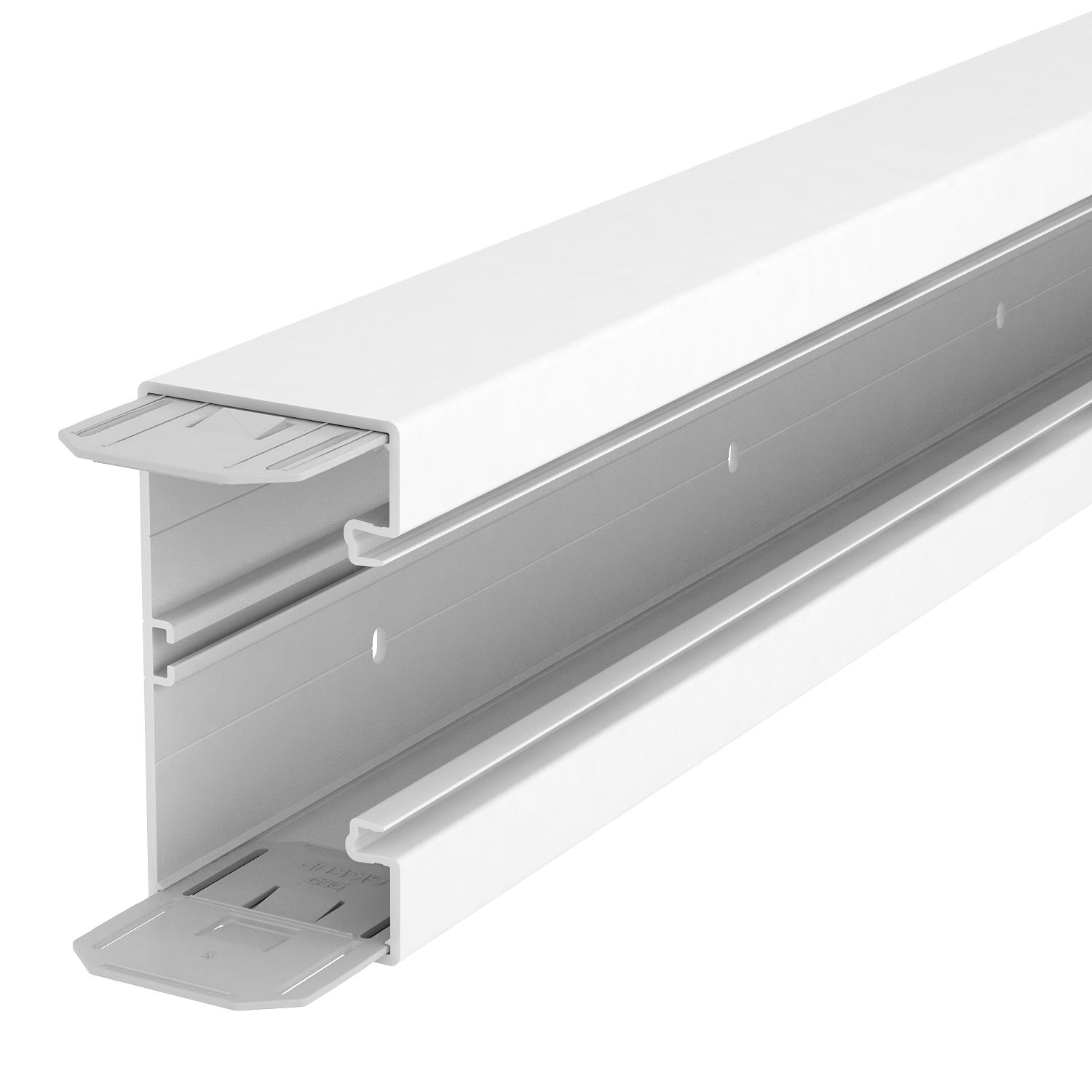

Device installation trunking Rapid 80, trunking width 130, trunking height 70 2000 | Pure white; RAL 9010

Device installation trunking Rapid 80, trunking width 130, trunking height 70

Item no. 6274500 | EAN 4012195656739

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

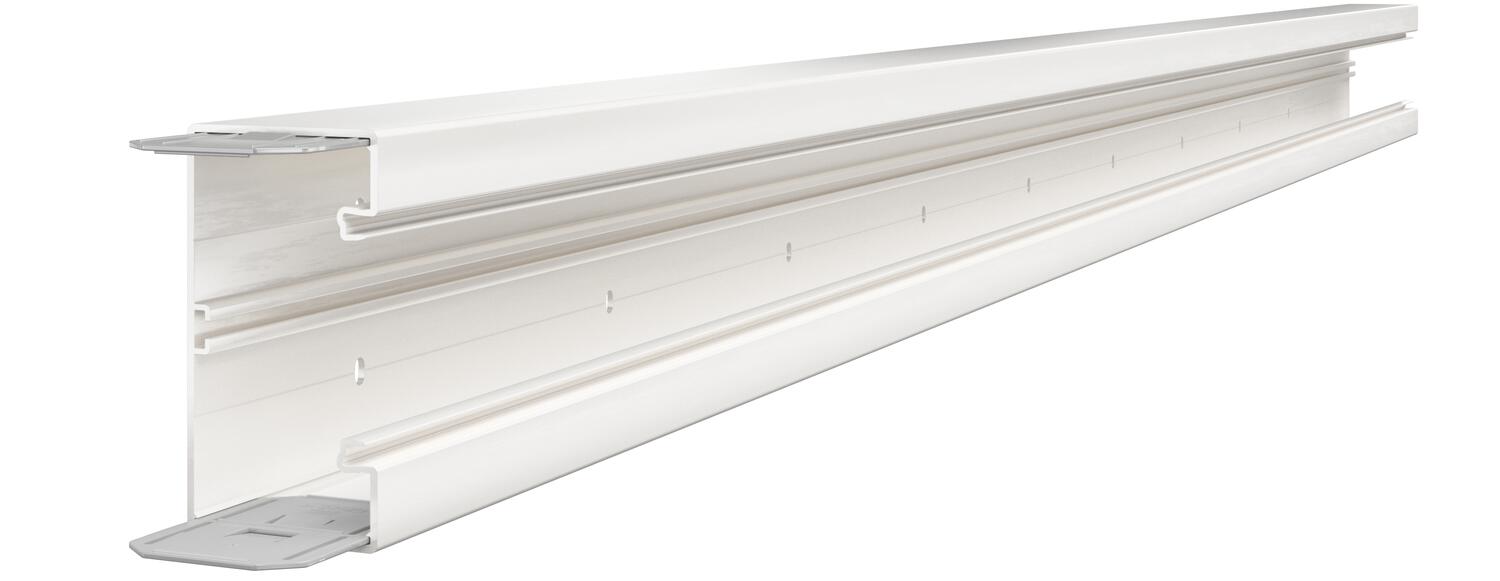

GK device installation trunking, made of lead-free PVC, suitable for installing directly on the wall or on wall panels. Fastening takes place using the perforation in the trunking. The GK device installation trunking possesses a C profile on the floor to accept a plastic partition. All the switch programmes with a support ring and support clamp design as well as Modul 45 installation devices can be installed in the accessory mounting boxes of series 71GD.... The system opening is 76.5 mm. On each trunking length, a coupling pair is pre-assembled on one side. The cover must be ordered separately.

Technical data

Technical data

Antibacterial treatment	no
Base perforation	With base perforation
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	3,0644 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Cover mounting type	Internal
Cover supplied	no
Cover width	76,5 mm

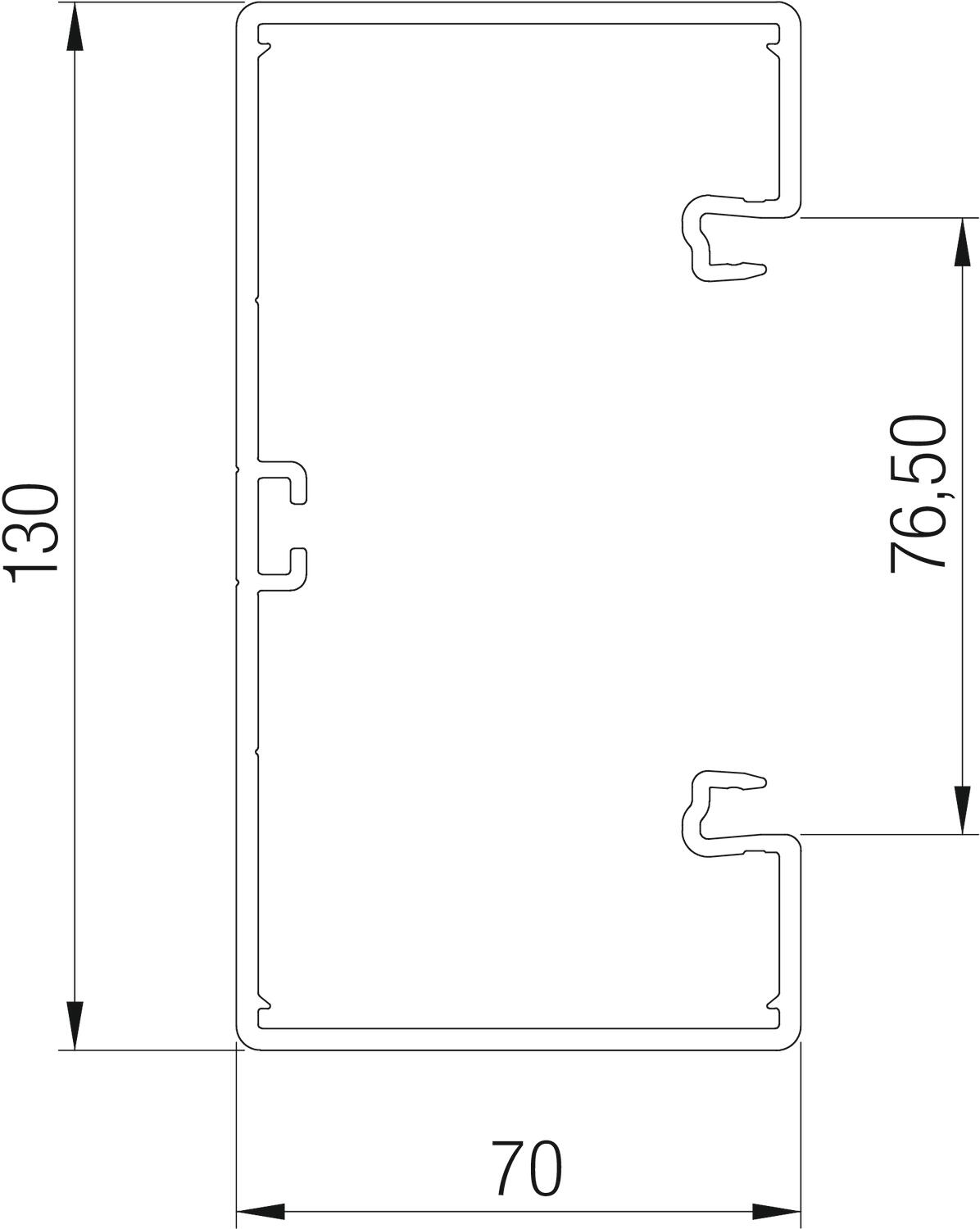

Dimension	70x130x2000
Duct connector	yes
Halogen-free	no
Height	70 mm
Length	2000 mm
Material	Polyvinylchloride

Mounting perforation in base	yes
Number of covers	1
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Protection rating	IP30
Protection rating IK code	IK08
Protective film	yes
Rear panel version (inner side)	Continuous C profile
Rectangular shape	yes
Symmetrical	yes
Usable cross-section	7600 mm²
Width	130 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
GK-70130RW	2000 mm	Pure white; RAL 9010	6274500	m	2 m
GK-70130CW	2000 mm	Cream; RAL 9001	6274501	m	2 m
GK-70130LGR	2000 mm	Light grey; RAL 7035	6274502	m	2 m
GK-70130SW	2000 mm	Jet black; RAL 9005	6274504	m	2 m
GK-70130GR	2000 mm	Stone grey; RAL 7030	6274506	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece

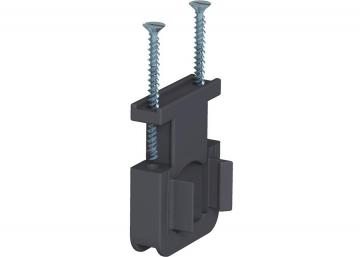

7ZE strain relief	7ZE	6288790	piece	50 piece
Plastic trunking cover, smooth	GK-OTGRW	6278680	m	2 m

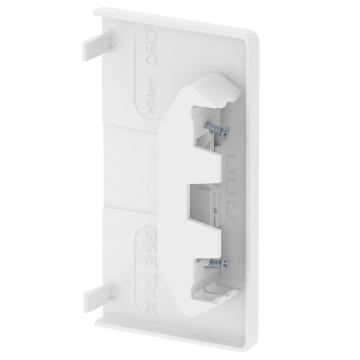

End piece, for device installation trunking Rapid 80 type 70130	GK-E70130RW	6274570	piece	1 piece
Partition GK-TW70	GK-TW70	6274900	m	2 m

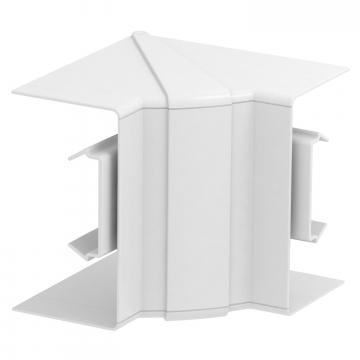

Internal corner cover, for device installation trunking Rapid 80 type 70130	GK-IH70130RW	6274440	piece	1 piece

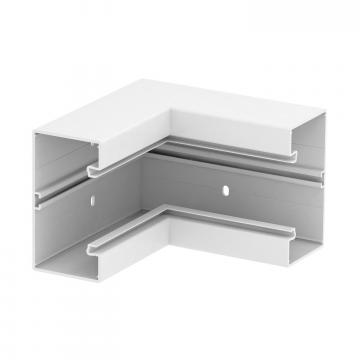

Internal corner, for device installation trunking Rapid 80 type GK-70130	GK-I70130RW	6274540	piece	1 piece

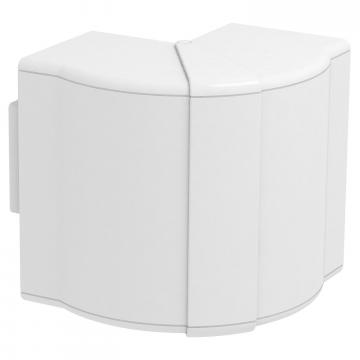

External corner cover, for device installation trunking Rapid 80 type 70130	GK-AH70130RW	6274410	piece	1 piece

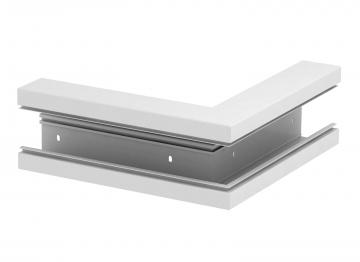

External corner, for device installation trunking Rapid 80 type GK-70130	GK-A70130RW	6274510	piece	1 piece

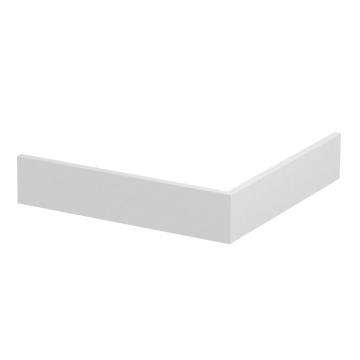

External corner cover, smooth	GK-OTGARW	6274790	piece	1 piece

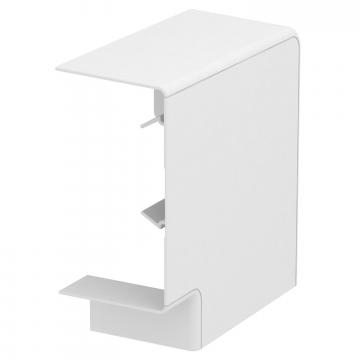

Flat angle cover, for device installation trunking Rapid 80 type 70130	GK-FH70130RW	6274420	piece	1 piece

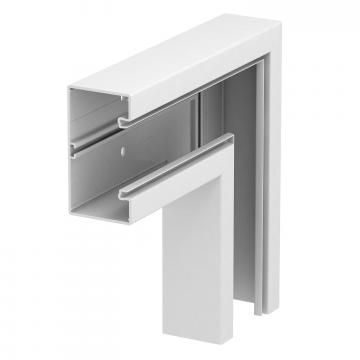

Flat angle, for device installation trunking Rapid 80 type GK-70130	GK-F70130RW	6274520	piece	1 piece

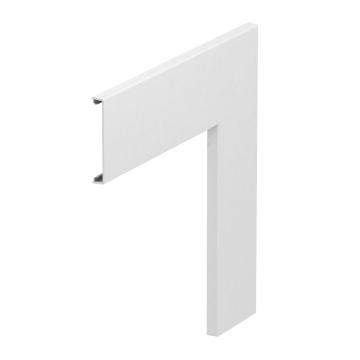

Flat angle cover, smooth	GK-OTGFRW	6274490	piece	1 piece

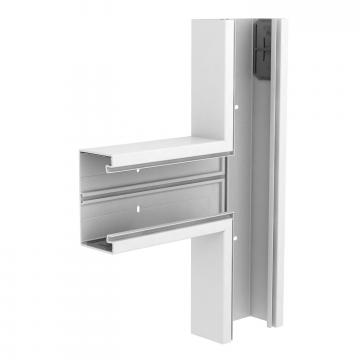

T piece, for device installation trunking Rapid 80 type GK-70130	GK-T70130RW	6274560	piece	1 piece

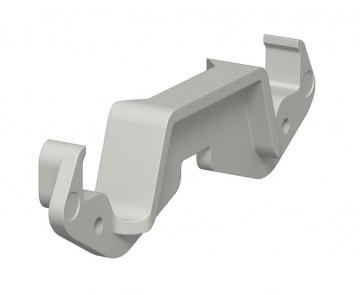

Duct clamp KL80A	KL80A	6288640	piece	20 piece

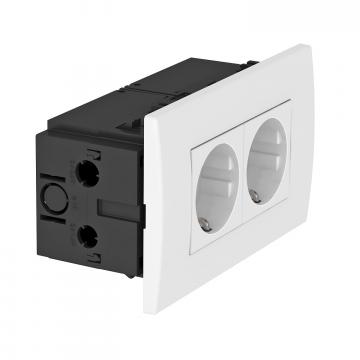

AR45 socket unit, double	SDE-RW D0RW2	6119407	piece	1 piece
