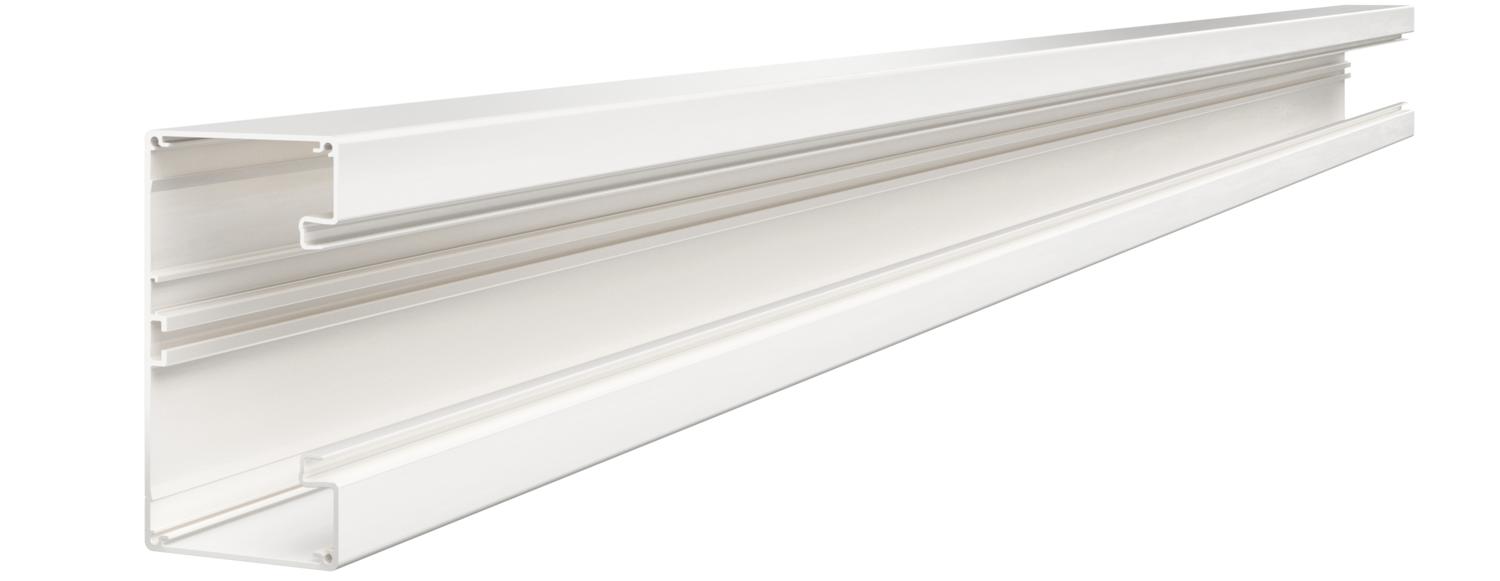

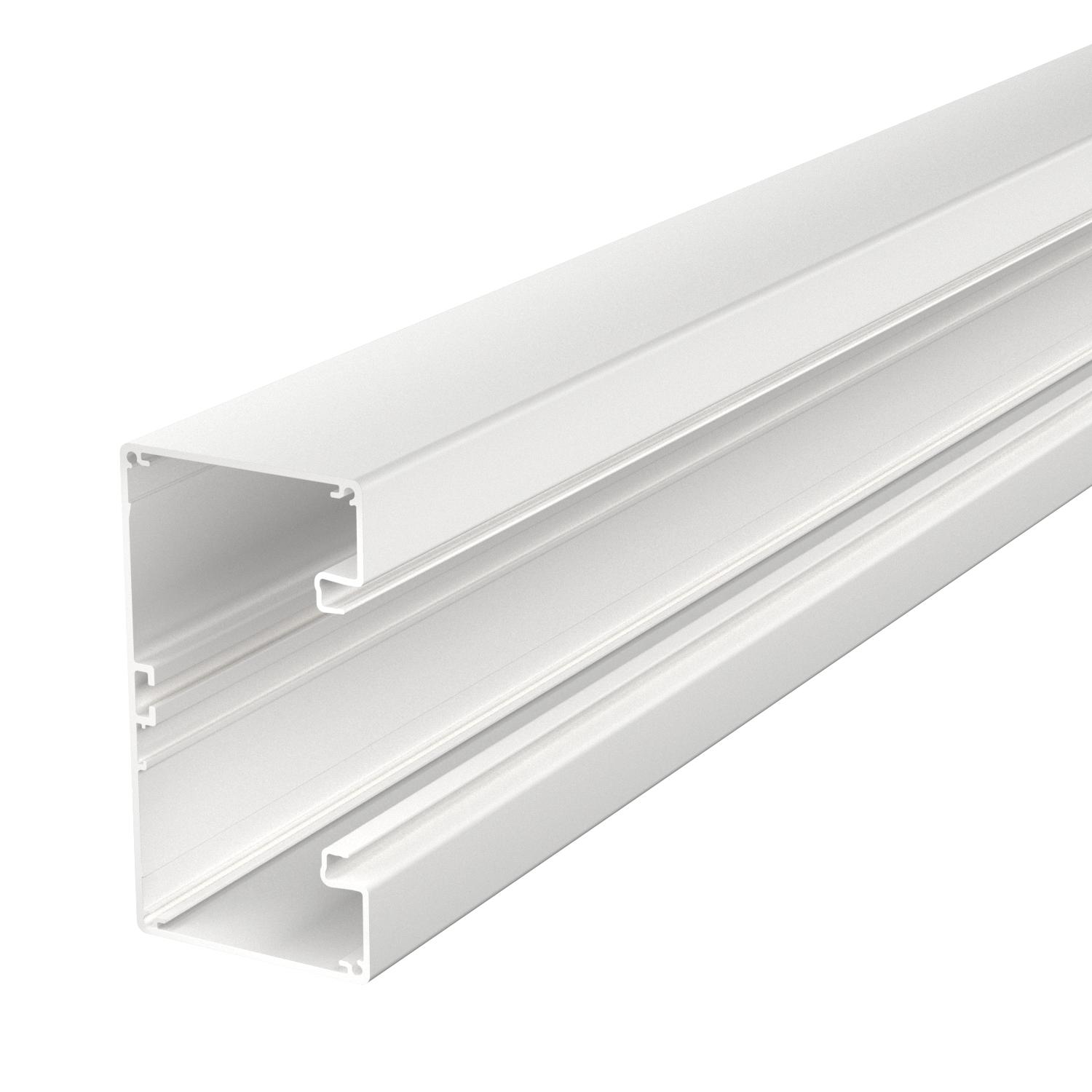

Device installation trunking Rapid 80, trunking width 130, trunking height 70, symmetrical 2000

Device installation trunking Rapid 80, trunking width 130, trunking height 70, symmetrical

Item no. 6279300 | EAN 4012195768364

Item no. / Types

Length	2000 mm

Product description

Product description

Device installation trunking Without base perforation suitable for direct wall mounting or mounting on panels. Over-lengths up to 6,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the device installation trunking are laminated.
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by tolerance based on the material and process conditions, cannot be avoided (according to DIN 17 611). Alternatively, we recommend powder coating in the colour RAL 9006 (white aluminium).

The cover must be ordered separately. We recommend the use of the duct clamp.

Technical data

Technical data

Antibacterial treatment	no
Base perforation	Without base perforation
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	28,2818 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Cover mounting type	Internal
Cover supplied	no
Cover width	76,5 mm

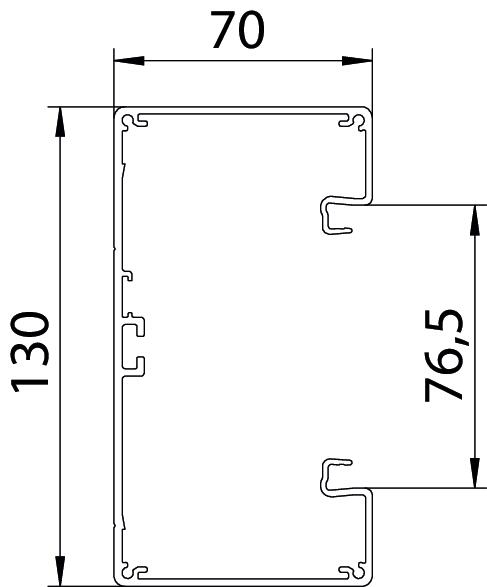

Dimension	70x130x2000
Duct connector	no
Halogen-free	yes
Height	70 mm
Length	2000 mm
Material	Aluminium

Mounting perforation in base	no
Number of covers	1
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-25 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	yes
Rear panel version (inner side)	Continuous C profile
Rectangular shape	yes
Symmetrical	yes
Usable cross-section	6480 mm²
Width	130 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
GA-S70130RW	2000 mm	6279300	m	2 m
GA-S70130EL	2000 mm	6279303	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Coupling GA-KUP70	GA-KUP70	6279701	PU	1 PU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
7ZE strain relief	7ZE	6288790	piece	50 piece
Aluminium trunking cover	GA-OTRW	6279720	m	2 m
Trunking cover, aluminium, 100 mm	GA-OTRW 100	6279715	piece	1 piece
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece

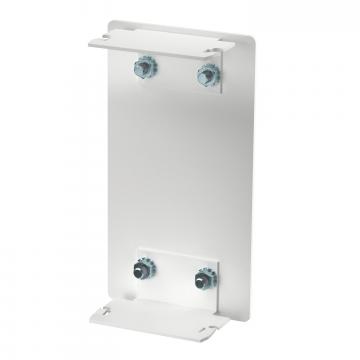

End piece, for device installation trunking Rapid 80 type GA-70130	GA-E70130RW	6279370	piece	1 piece
Partition GA-TW70	GA-TW70	6279711	m	2 m

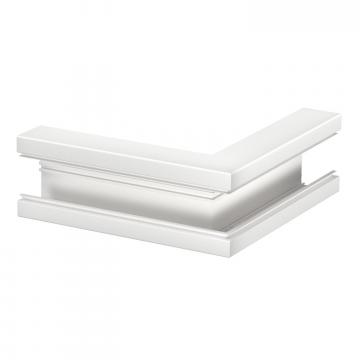

External corner, symmetrical, for device installation trunking Rapid 80 type GA-S70130	GA-SA70130RW	6279310	piece	1 piece
Aluminium external corner cover	GA-OTARW	6279725	piece	1 piece

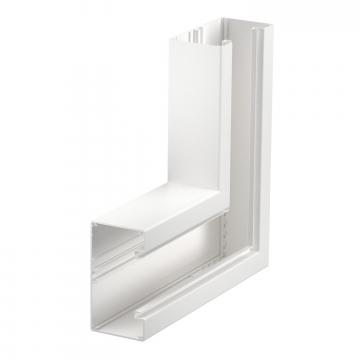

Flat angle, symmetrical, for device installation trunking Rapid 80 type GA-S70130	GA-SF70130RW	6279320	piece	1 piece
Aluminium flat angle cover	GA-OTFRW	6279734	piece	1 piece

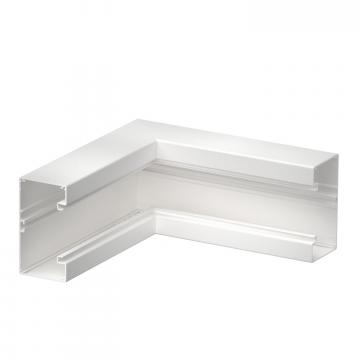

Internal corner, symmetrical, for device installation trunking Rapid 80 type GA-S70130	GA-SI70130RW	6279340	piece	1 piece
T piece, symmetrical, for device installation trunking Rapid 80 type GA-S70130	GA-ST70130RW	6279360	piece	1 piece
Duct clamp KL80A	KL80A	6288640	piece	20 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
AR45 socket unit, double	SDE-RW D0RW2	6119407	piece	1 piece
