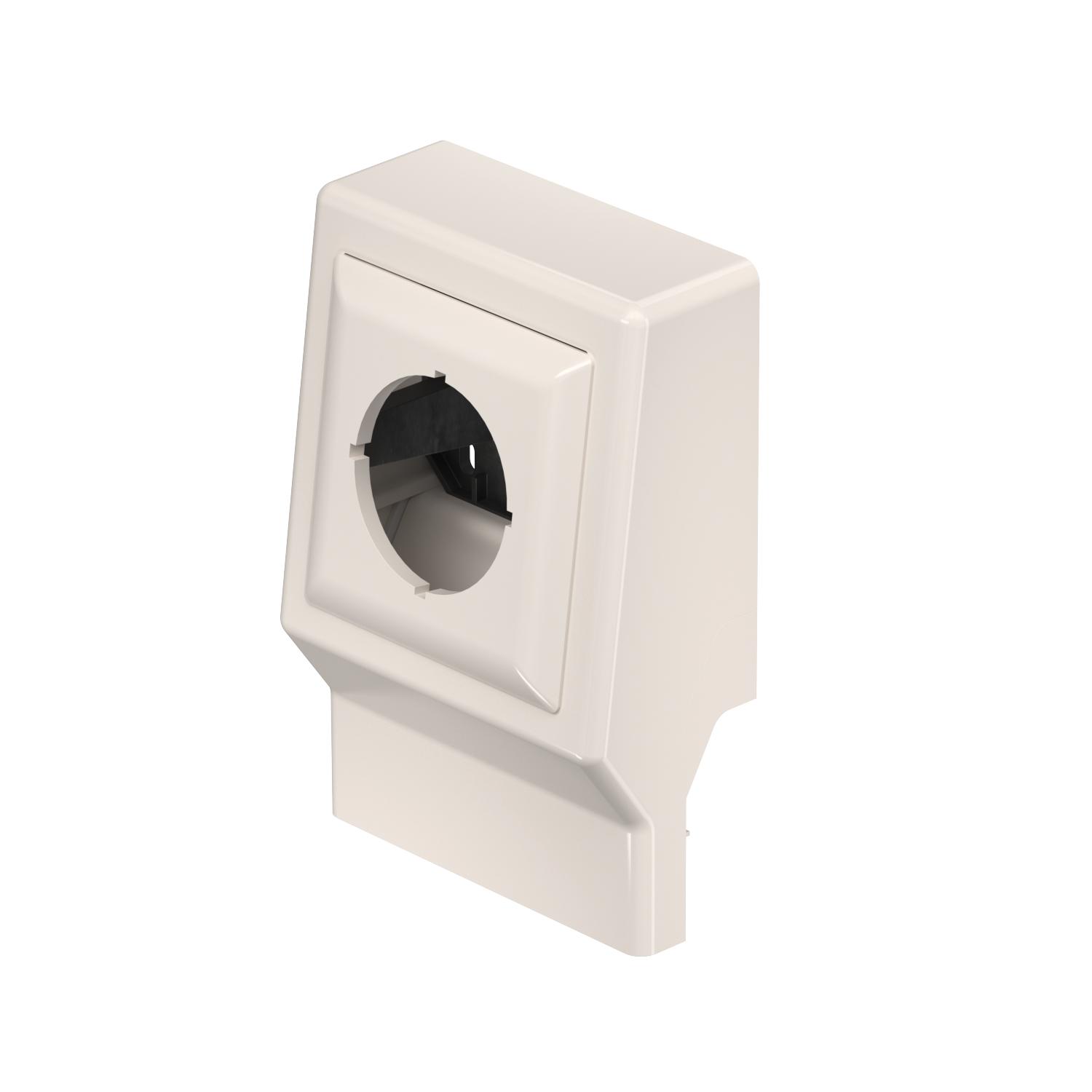

Device support SL ETler5070
Item no. 6132239 | EAN 4012196720668
- Product description
-
Product descriptionEmpty device support for skirting trunking for the installation of standard devices in support ring and support clamp form with 60 mm fastening track.
For snapping onto the cover of the trunking system.
-
- Technical data
-
Technical data

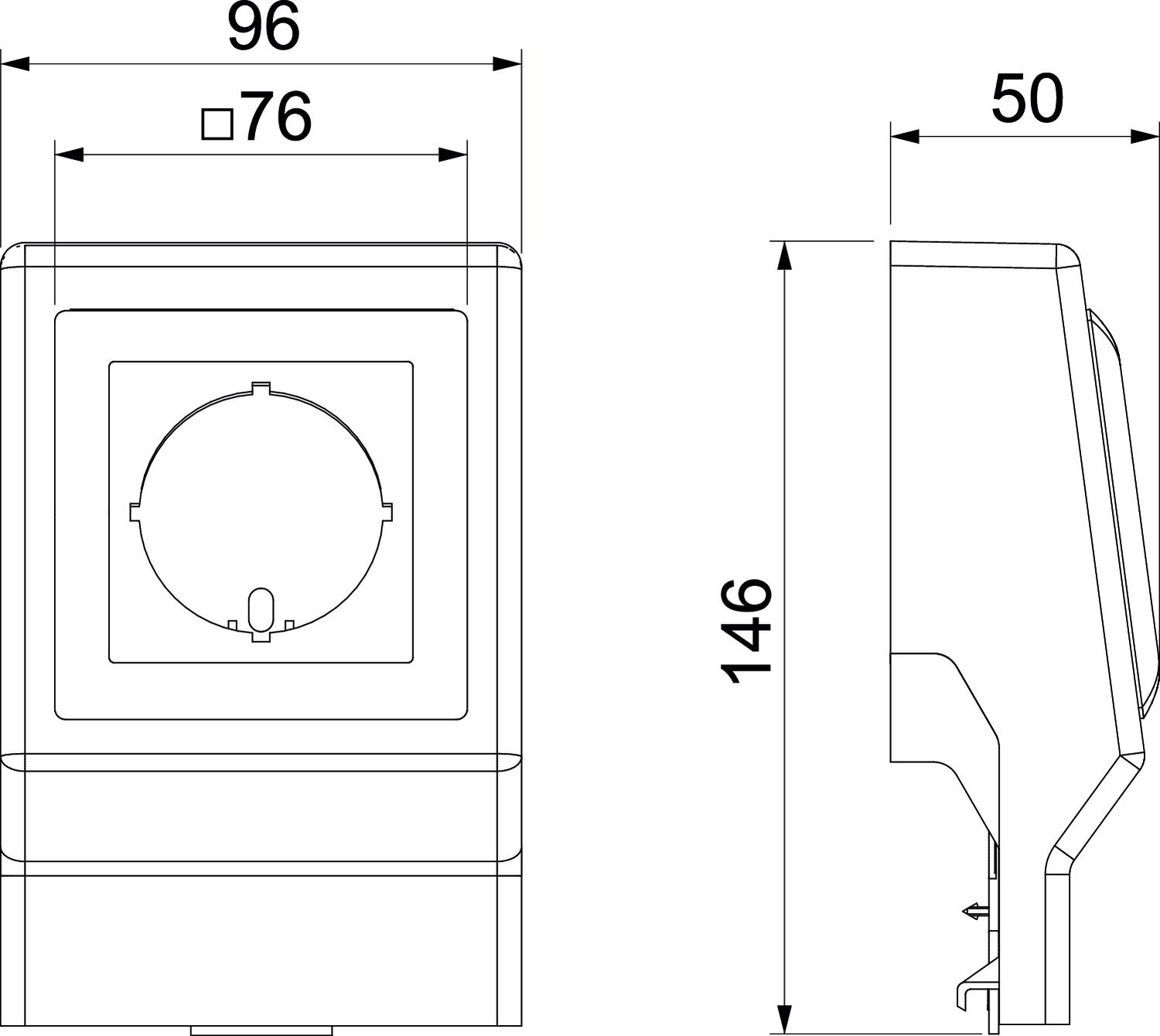

Accessory mounting type With central plate CO2 Footprint (GWP) Cradle-to-Gate 0,3897 kg CO2e / 1 Piece Colour Cream; RAL 9001 Equipment Without Halogen-free no Height 146 mm Length 50 mm Material Polyvinylchloride Number of units 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK06 Width 96 mm - All types
- Downloads
-
Data sheet SL ETler5070 cws / 6132239 , 0.22MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity SL ETler5070 cws / 6132239 , 0.10MB , pdfLabel approval VDE symbol approval, SL skirting trunking , 0.27MB , pdfMounting instructions SL, SL-L, SL-T skirting trunking , 4.60MB , pdfNo invitation to tender text is available for this product.
