Device support SL ETler5070
Item no. 6132237 | EAN 4012196720057
- Product description
-

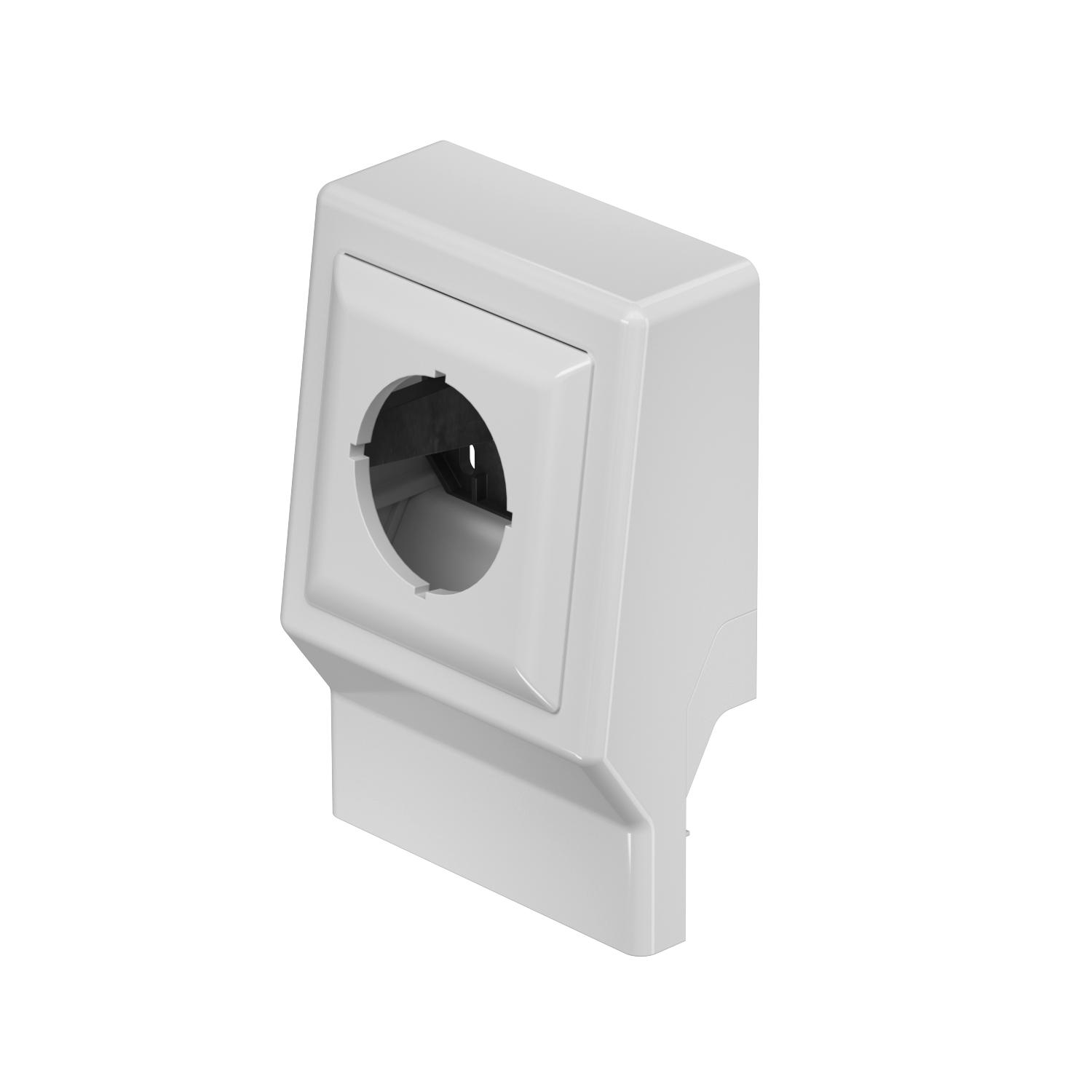

Product descriptionEmpty device support for skirting trunking for the installation of standard devices in support ring and support clamp form with 60 mm fastening track.
For snapping onto the cover of the trunking system.
-
- Technical data
-
Technical data

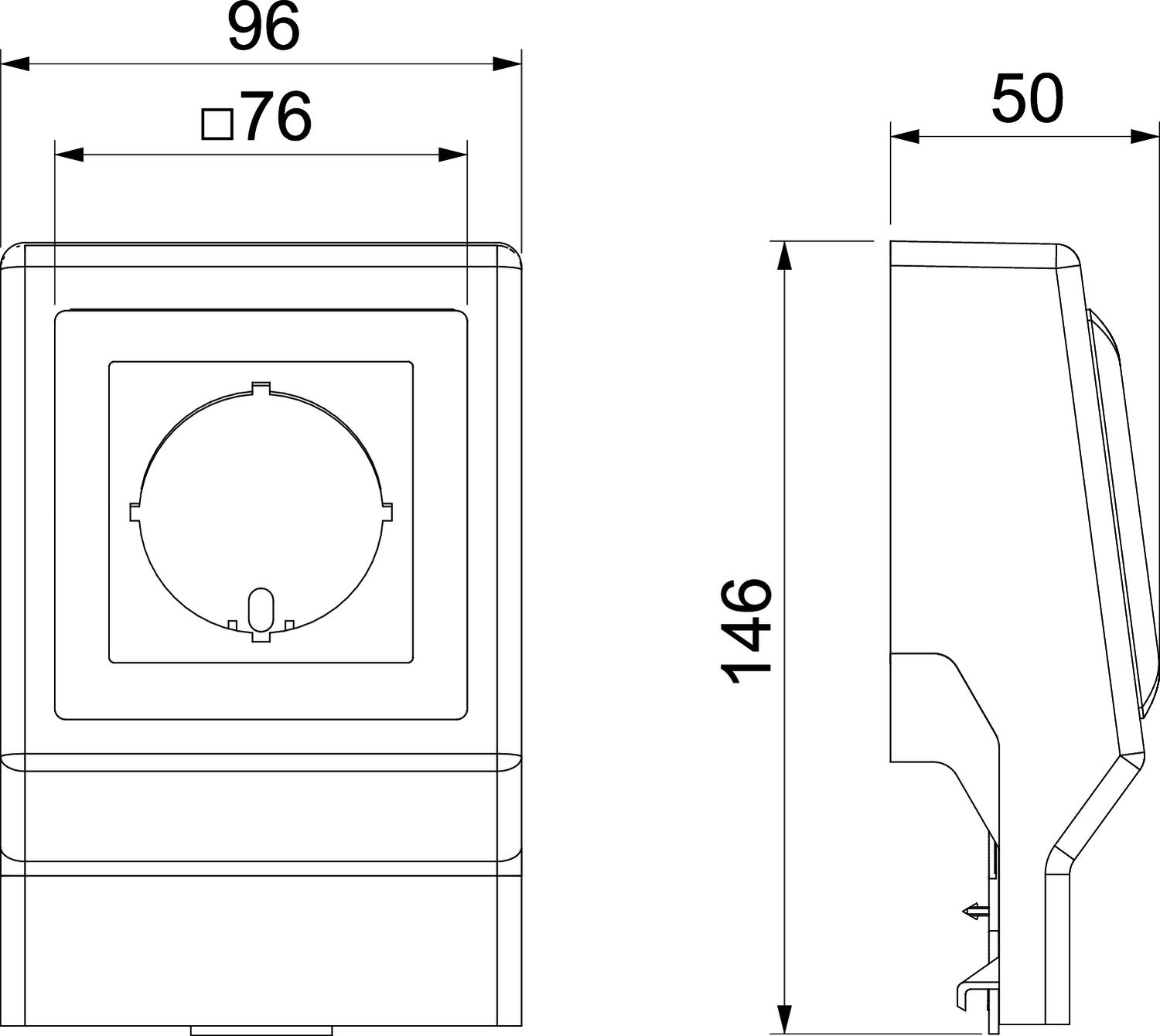

Accessory mounting type With central plate CO2 Footprint (GWP) Cradle-to-Gate 0,3871 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Decoration Without Equipment Without Halogen-free no Height 146 mm Length 50 mm Material Polyvinylchloride Number of units 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK06 Width 96 mm - All types
- Downloads
-
Data sheet SL ETler5070 lgr / 6132237 , 0.24MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity SL ETler5070 lgr / 6132237 , 0.10MB , pdfLabel approval VDE symbol approval, SL skirting trunking , 0.27MB , pdfNo invitation to tender text is available for this product.
