End clamp with spring for PV module mounting 46 | 25

End clamp with spring for PV module mounting

Item no. 5901092 | EAN 4012197434373

Item no. / Types

Height

For frame height min.

Product description

Product description

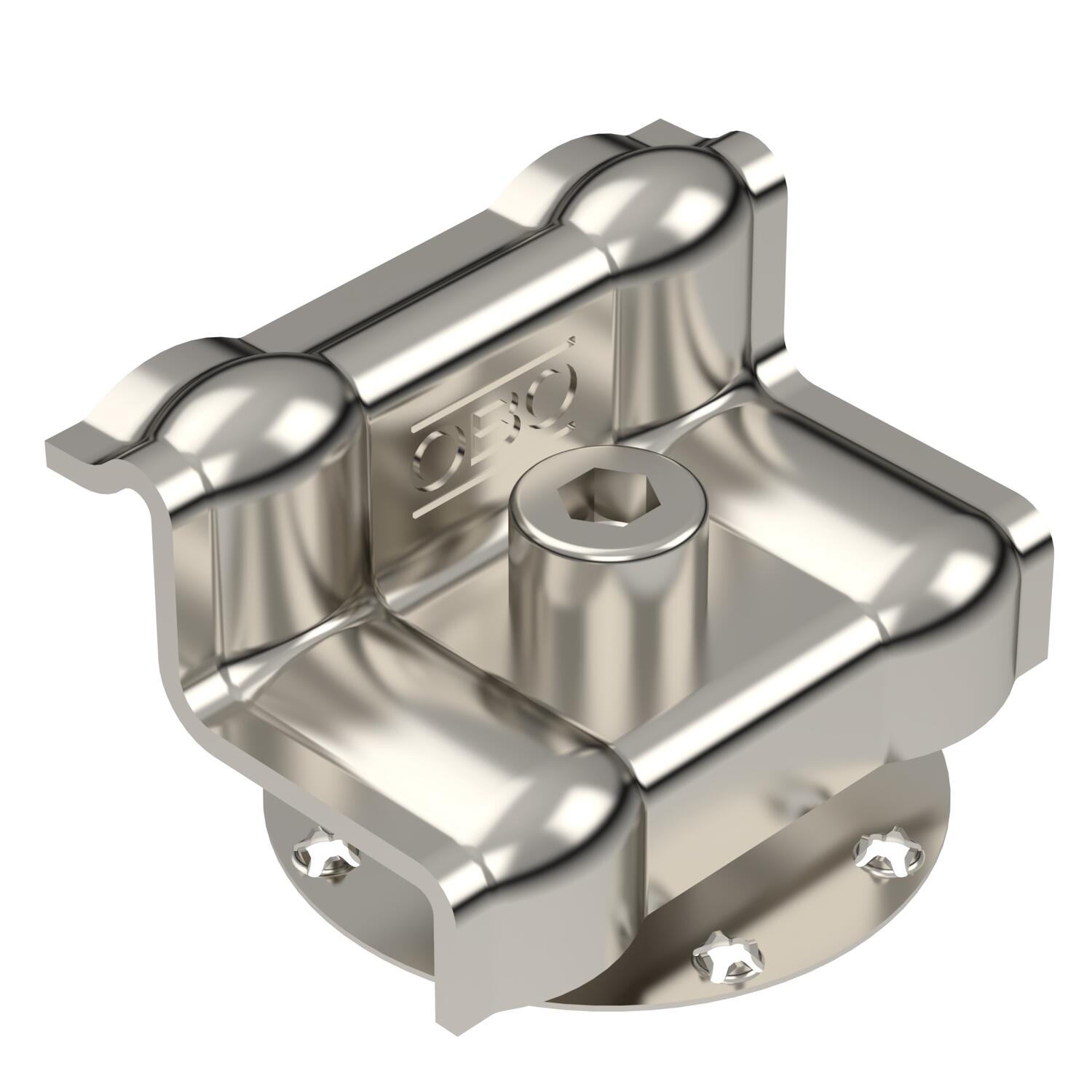

End clamp with spring for fastening photovoltaic modules on support profiles. Suitable for slot width 10 mm. Lockable fastening of the PV module with Allen key size 6.

Technical data

Technical data

Adjustable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,578 kg CO2e / 1 Piece
Colour	stainless steel

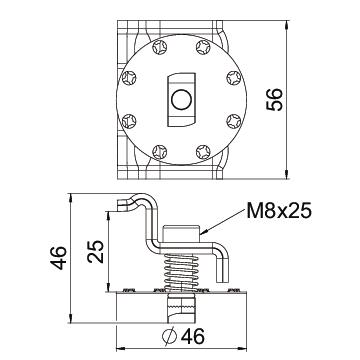

Depth	56 mm
Dimension	56x46x48
For frame height min.	25 mm

Height	46 mm
Material	Stainless steel 1.4301
Photovoltaic connection and fastening element version	End terminal
Width	46 mm
With module earthing	no

All types

All types

Types	Height	For frame height min.	Item no.	Quantity	SSU
KLE F 25 A2	46 mm	25 mm	5901092	piece	1 piece
KLE F 30 A2	51 mm	30 mm	5901093	piece	1 piece
KLE F 35 A2	56 mm	35 mm	5901094	piece	1 piece
KLE F 40 A2	61 mm	40 mm	5901095	piece	1 piece
