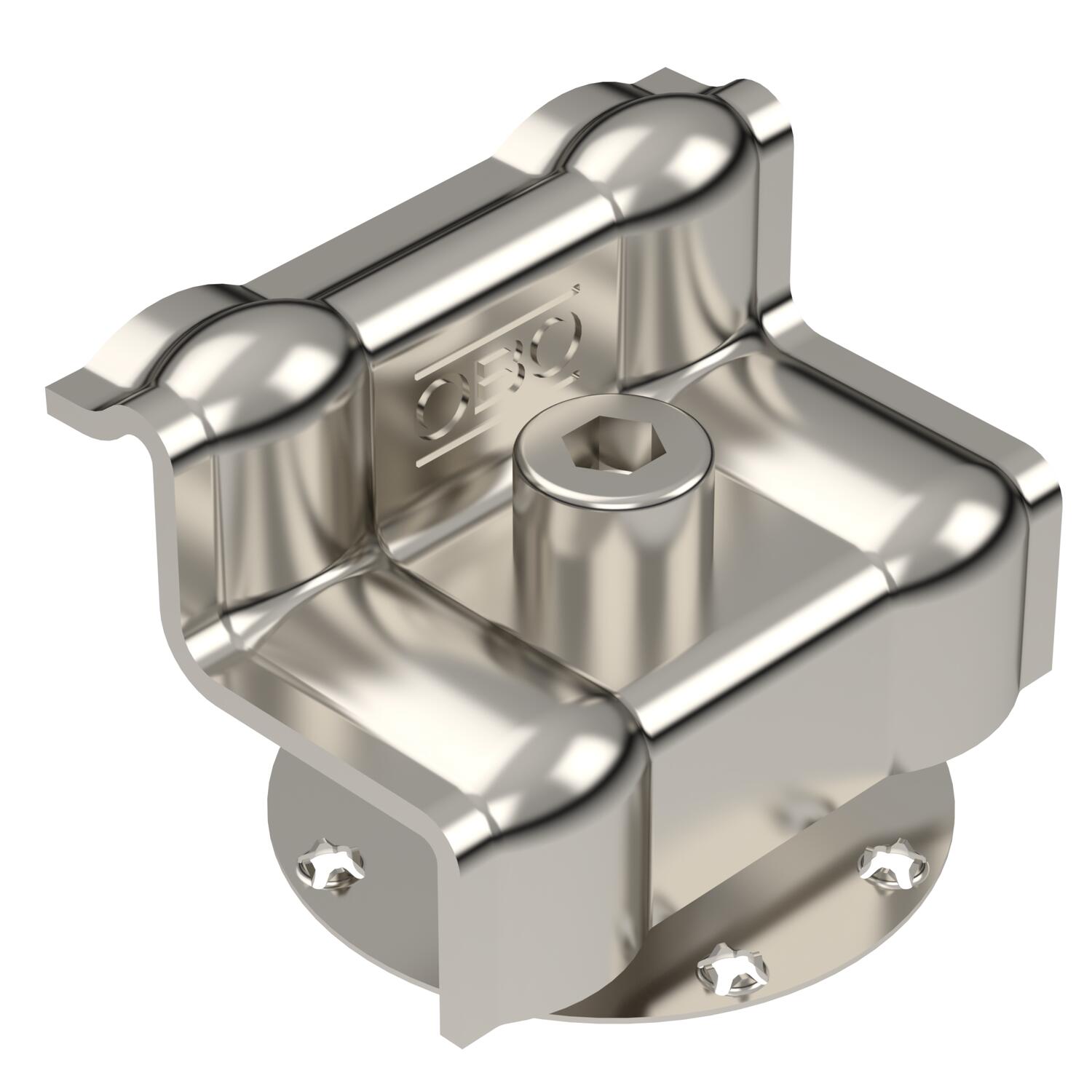

End clamp with spring for PV module mounting 51 | 30

End clamp with spring for PV module mounting

Item no. 5901093 | EAN 4012197434403

Item no. / Types

Height

For frame height min.

Product description

Product description

End clamp with spring for fastening photovoltaic modules on support profiles. Suitable for slot width 10 mm. Lockable fastening of the PV module with Allen key size 6.

Technical data

Technical data

Adjustable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,6111 kg CO2e / 1 Piece
Colour	stainless steel
Depth	56 mm

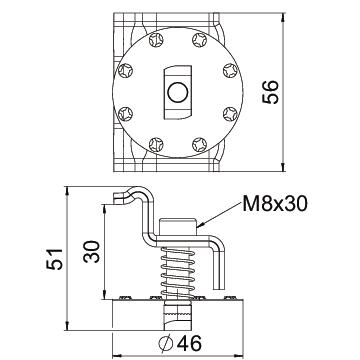

Dimension	56x46x53
For frame height min.	30 mm

Height	51 mm
Material	Stainless steel 1.4301
Photovoltaic connection and fastening element version	End terminal
Width	46 mm
With module earthing	no

All types

All types

Types	Height	For frame height min.	Item no.	Quantity	SSU
KLE F 25 A2	46 mm	25 mm	5901092	piece	1 piece
KLE F 30 A2	51 mm	30 mm	5901093	piece	1 piece
KLE F 35 A2	56 mm	35 mm	5901094	piece	1 piece
KLE F 40 A2	61 mm	40 mm	5901095	piece	1 piece
