Flush-mounted connection box 100
Item no. 2003118 | EAN 4012195023715
- Product description
-
Product description
Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 45 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.
• 4 side combination pipe entries of Ø 28.5 and 21.5 mm
• 8 side entries of Ø 21.5 mm
• 8 side entries for flat cables/ribbon cables
• 4 combination pipe entries of Ø 28.5 and 21.5 mm at the base
• 8 entries for flat cables/ribbon cables at the base
-
- Technical data
-
Technical data
Airtight no Colour Black Cover Not transparent Cover fastening Screwed Dimension 100x100x45 Entries 32 Entry from rear no Equipment Without Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Floor height, min. 47 mm Halogen-free no Impact-resistant yes Maintain electrical functions Without Material Polystyrene No. of entries 32 Nominal cross-section, min. 6 mm² Protection rating IP20 Rated voltage 400 V Sealable no Shape Square Support Without Type of housing penetration Pre-marking Type of insertion… NYM cables, data cables and corrugated pipes With bolts no With nail strap no With screening no Dimensions

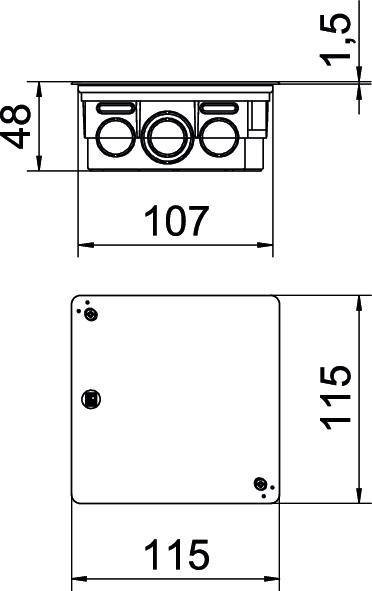

Dimension A 130 mm Dimension B 114 mm Dimension H 45 mm Dimension L 107 mm Height 45 mm Length 100 mm Width 100 mm - All types
