Note: This article is discontinued.
You can find the current article here: 6113360 / Internal corner hood, for Rapid 45-2 device installation trunking, type GK-53160

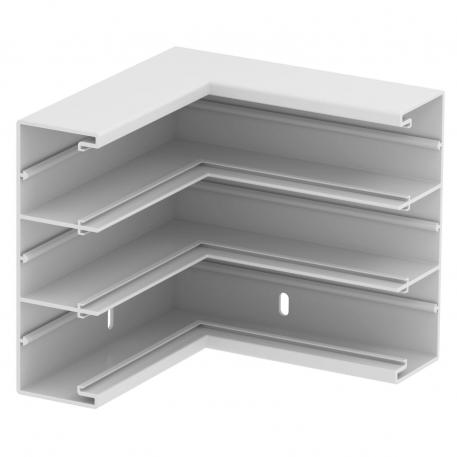

Internal corner, for device installation trunking Rapid 45-2 type GK-53160
Item no. 6116203 | EAN 4012195391661
- Product description
-
Product descriptionRigid 90° internal corner for changing the direction of the Rapid 45 three-compartment device installation trunking.
Modul 45 devices can be clicked on directly.
-
- Technical data
-
Technical data

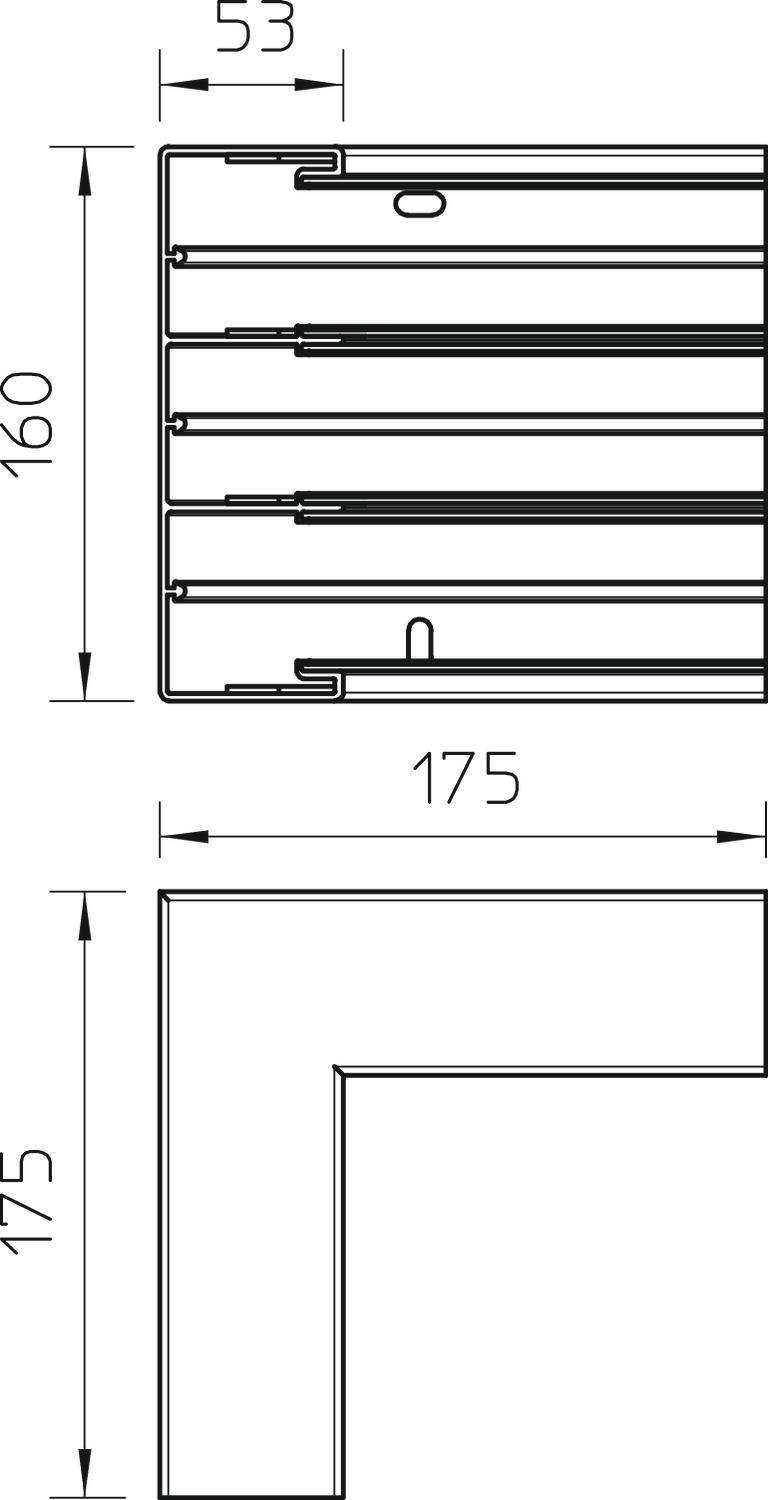

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 1,7523 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 45 mm Cover width 2 45 mm Cover width 3 45 mm Dimension 53x160mm Duct connector no for duct dimension 53 x 100 mm for duct width 100 mm for trunking height 53 mm Halogen-free no Height 53 mm Length 175 mm Material Polyvinylchloride Mounting perforation in base yes Number of covers 3 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film no Shape Symmetrical Version for Base Width 160 mm - All types
- Downloads
-
Data sheet GEK-KIS53160-3 / 6116203 , 0.23MB , pdfSafety data sheet GEK-KIS53160-3 / 6116203 , 0.02MB , pdfEU declaration of conformity GEK-KIS53160-3 / 6116203 , 0.10MB , pdfREACH Declaration of conformity GEK-KIS53160-3 / 6116203 , 0.12MB , pdfRoHS Declaration of conformity GEK-KIS53160-3 / 6116203 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfNo invitation to tender text is available for this product.
