Lower part plug-in junction box | 10 | IP30 | Light grey; RAL 7035
morepic-1 morepic-2

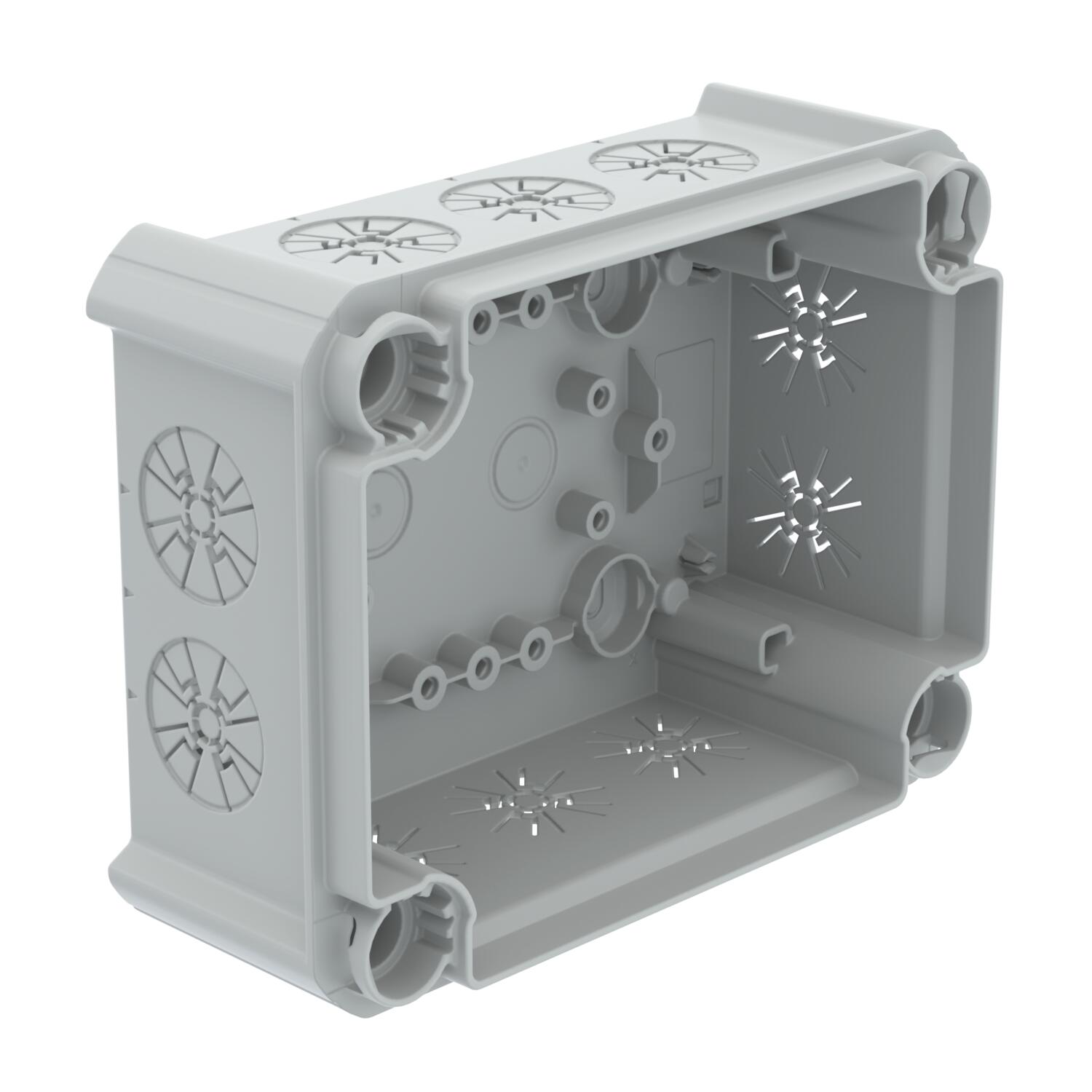

Lower part plug-in junction box

Item no. 2006024 | EAN 4012197462819

IP30
Product description
Product description
Pluggable lower part of junction box. Unequipped, without cover. Halogen-free material and UV-resistant. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • Nominal voltage 500 V
  • Packaging without plastic
Technical data

Technical data

Colour Light grey; RAL 7035
Cover Not transparent
Cover fastening Screwed

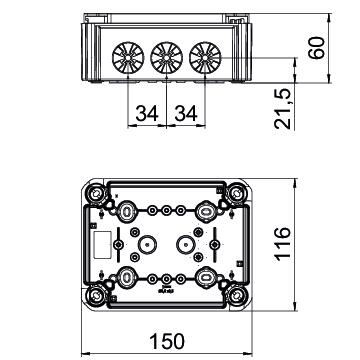

Dimension 150x116x62
Entry from rear yes
Equipment Without
Expandable yes
Explosion-tested version no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
for pipe diameter 16/19 mm
Halogen-free yes
Height 62 mm
Length 150 mm
Maintain electrical functions Without
Material Polypropylene
Max. Conductor cross-section 10 mm²
Measured insulation voltage Vi 500 V
Mounting type Wall/ceiling mounting
No. of entries 10
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Sealable yes
Shape Rectangular
Transparent lid no
Type of entry Cable/pipe
Type of housing penetration Pre-marking
Weatherproof no
Width 116 mm
with lid no
With screening no
All types

All types

Types No. of entries Protection rating Colour Item no. Quantity SSU
UT01 10 IP30 Light grey; RAL 7035 2006024
40 piece
UT01 SW - IP30 Graphite black; RAL 9011 2006216
40 piece
Downloads

Download

Download

EU declaration of conformity UT01 / 2006024 , 0.10MB , pdf
